JOHNSON CONTROLS
16
Form 201.47-ICOM1
Issue date: 17/11/2022
SECTION 2 - PRODUCT DESCRIPTION
Oil separators utilize no moving parts. Oil cooling is
accomplished by refrigerant leaving the eductor flash-
ing in the suction line which cools the oil, motor, and
compressor.
An integral liquid cooled, transistorized, PWM,
Variable Speed Drive (VSD) is controlled by the
chiller microprocessor control panel to start/stop, select
compressors to run, and select compressor speed.
Displacement Power Factor is 0. 95 at part or full load.
The chiller microprocessor communicates with the
VSD Logic Board using a 3-wire RS-485 opto cou-
pled data link. The VSD Logic Board runs the num-
ber of compressors required to meet the load and the
compressors to the speed requested by the chiller mi-
croprocessor.
The basic system control and VSD system
architecture is shown in Figure 2 on page 16.

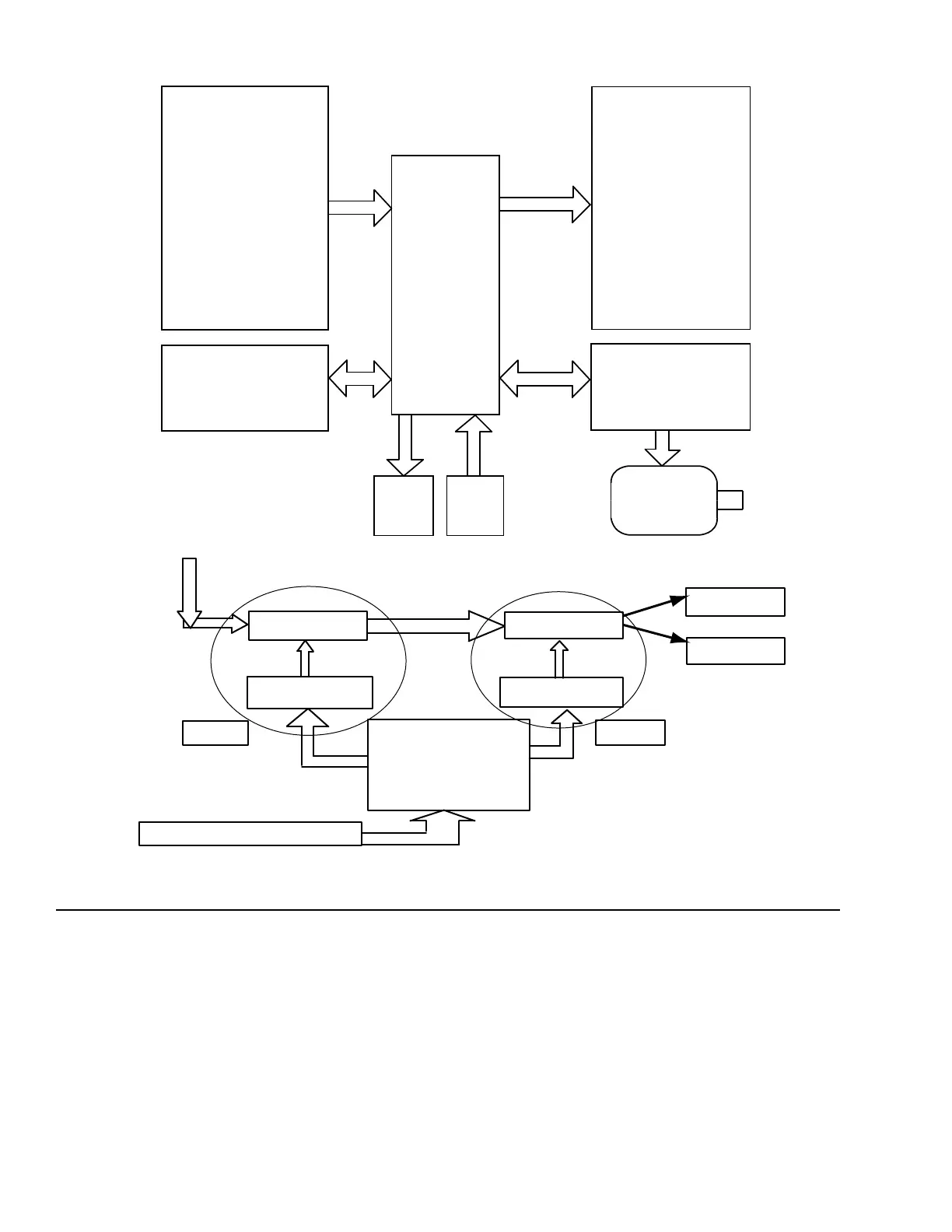

Figure 2 - Chiller control system
LD15028
Inputs
Pressure transducers
Temperature sensors
Switches
Liquid ow
High pressure
Start / stop
Level
Customer supplied
contacts
Control panel
Chiller control
board
Microprocessor
user interface
display and
keypad
Display
Keypad
Motor
Outputs
Relay output board
Solenoids
Contactors
Alarm
Pump
Compressor heater
Run status
Evaporator heater
VSD
VSD logic board
SCR trigger board
Power components
PWM (speed control)
Communications
Building automation
printer modem
LD15158
3 phase power line
AC/DC Rectier
Power Driver
IGBT Gate Driver
VSD Logic Board
Inverter
PWM Signal
Signal From Main Control Panel
Rectier
Compressor 1
Compressor 2
Rectier Controller
SCR Trigger Board
(IGBT)
To Next Page
