York YVAA User Manual

SECTION 5 - TECHNICAL DATA
JOHNSON CONTROLS
79
Form 201.47-ICOM1
Issue date: 17/11/2022
5
LD18587
Notes:
1. Contact your nearest Johnson Controls Sales O󰀩ce for weight data.
2. All isolator mounting holes are 19 mm.
3. Dimensions are in inches (mm).
Location
Isolator
Y-Dimen-
sion (All
YVAA
Models),
in. (mm)
Isolator X-Dimension listed by YVAA Model Designation, in. (mm)
0224/0782 0254/0894 0261/0921 0196/0686 0199/0699 0234/0824 0216/0756 0226/0796
1
1.7
(43)
5.5
(139)
5.5
(139)
5.5
(139)
5.5
(139)
5.5
(139)
5.5
(139)
9.4
(239)
9.4
(239)
2 42.6
(1081)
42.6
(1081)
42.6
(1081)
56.7
(1441)
42.6
(1081)
42.6
(1081)
82.2
(2089)
82.2
(2089)
3 104.6
(2658)
104.6
(2658)
104.6
(2658)
116.7
(2964)
104.6
(2658)
104.6
(2658)
137.0
(3480)
142.5
(3619)
4 180.8
(4592)
180.8
(4592)
180.8
(4592)
168.1
(4271)
180.8
(4592)
180.8
(4592)
219.6
(5579)
219.6
(5579)
5 216.2
(5492)
216.2
(5492)
216.2
(5492)
225.2
(5721)
216.2
(5492)
216.2
(5492)
291.1
(7395)
291.1
(7395)
6 278.4
(7072)
278.4
(7072)
278.4
(7072)
285.2
(7245)
278.4
(7072)
278.4
(7072)
7
8
Table 10 - Isolator selection and mounting locations (cont'd)

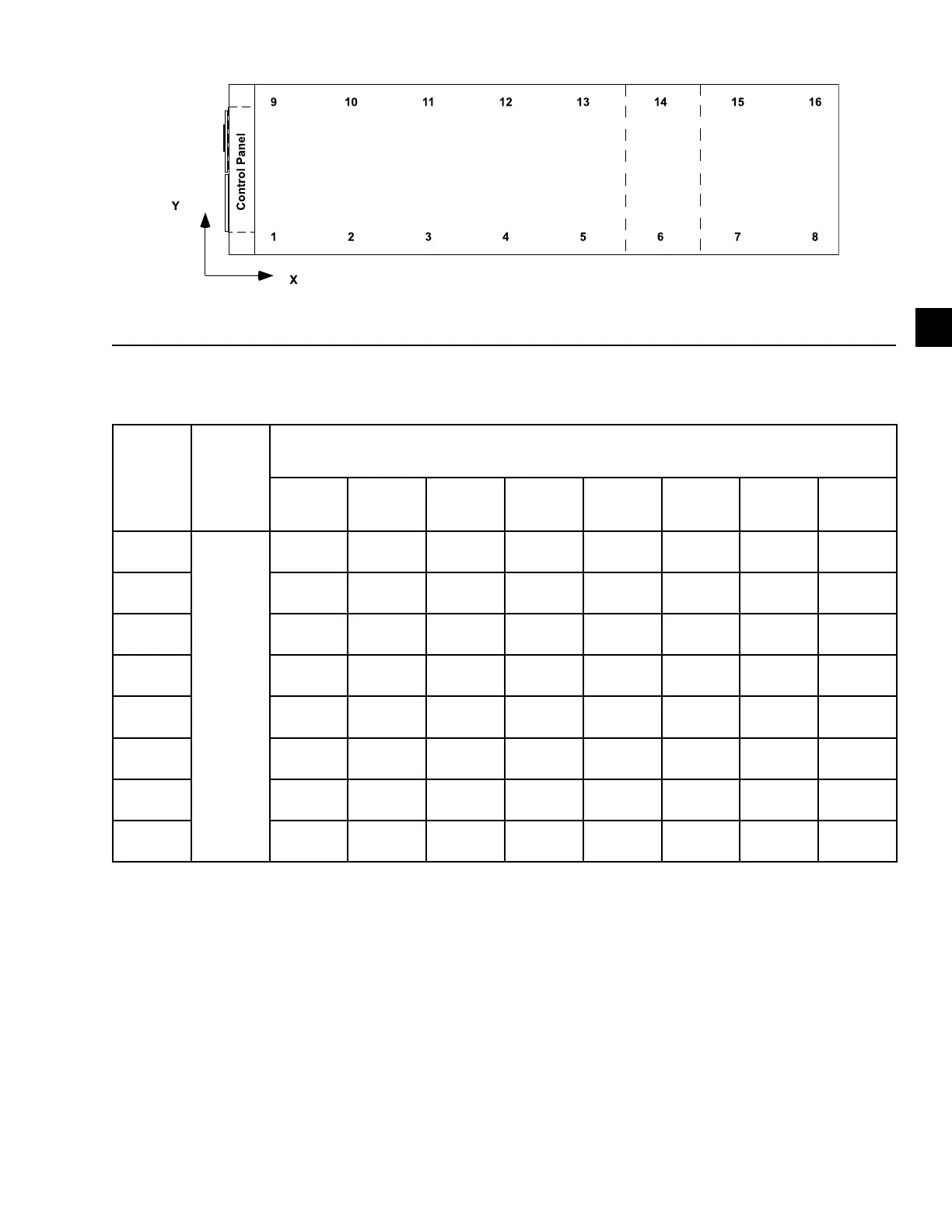

Figure 29 - Isolator selection and mounting locations
