York YVAA User Manual

JOHNSON CONTROLS
78
SECTION 5 - TECHNICAL DATA
Form 201.47-ICOM1
Issue date: 17/11/2022
LD18587
Notes:
1. Contact your nearest Johnson Controls Sales O󰀩ce for weight data.
2. All isolator mounting holes are 19 mm.
3. Dimensions are in inches (mm).
Table 10 - Isolator selection and mounting locations
Location
Isolator
Y-Dimen-
sion (All
YVAA
Models),
in. (mm)
Isolator X-Dimension listed by YVAA Model Designation, in. (mm)
0161/0571 0201/0701 0166/0586 0211/0741 0191/0671 0169/0599 0176/0616 0214/0754
1
1.7
(43)
5.6
(142)
5.6
(142)
5.6
(142)
5.6
(142)
5.6
(142)
5.5
(139)
5.5
(139)
5.5
(139)
2 56.9
(1444)
56.9
(1444)
56.9
(1444)
56.9
(1444)
56.9
(1444)
56.7
(1441)
42.6
(1081)
56.7
(1441)
3 116.8
(2967)
116.8
(2967)
116.8
(2967)
116.8
(2967)
116.8
(2967)
116.7
(2964)
104.6
(2658)
116.7
(2964)
4 197.4
(5014)
197.4
(5014)
169.8
(4312)
169.8
(4312)
169.8
(4312)
168.1
(4271)
180.8
(4592)
168.1
(4271)
5 237.5
(6032)
237.5
(6032)
237.5
(6032)
225.2
(5721)
216.2
(5492)
225.2
(5721)
6 285.2
(7245)
278.4
(7072)
285.2
(7245)
7
8

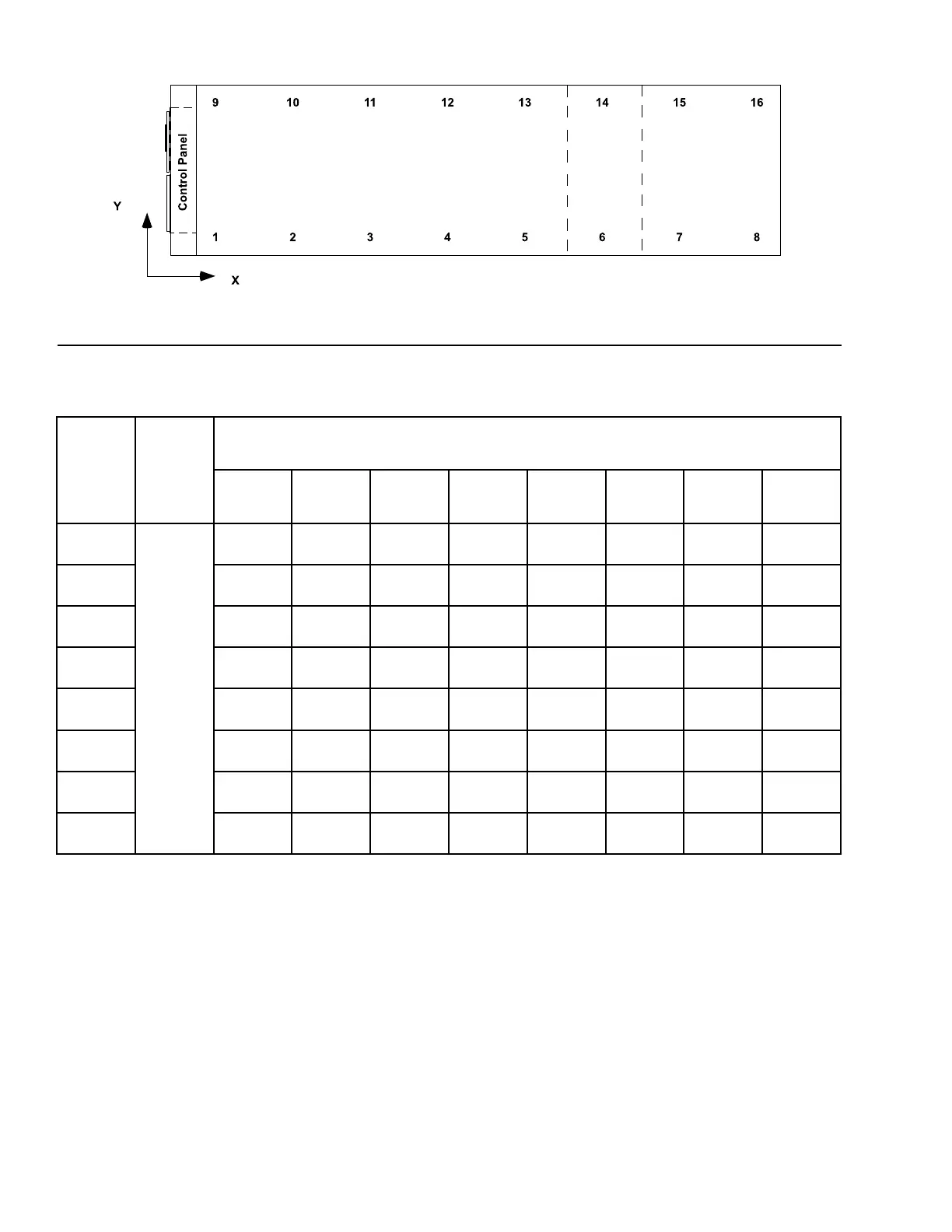

Figure 28 - Isolator selection and mounting locations

York YVAA Specifications

General

Refrigerant	R-134a
Condenser	Water-cooled
Compressor Type	Screw
Efficiency	High
Operating Voltage	380V/3/60Hz
Weight	Varies with model; consult factory
Dimensions	Varies with model; consult factory
