York YVAA User Manual

JOHNSON CONTROLS
70
SECTION 5 - TECHNICAL DATA
Form 201.47-ICOM1
Issue date: 17/11/2022
All dimensions - in. (mm)
YVAA
Model
A B C1 C2 D
E-nozzle
size
Water
volume gal
(l)
Minimum
chilled water
ow rate
GPM (L/S)
Maximum
chilled
water ow
rate GPM
(L/S)
0161/0571
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0201/0701
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0166/0586
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0211/0741
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0191/0671
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0169/0599
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0176/0616
152.9
(3883)
165.4
(4200)
24.0
(611)
0.6
(15)
45.9
(1165)
6
44
(170)
150
(9.5)
1300
(82)
0214/0754
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0224/0782
152.9
(3883)
165.4
(4200)
24.0
(611)
0.6
(15)
45.9
(1165)
6
44
(170)
150
(9.5)
1300
(82)
0254/0894
152.9
(3883)
165.4
(4200)
24.0
(611)
0.6
(15)
45.9
(1165)
6
44
(170)
150
(9.5)
1300
(82)
0261/0921
152.0
(3860)
166.4
(4226)
28.8
(733)
0.6
(15)
47.0
(1193)
8
52
(200)
270
(17)
1570
(99)
0196/0686
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0199/0699
152.9
(3883)
165.4
(4200)
24.0
(611)
0.6
(15)
45.9
(1165)
6
44
(170)
150
(9.5)
1300
(82)
0234/0824
152.9
(3883)
165.4
(4200)
24.0
(611)
0.6
(15)
45.9
(1165)
6
44
(170)
150
(9.5)
1300
(82)
0216/0756
109.2
(2773)
121.2
(3078)
32.2
(818)
0.6
(15)
45.5
(1155)
5
31
(120)
150
(9.5)
910
(57)
0226/0796
152.9
(3883)
165.4
(4200)
24.0
(611)
0.6
(15)
45.9
(1165)
6
44
(170)
150
(9.5)
1300
(82)
0259/0919
152.9
(3883)
165.4
(4200)
24.0
(611)
0.6
(15)
45.9
(1165)
6
44
(170)
150
(9.5)
1300
(82)
0266/0936
152.0
(3860)
166.4
(4226)
28.8
(733)
0.6
(15)
47.0
(1193)
8
52
(200)
270
(17)
1570
(99)
Table 6 - Standard two-pass, right side inlet/outlet evaporator connections
Note: The minimum and maximum ow rates listed here only represent the span of ows for a group of available evaporator options. Actual
chiller ow rates vary based on specic evaporator congurations. The application datasheet or nameplate must be referenced for specic ow
limits for every chiller.
Note: Minimum Chilled Water Flow Rate is for full load selections; Variable Primary Flow ratings as low as 50% of the minimum are
permitted. Glycol limits are higher. Contact your Johnson Controls Sales O󰀩ce for ratings and further information.

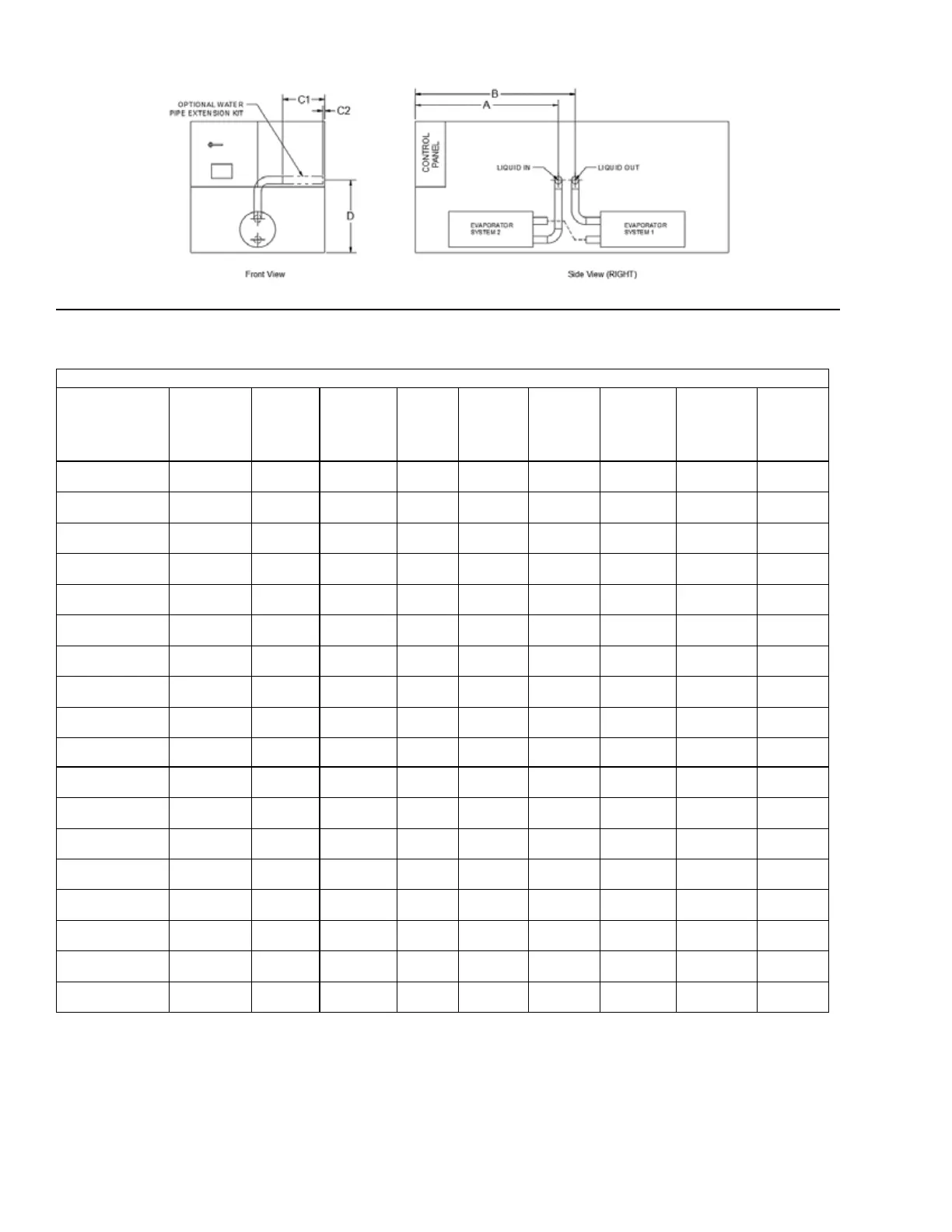

Figure 23 - Standard two-pass, right side inlet/outlet evaporator connections

York YVAA Specifications

General

Refrigerant	R-134a
Condenser	Water-cooled
Compressor Type	Screw
Efficiency	High
Operating Voltage	380V/3/60Hz
Weight	Varies with model; consult factory
Dimensions	Varies with model; consult factory
