SECTION 5 - TECHNICAL DATA
Form 201.47-ICOM1
Issue date: 17/11/2022
All dimensions - in. (mm)
YVAA
Model
A B C1 C2 D
E-nozzle
size
Water
volume gal
(l)
Minimum
chilled water
ow rate
GPM (l/s)
Maximum
chilled water
ow rate
GPM (l/s)
0459/1549
164.5
(4179)
203.1
(5160)
0.5
(12)
15.5
(394)
47.5
(1207)
8 59 (220) 360 (23) 1870 (118)
0491/1731
164.5
(4179)
203.1
(5160)
0.5
(12)
15.5
(394)
47.5
(1207)
8 59 (220) 360 (23) 1870 (118)
0361/1271
164.5
(4179)
203.1
(5160)
0.5
(12)
15.5
(394)
47.5
(1207)
8 56 (210) 360 (23) 1570 (99)
0391/1381
164.5
(4179)
203.1
(5160)
0.5
(12)
15.5
(394)
47.5
(1207)
8 56 (210) 360 (23) 1570 (99)
0456/1606
164.5
(4179)
203.1
(5160)
0.5
(12)
15.5
(394)
47.5
(1207)
8 59 (220) 360 (23) 1870 (118)
0399/1409
164.5
(4179)
203.1
(5160)
0.5
(12)
15.5
(394)
47.5
(1207)
8 56 (210) 360 (23) 1570 (99)
0469/1649
164.5
(4179)
203.1
(5160)
0.5
(12)
15.5
(394)
47.5
(1207)
8 59 (220) 360 (23) 1870 (118)
Note: The minimum and maximum ow rates listed here only represent the span of ows for a group of available evaporator options. Actual
chiller ow rates vary based on specic evaporator congurations. The application datasheet or nameplate must be referenced for specic ow
limits for every chiller.
Note: Minimum Chilled Water Flow Rate is for full load selections; Variable Primary Flow ratings as low as 50% of the minimum are
permitted. Glycol limits are higher. Contact your Johnson Controls Sales O󰀩ce for ratings and further information.
Table 8 - Standard two-pass left side inlet/outlet connections

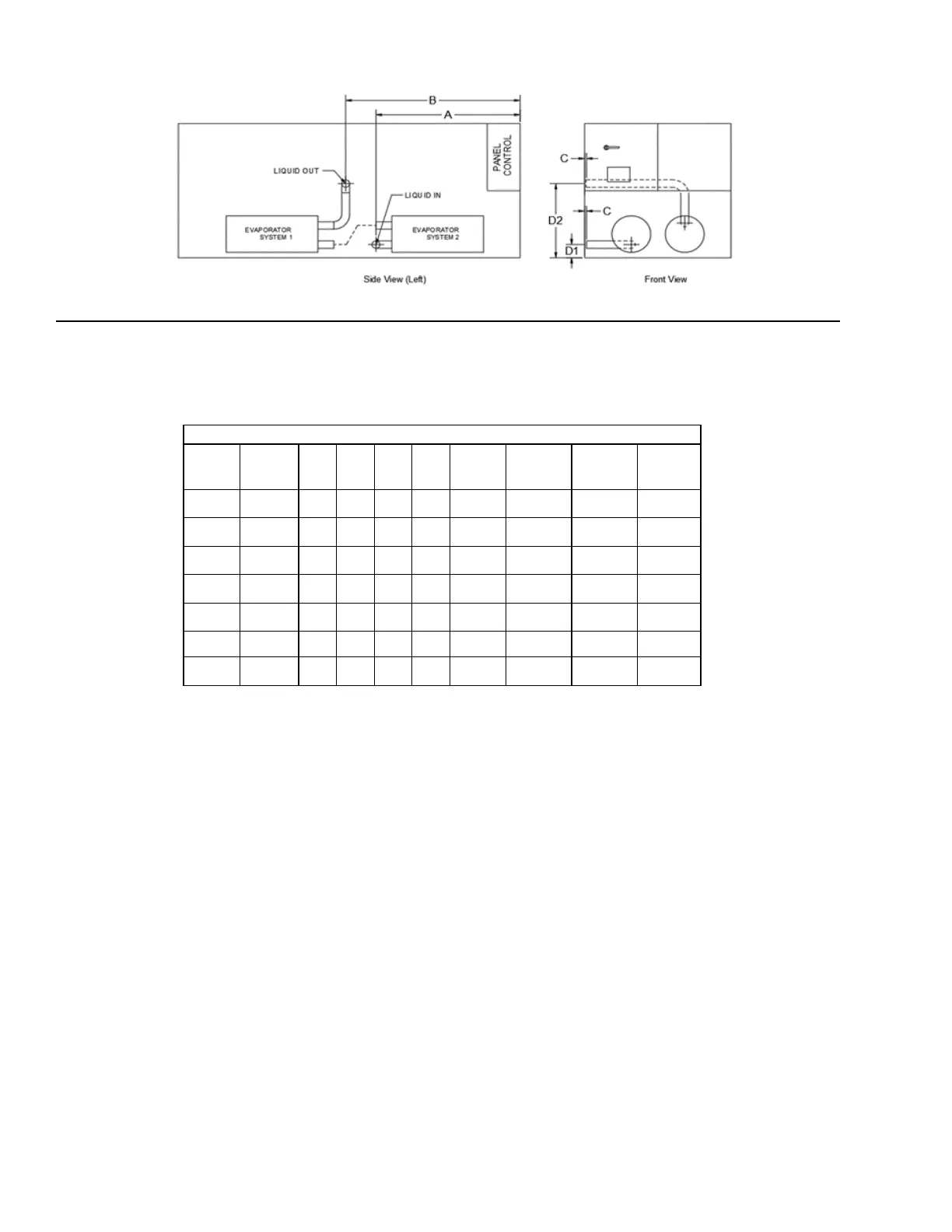

Figure 25 - Standard two-pass left side inlet/outlet connections
