York YVAA User Manual

SECTION 5 - TECHNICAL DATA
JOHNSON CONTROLS
87
Form 201.47-ICOM1
Issue date: 17/11/2022
5
LD18587
Table 10 - Isolator selection and mounting locations (cont'd)
Location
Isolator
Y-Dimen-
sion (All
YVAA
Models),
in. (mm)
Isolator X-Dimension listed by YVAA Model Designation,
in. (mm)
0361/1271 0391/1381 0456/1606 0399/1409 0469/1649
9
86.7
(2202)
9.5
(242)
9.5
(242)
9.5
(242)
9.5
(242)
9.5
(242)
10 82.3
(2091)
82.3
(2091)
82.3
(2091)
82.3
(2091)
82.3
(2091)
11 142.6
(3622)
142.6
(3622)
142.6
(3622)
142.6
(3622)
142.6
(3622)
12 219.7
(5581)
219.7
(5581)
219.7
(5581)
219.7
(5581)
219.7
(5581)
13 300.1
(7621)
300.1
(7621)
300.1
(7621)
300.1
(7621)
300.1
(7621)
14 422.1
(10,721)
422.1
(10,721)
422.1
(10,721)
422.1
(10,721)
421.8
(10,712)
15 503.5
(12,789)
16 585.1
(14,861)
Notes:
1. Contact your nearest Johnson Controls Sales O󰀩ce for weight data.
2. All isolator mounting holes are 19 mm.
3. Dimensions are in inches (mm).

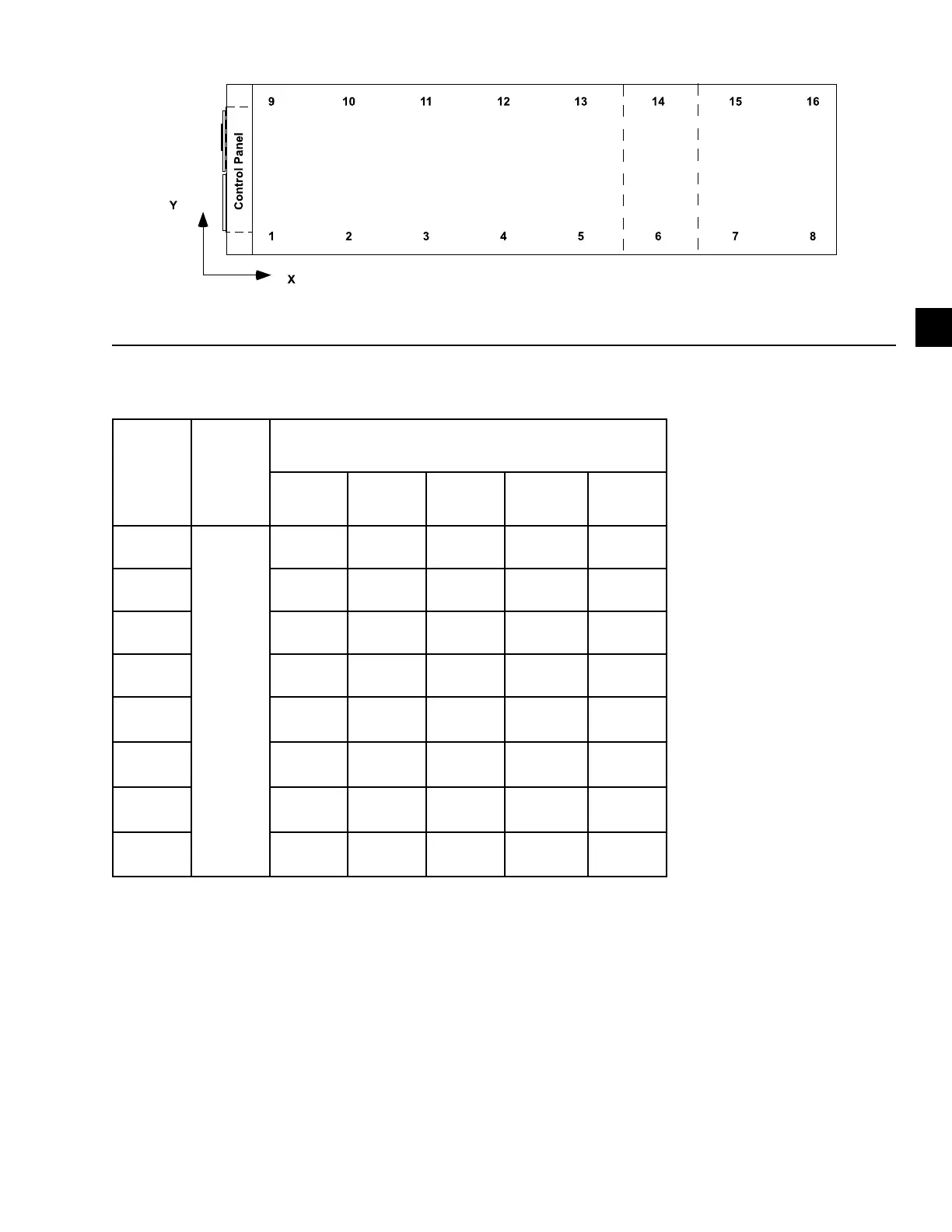

Figure 37 - Isolator selection and mounting locations
