York YVAA User Manual

SECTION 5 - TECHNICAL DATA
JOHNSON CONTROLS
89
Form 201.47-ICOM1
Issue date: 17/11/2022
5
Elastomeric isolator specifications
LD17304
CD
CD
HF
HF
BT
BT
AL
L
AL
L
W
W
DW
DW
MOLDED
DURULENE
MOLDED
DURULENE
R = 0.280 Slot
Typ 2 Places
Ø = AD Thru
Typ 2 Places
Model P/N
Dimension data (in.)
L W HF AL AD BT CD DW
Type A 029-25335-001
(434002)
5.50
(139.7
3.38
(85.85)
2.88
(73.15)
4.13
(104.90)
0.56
(14.22)
0.25
(6.35)
1/2-13 UNC X 1
(M27 X 3)
2.50
(63.50)
Type B 029-25335-002
(434004)
Type B 029-25335-004
(434005)
6.25
(158.75)
4.63
(117.6)
2.75
(69.85)
5.00
(127.00)
0.56
(14.22)
0.38
(9.65)
1/2-13 UNC X 1
(M27 X 3)
3.00
(76.20)
Model P/N Isolator color Weight range (lb) Weight range (kg)
029-25335-001
(434002)
Charcoal Up to 825 Up to 374
029-25335-002
(434004)
Brick red 826–1688 375–766
029-25335-004
(434005)
Charcoal 1689–4000 767–1814

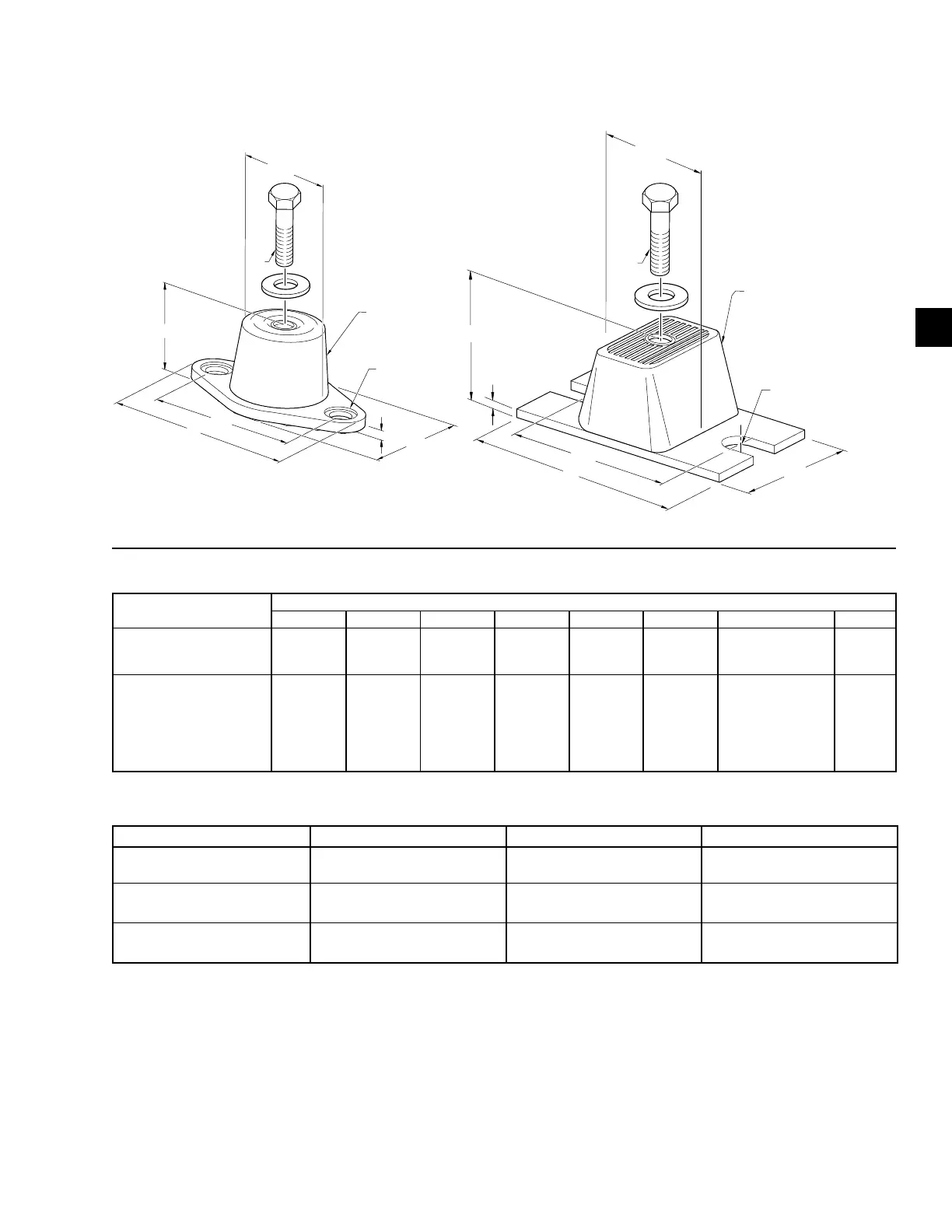

Figure 39 - Elastomeric isolator specifications
Table 11 - Elastomeric dimensions
Table 12 - Elastomeric weights

York YVAA Specifications

General

Refrigerant	R-134a
Condenser	Water-cooled
Compressor Type	Screw
Efficiency	High
Operating Voltage	380V/3/60Hz
Weight	Varies with model; consult factory
Dimensions	Varies with model; consult factory
