ABB ACS355 series User Manual

30 Operation principle and hardware description

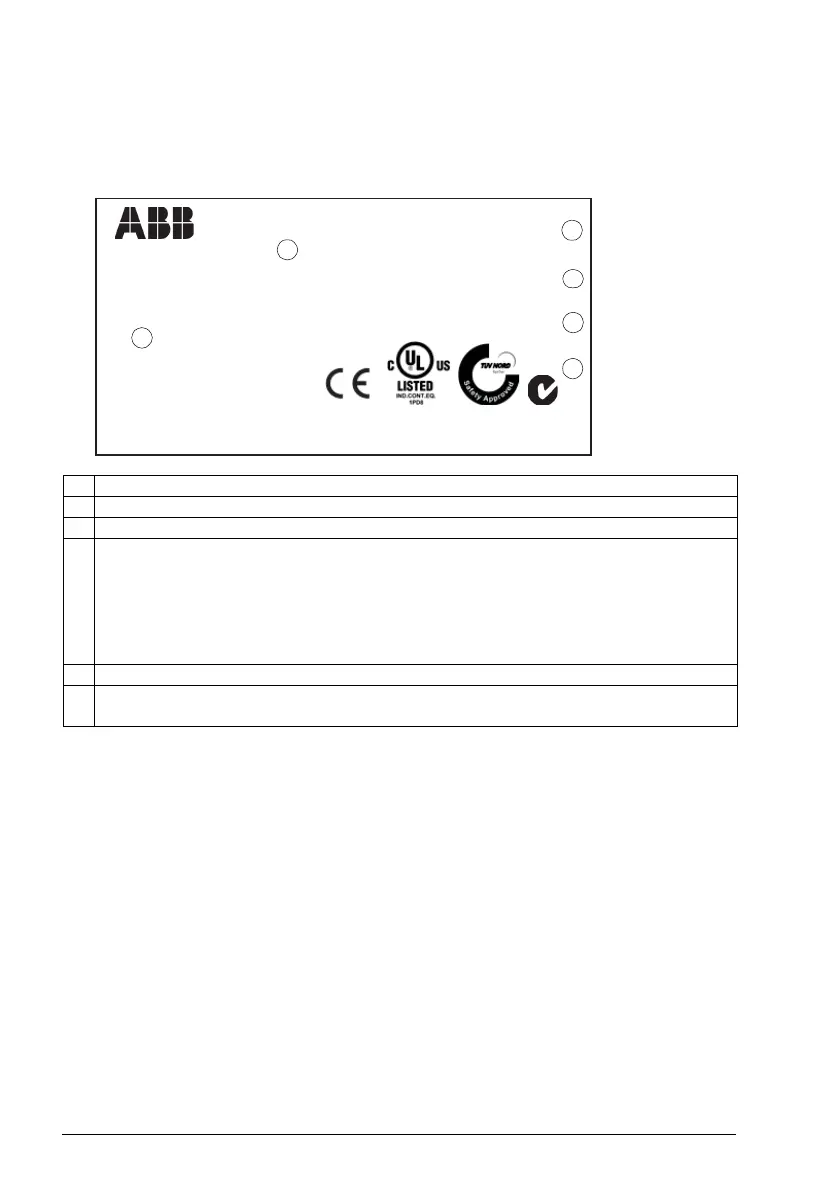

Type designation label
The type designation label is attached to the left side of the drive. An example label
and explanation of the label contents are shown below.
 ACS355-03E-08A8-4
IP20 / UL Open type lllllllllllllllllllllllllllllllllllllll
UL Type 1 with MUL1 option S/N MYYWWRXXXX
PN 4 kW (5 HP)
llllllllllllllllllllllllllllllllllllllll
3AUA00000XXXXU1
 3~400 V / 480 V
I1 14A/11A
I1
with ext. choke
7.7 A / 6.4A
f1 48…63 Hz
U2 3~0…U1 V
I2 8.8 A (150% 1/10 min)
f2 0… Hz
N713
RoHS
1 Type designation, see section Type designation key on page 31
2 Degree of protection by enclosure (IP and UL/NEMA)
3 Nominal ratings, see section Ratings on page 374.
4 Serial number of format MYYWWRXXXX, where
M: Manufacturer
YY: 10, 11, 12, … for 2010, 2011, 2012, …
WW: 01, 02, 03, … for week 1, week 2, week 3, …
R: A, B, C, … for product revision number
XXXX: Integer starting every week from 0001
5 ABB MRP code of the drive
6 CE marking and C-Tick, C-UL US, RoHS and TÜV NORD marks (the label of your drive
shows the valid markings)
5
6
4
3
2
1

ABB ACS355 series Specifications

General

Power Range	0.37 to 22 kW
Protection Class	IP20
Output Frequency	0 to 500 Hz
Braking Chopper	Built-in
Control Method	Scalar control, Vector control
Ambient Temperature	-10 to +50 °C
Communication Protocols	Modbus, CANopen
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
Cooling Method	Air-cooled
Number of Phases	3-phase
