Control panels 105
 I/O settings mode
In the I/O settings mode, you can:
• check the parameter settings related to any I/O terminal
• edit the parameter setting. For example, if “1103: REF1” is listed under Ain1
(Analog input 1), that is, parameter 1103
REF1 SELECT has value AI1, you can
change its value to, eg, AI2. You cannot, however, set the value of parameter
1106 REF2 SELECT to AI1.
• start, stop, change the direction and switch between local and remote control.

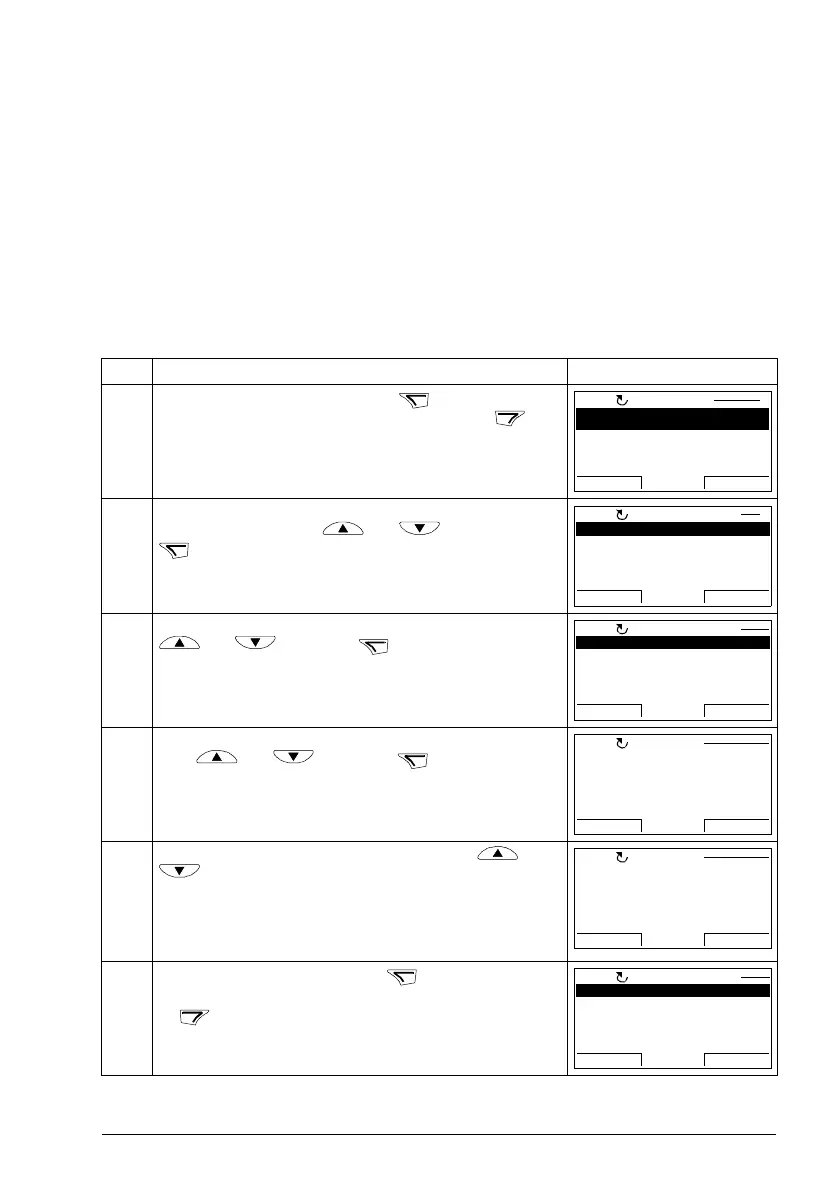

How to edit and change parameter settings related to I/O terminals
Step Action Display
1. Go to the Main menu by pressing if you are in the
Output mode, otherwise by pressing repeatedly until
you get to the Main menu.
2. Go to the I/O settings mode by selecting I/O SETTINGS
on the menu with keys and , and pressing
.
3. Select the I/O group, eg, DIGITAL INPUTS, with keys
and , and press . After a brief pause, the
display shows the current settings for the selection.
4. Select the setting (line with a parameter number) with
keys and , and press .
5. Specify a new value for the setting with keys and
.
Pressing the key once increments or decrements the
value. Holding the key down changes the value faster.
Pressing the keys simultaneously replaces the displayed
value with the default value.
6. • To save the new value, press .
• To cancel the new value and keep the original, press
.
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT
ENTER00:00
LOC
MAIN MENU 1
ENTER
DIGITAL INPUTS (DI)
ANALOG INPUTS (AI)
RELAY OUTPUTS (ROUT)
ANALOG OUTPUTS (AOUT)
PANEL
EXIT
SEL00:00
LOC
I/O SETTINGS 1
SEL
-DI1-
1001:START/STOP (E1)
-DI2-
1001:DIR (E1)
-DI3-
EXIT
00:00
LOC
I/O SETTINGS
EDIT
1001 EXT1 COMMANDS
CANCEL SAVE00:00
LOC
[2]
DI1,2
PAR EDIT
1001 EXT1 COMMANDS
CANCEL SAVE00:00
LOC
[3]
DI1P,2P
PAR EDIT
SAVE
CANCEL
-DI1-
1001:START PLS(E1)
-DI2-
1001:STOP PLS (E1)
-DI3-
EXIT 00:00
LOC
I/O SETTINGS
