ABB ACS355 series User Manual

Control panels 99
 Fault logger mode
In the Fault logger mode, you can:
• view the drive fault history of maximum ten faults (after a power off, only the three
latest faults are kept in the memory)
• see the details of the three latest faults (after a power off, the details of only the
most recent fault is kept in the memory)
• read the help text for the fault
• start, stop, change the direction and switch between local and remote control.
How to view faults

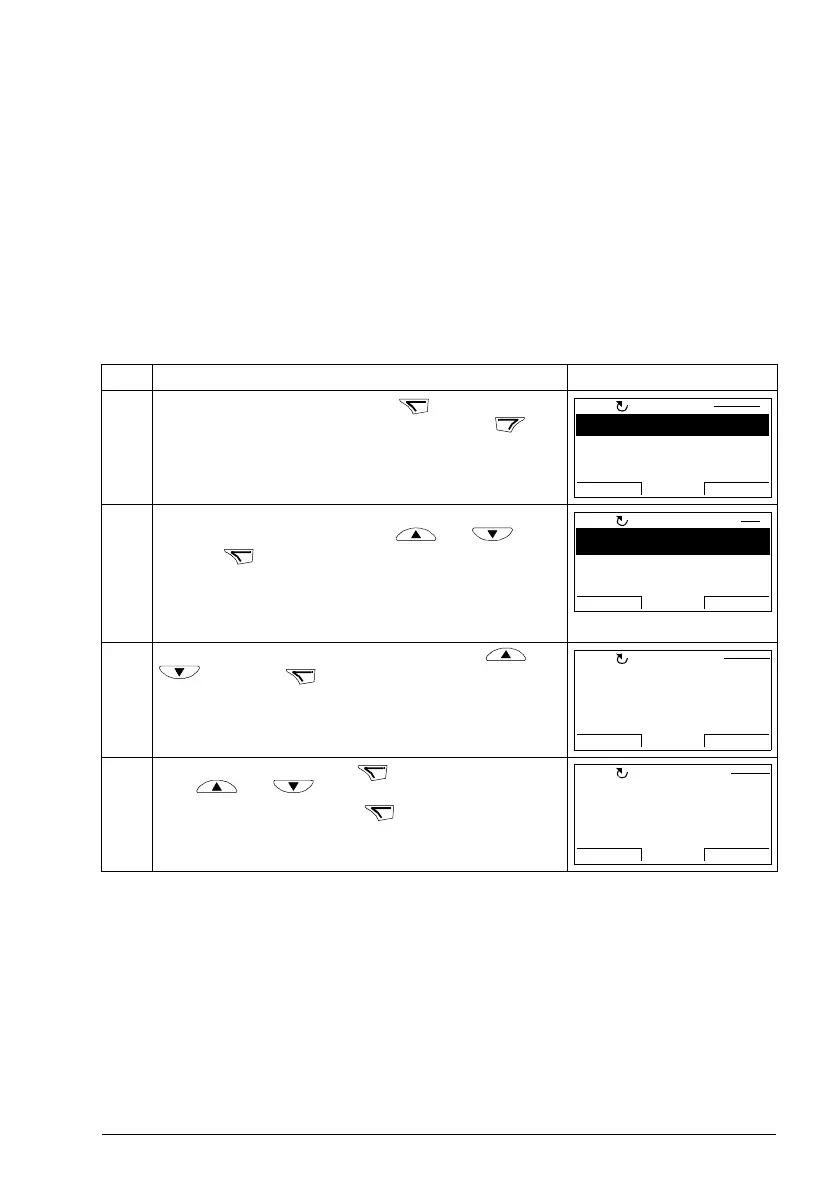

Step Action Display
1. Go to the Main menu by pressing if you are in the
Output mode, otherwise by pressing repeatedly until
you get to the Main menu.
2. Go to the Fault logger mode by selecting FAULT
LOGGER on the menu with keys and , and
pressing . The display shows the fault log starting
with the latest fault.
The number on the row is the fault code according to
which the causes and corrective actions are listed in
chapter Fault tracing on page 349.
3. To see the details of a fault, select it with keys and
, and press .
4. To show the help text, press . Scroll the help text with
keys and .
After reading the help, press to return to the
previous display.
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
LOC
MAIN MENU 1
ENTER
10: PANEL LOSS
19.03.05 13:04:57
6: DC UNDERVOLT
7: AI1 LOSS
EXIT DETAIL
00:00
LOC
FAULT LOGGER 1
DETAIL
DI STATUS AT FLT
00000 bin
FAULT TIME 1
13:04:57
FAULT TIME 2
EXIT
DIAG00:00
LOC
PANEL LOSS
DIAG
OK
Check: comm lines
and connections,
parameter 3002,
parameters in groups
10 and 11.
EXIT
OK00:00
LOC
DIAGNOSTICS
