7-C-14 Chapter 7: Gas Analyzer Configuration 42/24-10 EN Rev. 9
Configuring Profibus
Menu Path
MENU → Configure → System → Network → Profibus

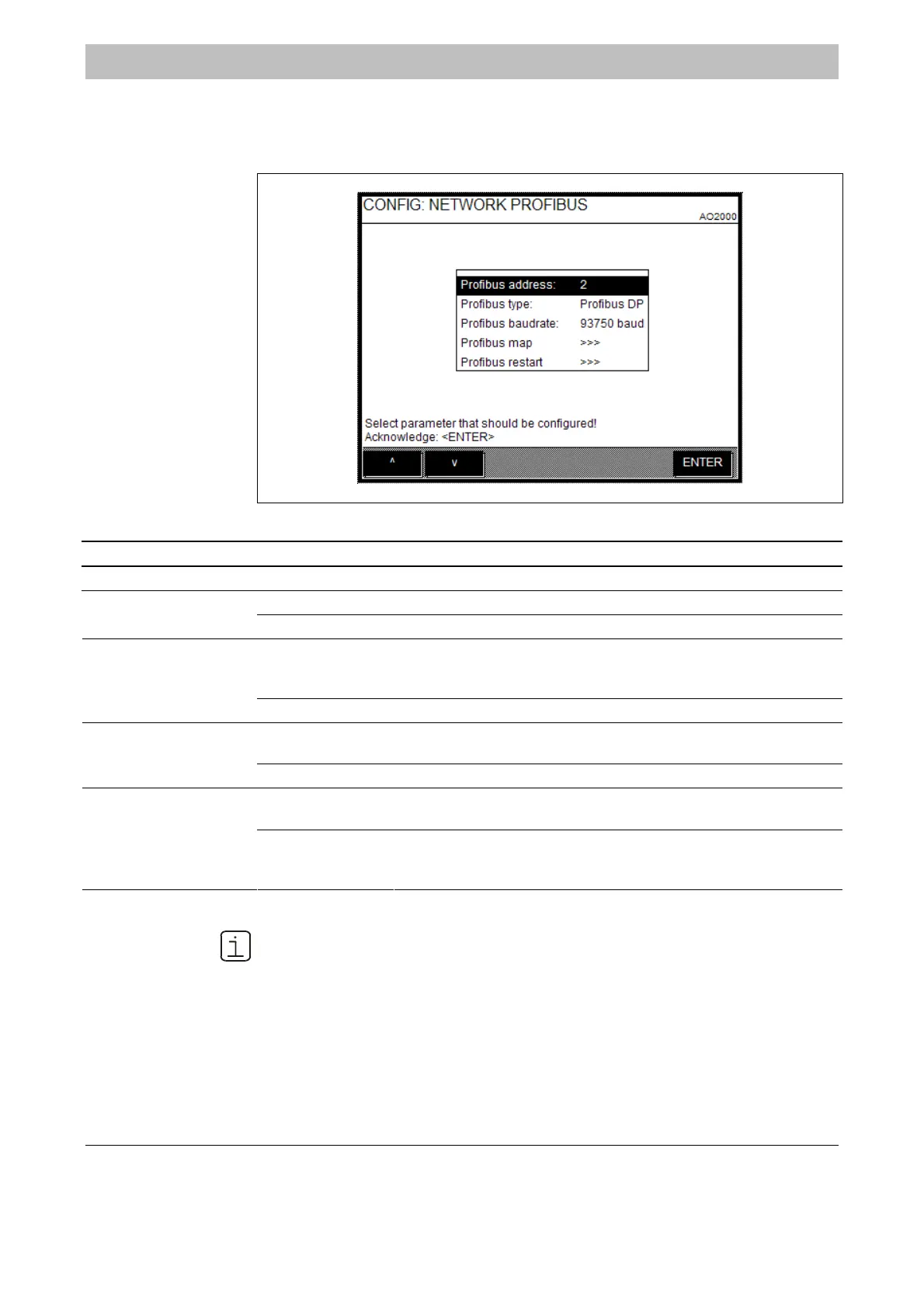

Figure 7-C-4
Profibus
Configuration
Parameter Selection
Profibus address 1 to 12 6
Profibus DP Connection to the RS485 interface Profibus type
Profibus PA Connection to the MBP interface (non-intrinsically safe)
RS485 interface automatically,
9600 Baud, 19200 Baud, 93750 Baud, 187.5 KBaud,
500 KBaud, 1500 KBaud, 3000 KBaud, 6000 KBaud
Profibus baudrate
MBP interface set to 31250 Baud
Profibus inputs Measured values, Bus analog outputs, Analog inputs, Analog
outputs, Digital inputs, Bus digital outputs, Digital outputs
Profibus map
Profibus outputs Bus analog inputs, Bus digital inputs
Warm start With Warm start the Profibus stack is reset, comparable with a
power off/on.
Profibus restart
Cold start With Cold start, all the parameters which are stored in the
Profibus stack as store parameters are reset to the default
value.
For additional Profibus information see the “AO2000 Profibus DP/PA Interface”
technical bulletin (Publication No. 30/24-315 EN).
