ABB Advance Optima magnos206 User Manual

3-10 Chapter 3: Gas Line Connection 42/24-10 EN Rev. 9

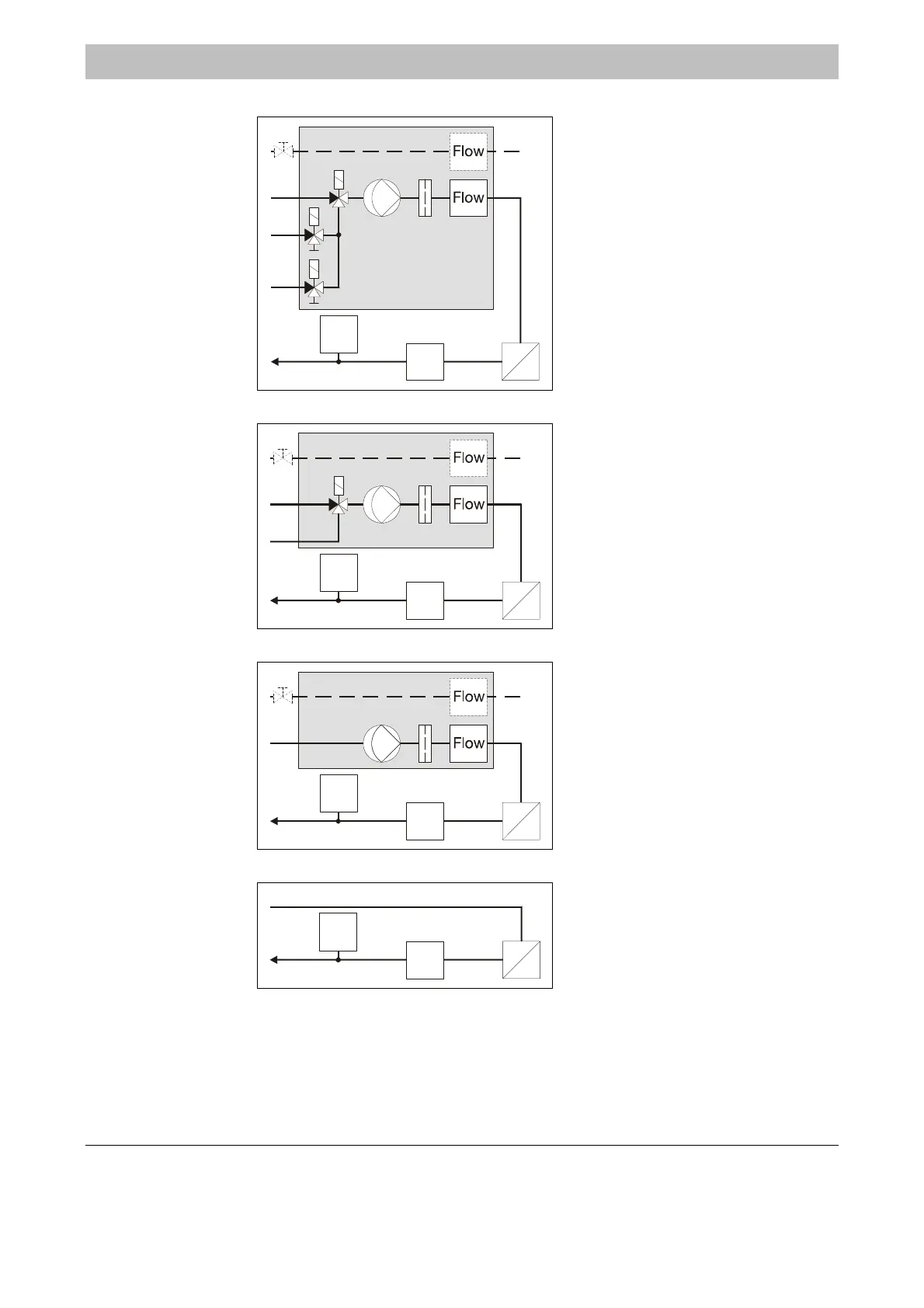

Gas Diagrams
Figure 3-10
Analyzer Module and
Gas Module with
3 Solenoid Valves
O
2
P
MG
NG
EG
E
c
opt.
Gas Module
Test gas connection for
Caldos27,
Magnos206,
Magnos27,
Limas11 without calibration cells,
Uras26 without calibration cells
Option: Flow monitoring, e.g. for
flowing reference gas or purge gas
(external needle valve required)
Figure 3-11
Analyzer Module and
Gas Module with
1 Solenoid Valve
O
2
P
MG
NG/
EG
E
c
opt.
Gas Module
Test gas connection for
Caldos27 with single-point calibration,
Magnos206 with single-pt. calibration,
Limas11 with calibration cells,
Uras26 with calibration cells
Option: Flow monitoring, e.g. for
flowing reference gas or purge gas
(external needle valve required)
Figure 3-12
Analyzer Module and
Gas Module without
Solenoid Valves
O
2
P
MG
E
c
opt.
Gas Module
External test gas connection for
Caldos27, Magnos206, Magnos27,
Limas11, Uras26
Option: Flow monitoring, e.g. for
flowing reference gas or purge gas
(external needle valve required)
Figure 3-13
Analyzer Module
without Gas Supply
O
2
P
M
G
E
c
Caldos25, Caldos27, Magnos206,
Magnos27, Limas11, Uras26 without
gas supply
MG Sample Gas
NG Zero gas
EG Span Gas
Flow Flow Monitor
O
2
Oxygen Sensor (Option)
P Pressure Sensor in Analyzer Module
c/E Analyzer
