7-D-10 Chapter 7: Gas Analyzer Configuration 42/24-10 EN Rev. 9
Value Entry

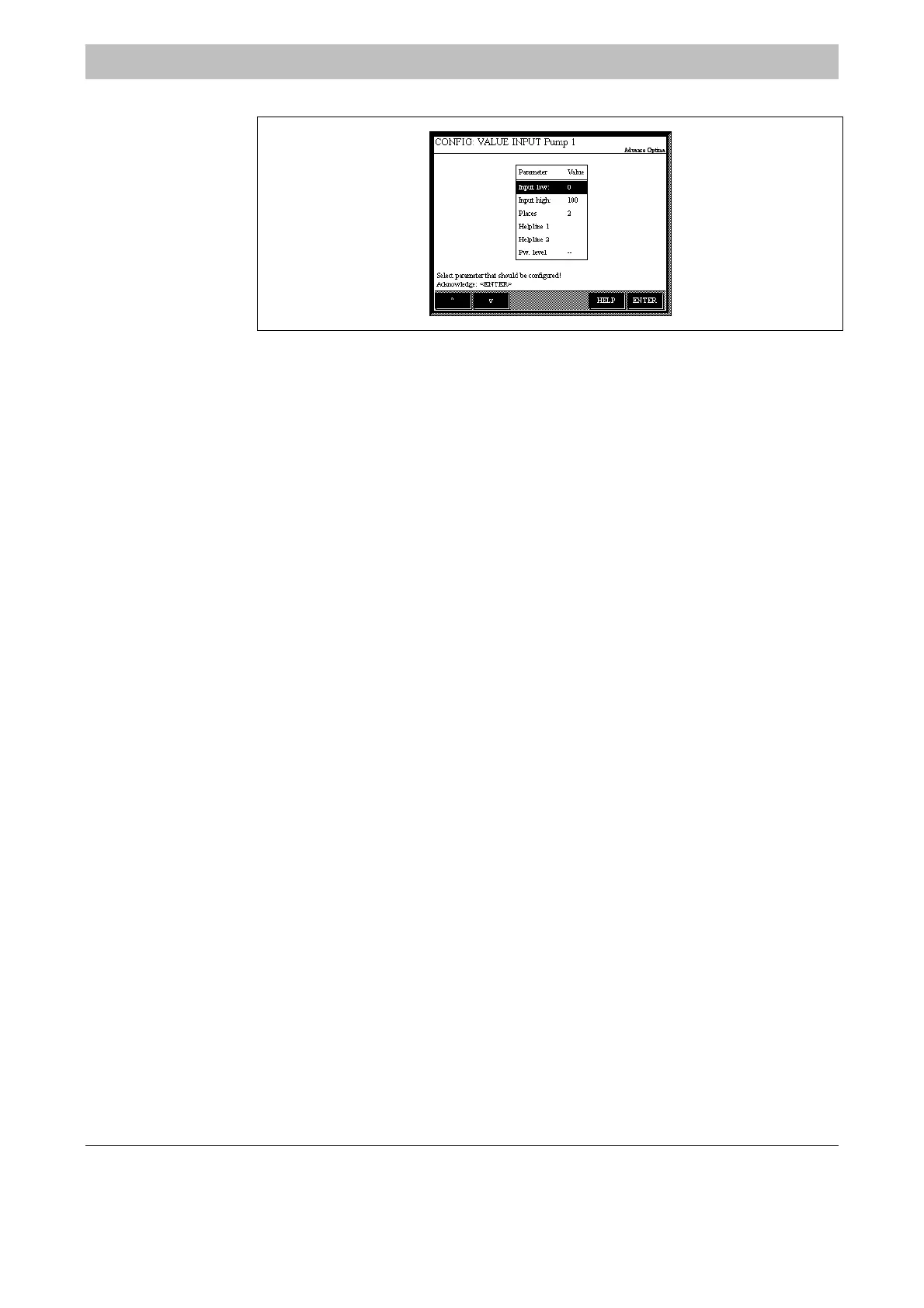

Figure 7-D-5
Configuring the
Value Entry
Description The source of the display element Value Entry is the function block Constant
that is automatically generated during configuration. The output of this function
block accepts the entered value.
For the entered value to be effective, the generated function block must be linked
to a function block application after configuring the display (for details, see the
technical information “AO2000 Function Blocks – Descriptions and Configuration”
(document No. 30/24-200 EN)).
Configuration The following are to be configured for the display element Value Entry (see
pa ge 7-D -11) :
• the start and end of the entry range,
• the number of decimal places in the display,
• two lines of text that are displayed when the display element is used, and
• the password level on which the entry value can be changed.
Use Values are entered during measurement by pressing the number key that corres-
ponds to the position of the display element in the display and is indicated above
the display element. A field then appears for entering the value (see “Operating by
Value Entry” section, page 6-10). The display element Value Entry accordingly
represents a response to the actual value entry.
