42/24-10 EN Rev. 9 Chapter 3: Gas Line Connection 3-3

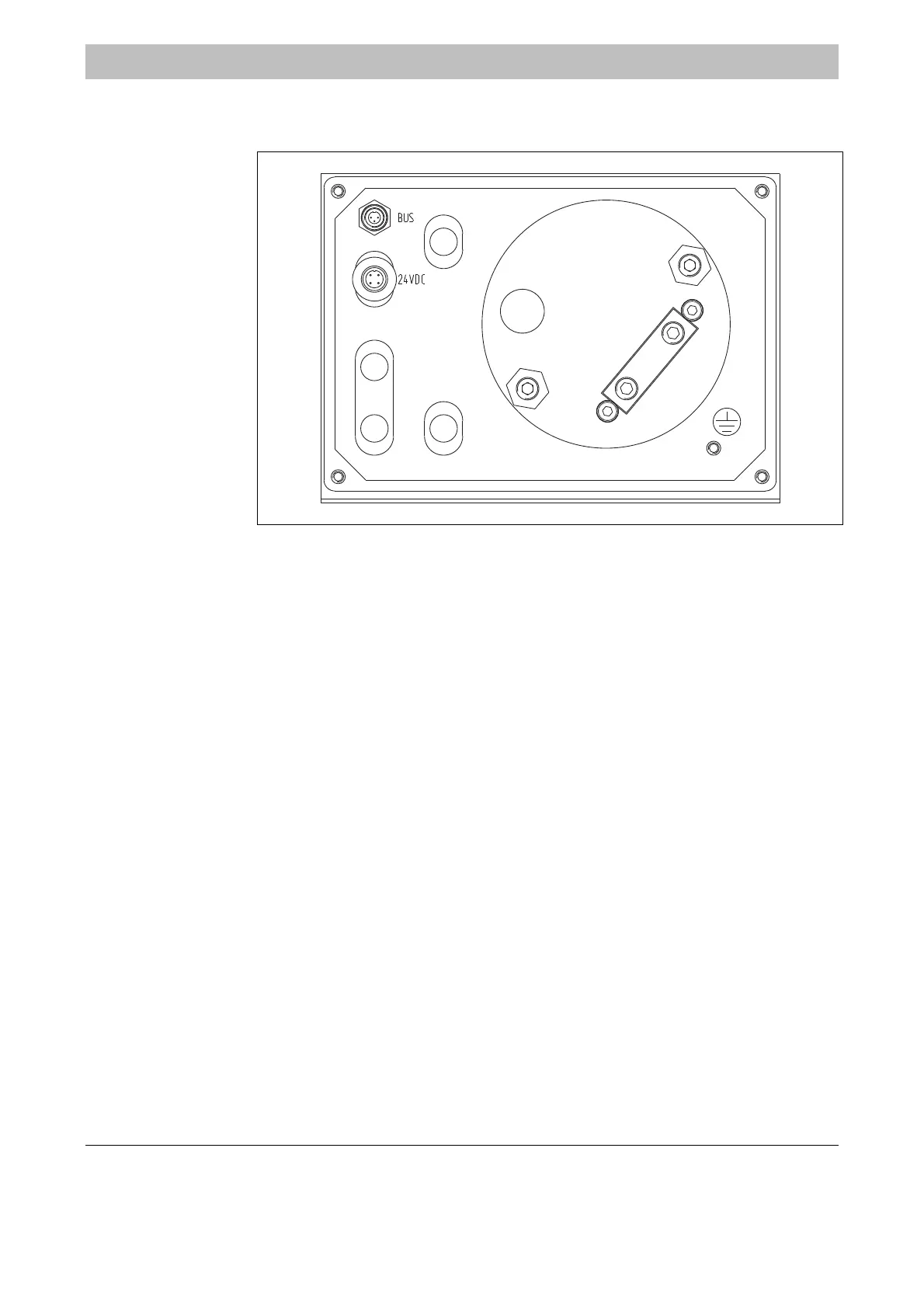

Magnos27: Gas Connections
Sample Cell Direct Connection, only in Wall-Mount Housing
Figure 3-3
1
2
10
9
4
7
6
8
5
1 Purge Gas Inlet Housing
1)
2 Purge Gas Outlet Housing
1)
(also with Flow Sensor)
4 Sample Gas Inlet
5 Purge Gas Inlet Analyzer
6 Purge Gas Outlet Analyzer
7 Sample Gas Outlet
8 –
9 Pressure Sensor 1
1)
10 Pressure Sensor 2
1)
Gas Connections
1) Option
