ABB Advance Optima magnos206 User Manual

42/24-10 EN Rev. 9 Chapter 3: Gas Line Connection 3-1
Chapter 3 Gas Line Connection

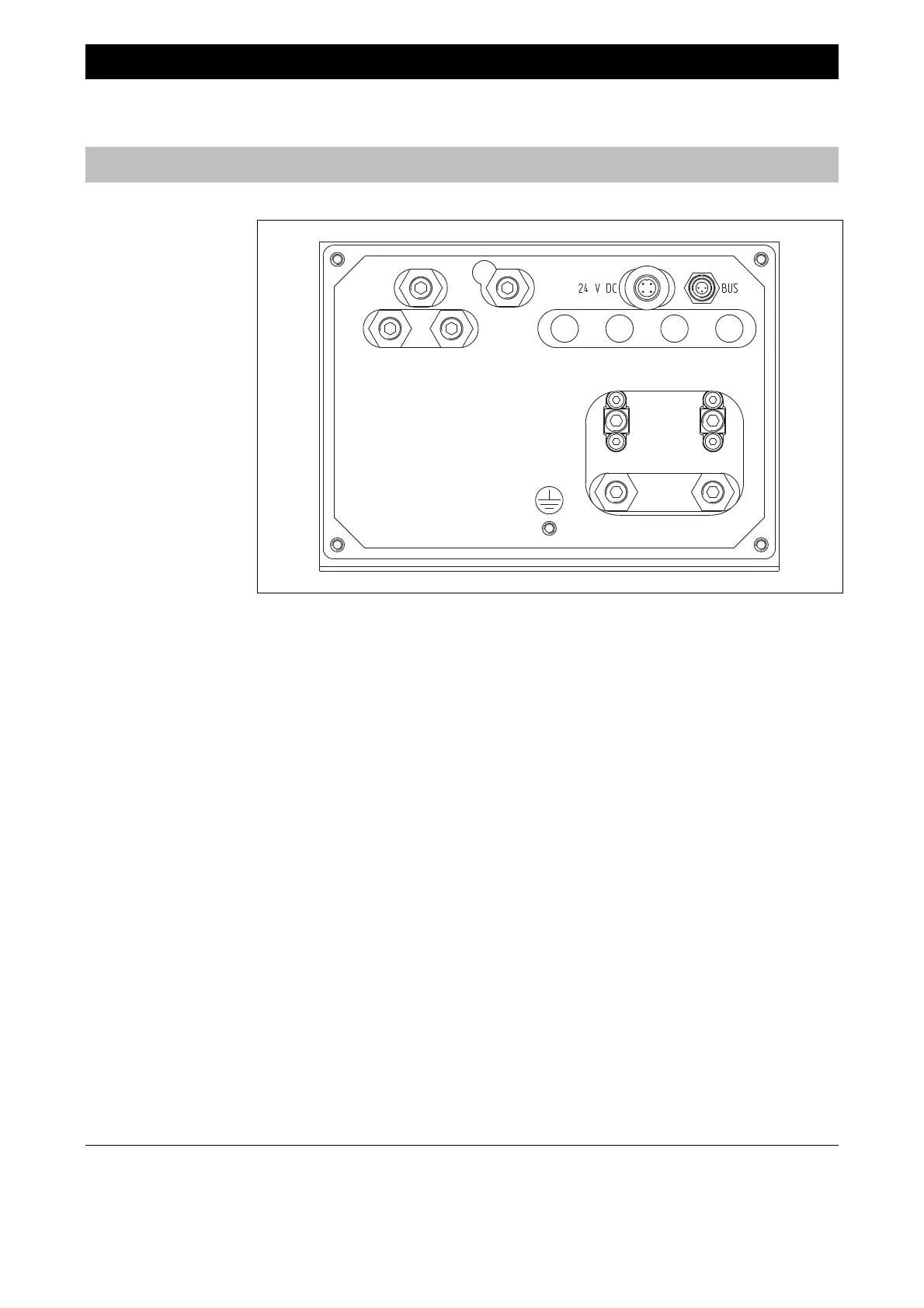

Magnos206: Gas Connections
Figure 3-1
12
34
13
14
12 11 10 9 8 7
1 Sample Gas Inlet
2 Sample Gas Outlet
3 Purge Gas Inlet Analyzer
2)
4 Purge Gas Outlet Analyzer
2)
7 Purge Gas Inlet Housing
1)
8 Purge Gas Outlet Housing
1)
(also with Flow Sensor)
9 Pressure Sensor 1
1)
10 Pressure Sensor 2
1)
Pneumatics Module
1)
:
11 Sample Gas Inlet
12 End Point Gas Inlet (with 3 solenoids)
13 Test Gas/Zero-Point Gas Inlet (with 1 or 3 solenoids)
14 Sample Gas Outlet – Connect with Inlet 1
1) Option
Gas Connections
2) not in version with performance test for emission monitoring
