9-26 Chapter 9: Inspection and Maintenance 42/24-10 EN Rev. 9
Pump Activation, Pump Output Adjustment
Pump Activation The pump installed in the internal gas module and external pumps connected to
appropriately configured digital outputs can be activated and deactivated
manually, for instance in emergency situations.
An emergency shutdown cannot be bypassed by automatic calibration.
Pump Output
Adjustment
The output of the pump installed in the internal gas module can be adjusted
manually only when the pump is in operation.
If there is a flow sensor in the gas module, its reading is shown when adjusting the
pump output.
Menu Path MENU
→ Maintenance/Test → Analyzer spec. adjustm. → Pump

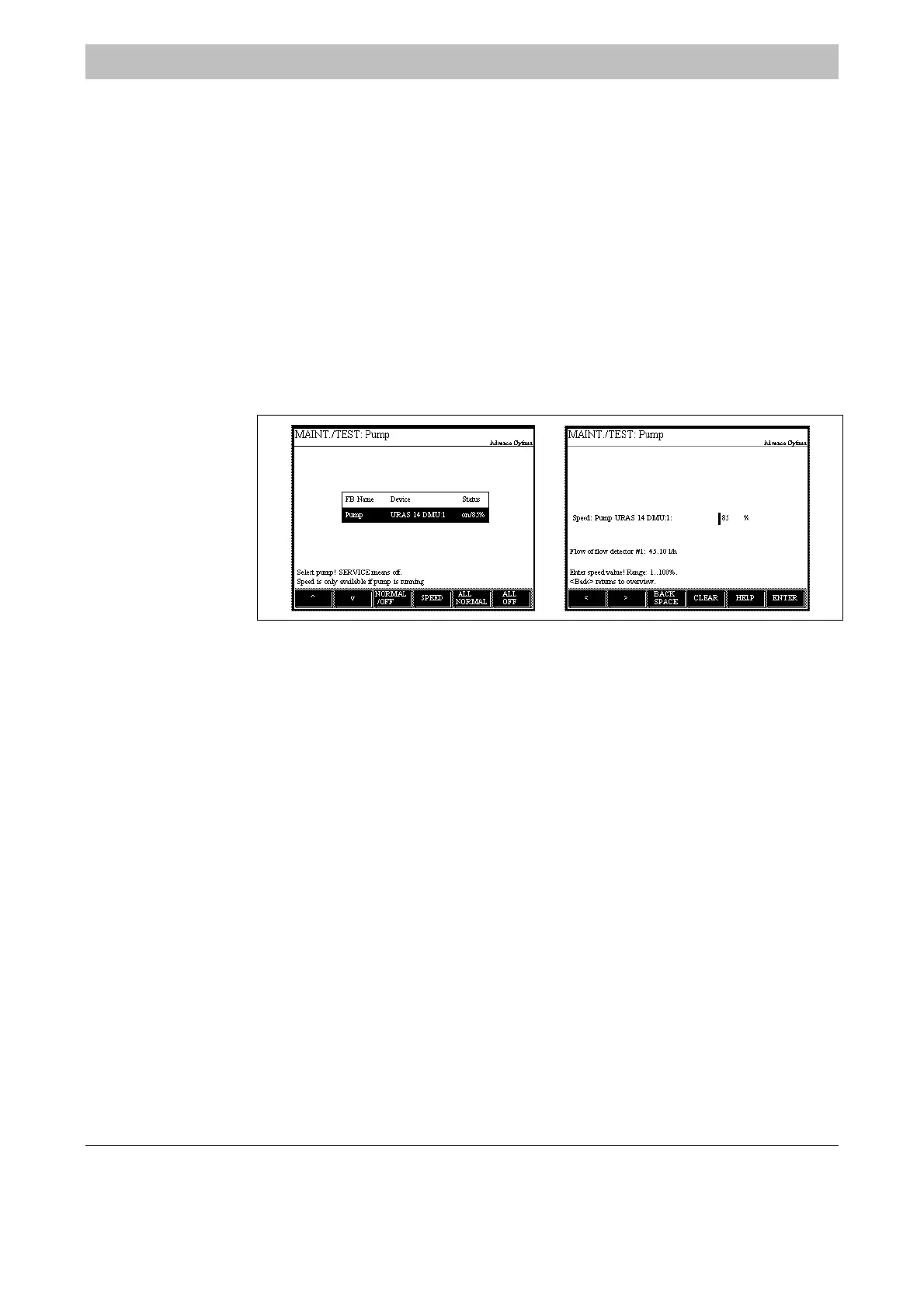

Figure 9-13
Pump Output
Adjustment
