ABB Advance Optima magnos206 User Manual

42/24-10 EN Rev. 9 Chapter 6: Gas Analyzer Operation 6-1
Chapter 6 Gas Analyzer Operation
Display and Control Unit
Overview The display and control unit contains:
• The screen with
• Menu line
• Information field
• Softkey line
• Status LED’s
• Numeric keypad
• Cancel keys
• Softkeys
In both system housing versions the display and control unit is located on the
front face.

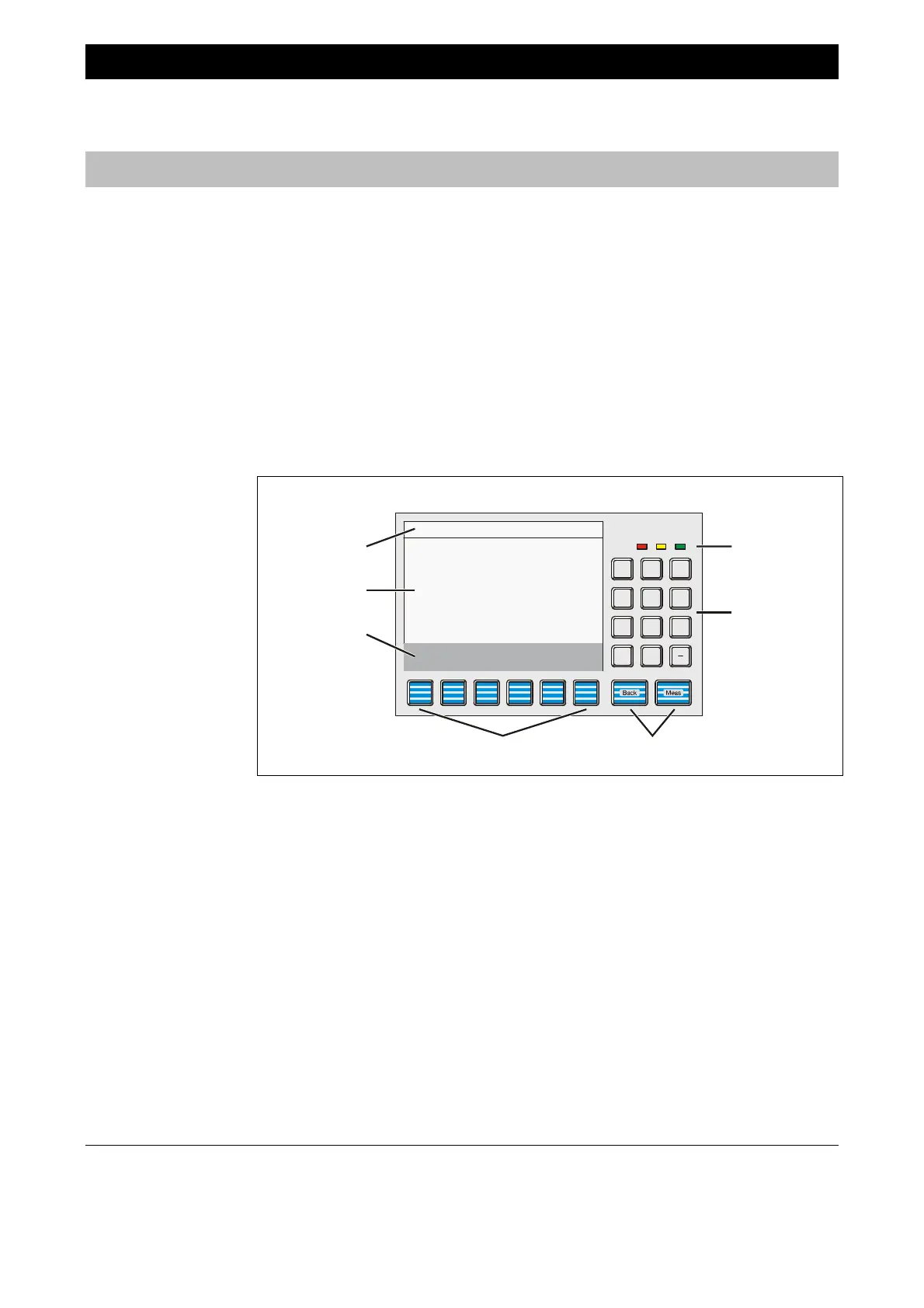

Figure 6-1
Display and Control
Unit
Error Maint Power
7
8
9
6
54
12
3
0
.
Status LED’
s
Numeric
Keypad
Menu Line
Information
Field
Softkey Line
Screen with
Softkeys Cancel Keys
Display and Control
Unit Operating Modes
The display and control unit operating modes are
• Measurement
• Menu
The display and control unit operating modes have no effect on measurement
operations, i.e. gas analyzer measurement functions continue while in menu
mode.
