6-4 Chapter 6: Gas Analyzer Operation 42/24-10 EN Rev. 9

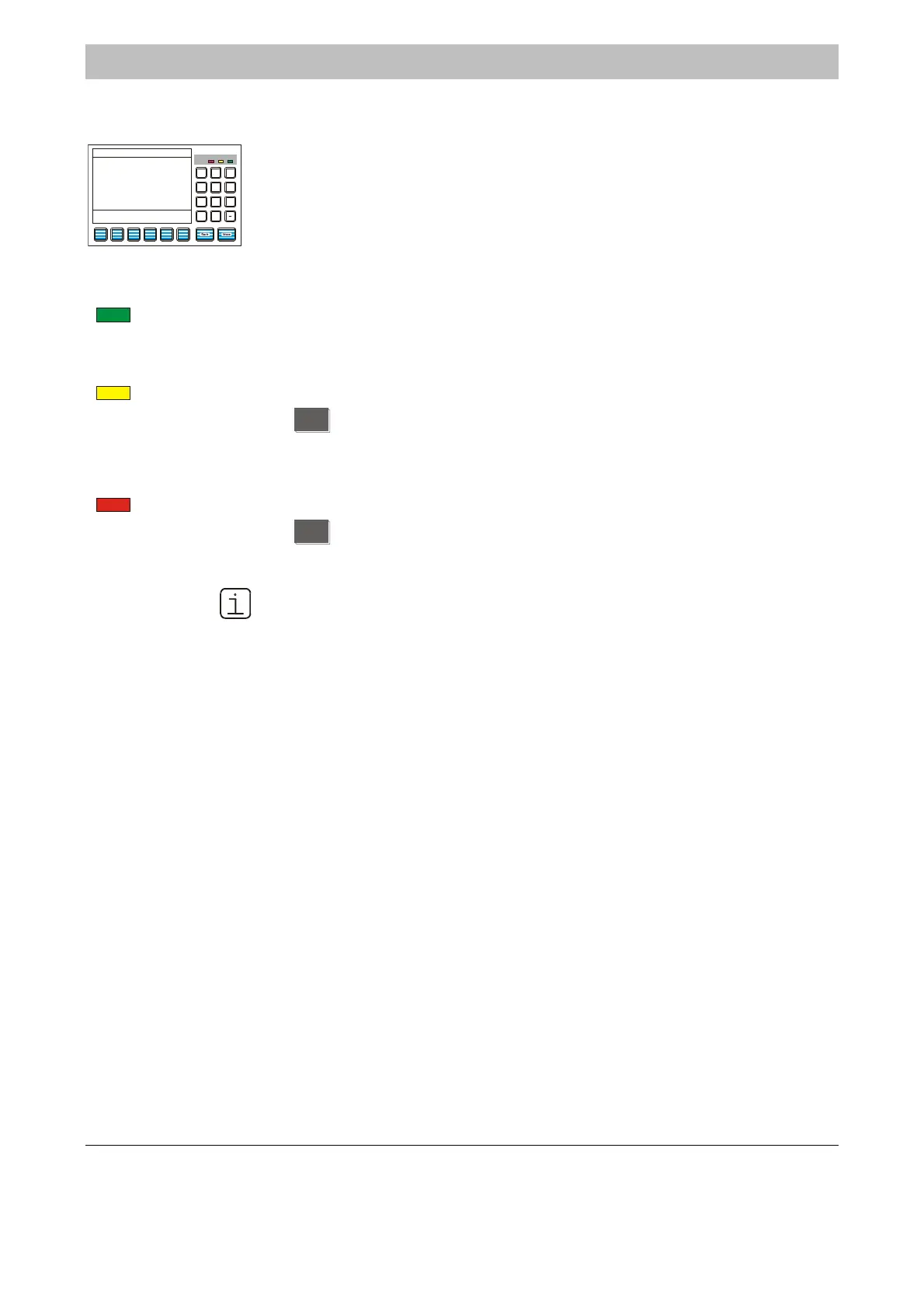

Status LED’s
Status LED’s
Error Maint Power
7
89
654
123
0
.
The three LED’s next to the screen indicate the gas analyzer’s status.
Power
The green “Power” LED lights when the power supply is on.
Maint
The yellow “Maint” LED lights when the “Maintenance Request” status signal is
active.
The
STATUS
MESSAGE
softkey appears on the screen at the same time (see page 6-7).
Error
The red “Error” LED lights when the “Failure” status signal or the overall status
signal is active.
The
STATUS
MESSAGE
softkey appears on the screen at the same time (see page 6-7).
Chapter 10 contains information on status messages and status signals.
