Magnos27: Thermal Link Replacement
The service handbooks describe the procedure for replacing the Caldos25,
Caldos27, Magnos206 and Uras26 thermal link.
When is replacement
needed?
The thermal link should be replaced if a thermal link failure is the probable cause of a
temperature error (see also “Caldos25, Caldos27, Magnos206, Magnos27
Problems” section, page 10-18).
Step Action
1
Turn off the gas analyzer power supply.
2 Open the wall housing door or the 19-inch housing front plate.
3 Disconnect the thermal link from the thermostat connection
terminals 2.
4 Bend back the thermal link spring clips on the cable guide and pull
the thermal link 1 from the cavity in the thermostat annular heater.
5 Insert a new thermal link (part number 0740712) in the cavity and
close the spring clips.
6 Connect the new thermal link to the thermostat connection terminals.
7 Close the system housing.
Thermal Link
Replacement
(see Figure 9-2)
8 Turn on the gas analyzer power supply.

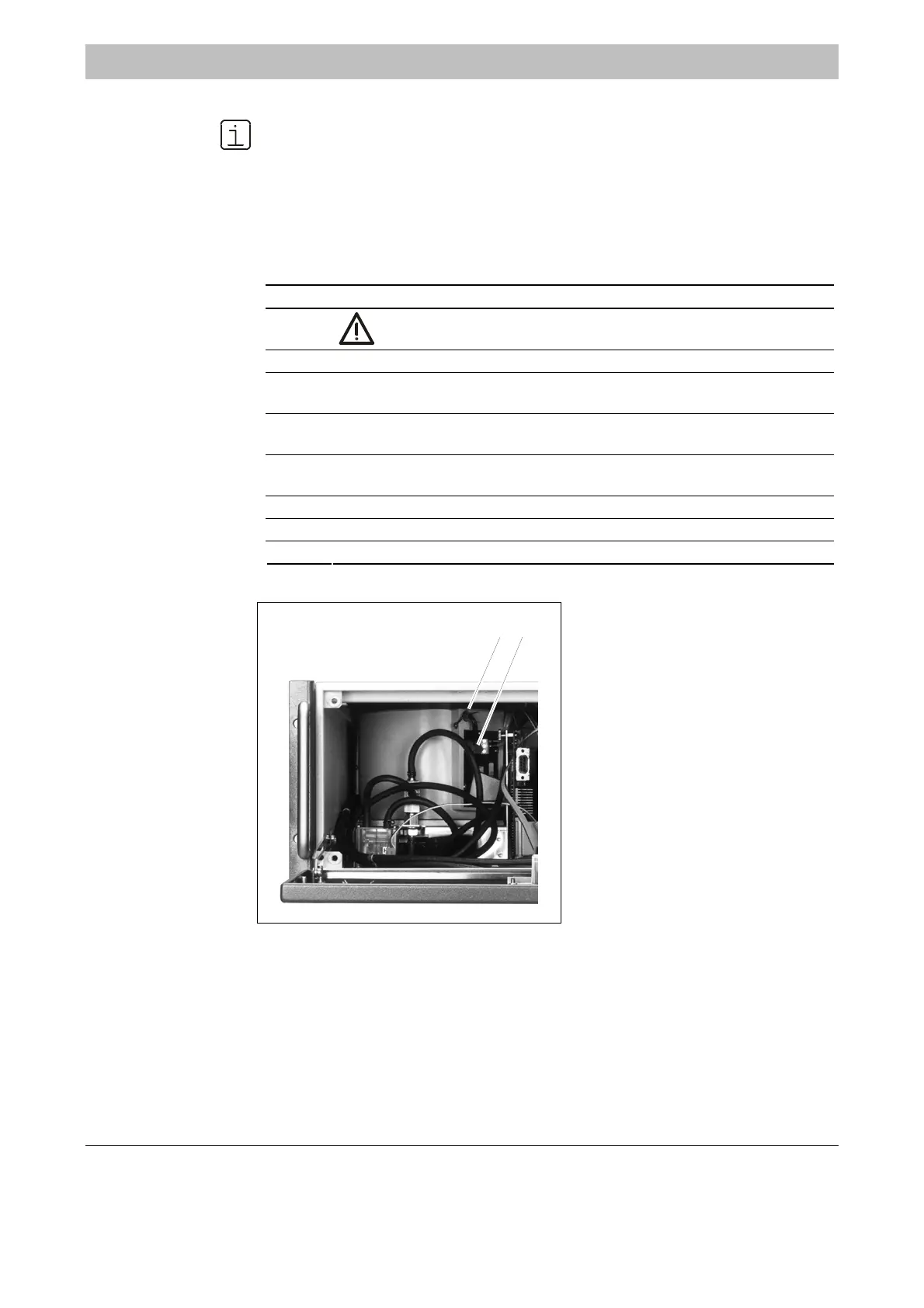

Figure 9-2
Location of Magnos27
Analyzer Module
Thermal Link
1 Thermal Link
2 Thermostat Connection
Termin a l s
