42/24-10 EN Rev. 9 Chapter 4: Electrical Connection 4-5

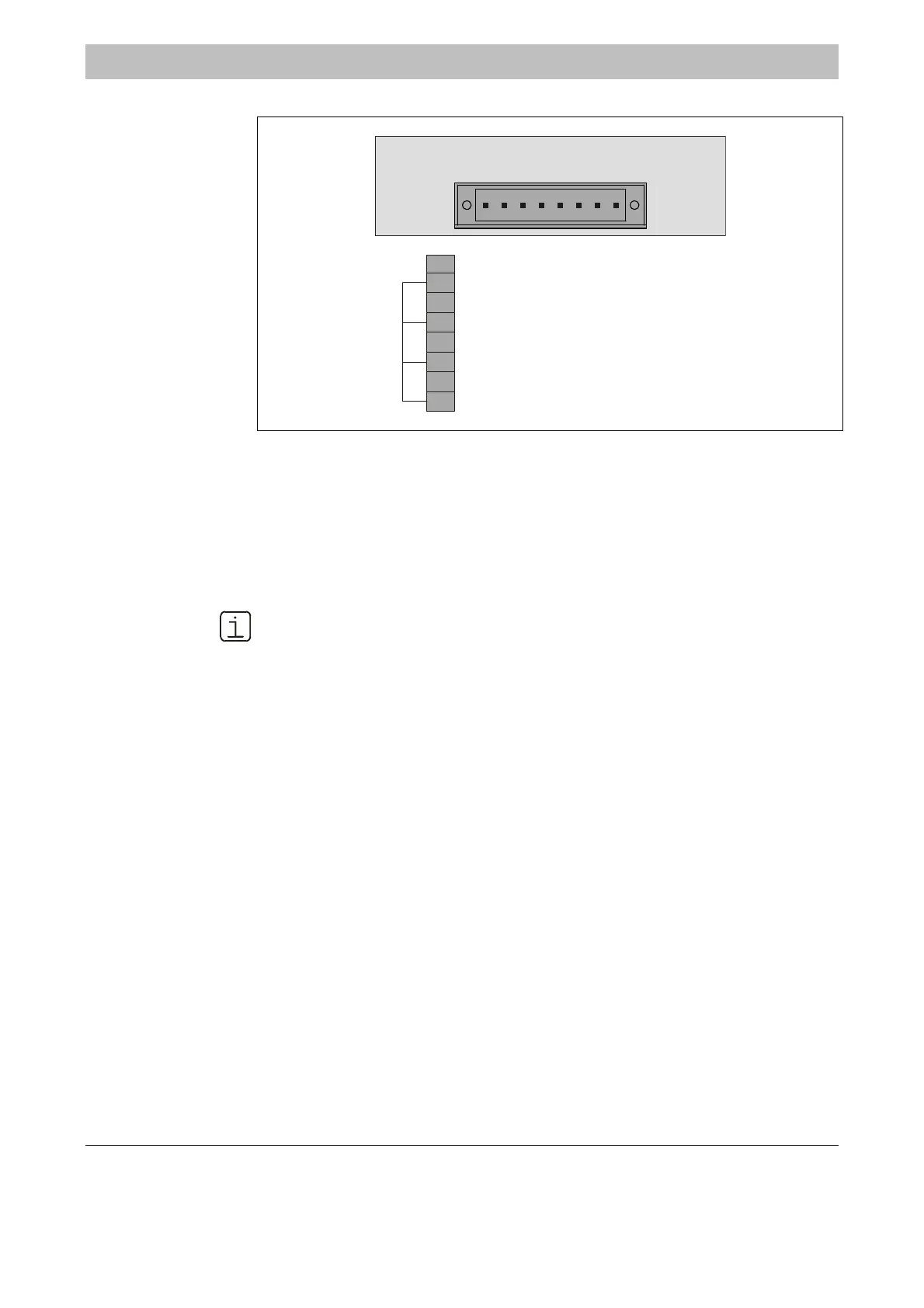

4-Way Analog Output Module: Electrical Connections
12345678
Figure 4-5
4-Way Analog Output
Module
Connection Diagram
1
2
3
4
5
6
7
8
AO3
A
O1
+
+
-
-
AO4
AO2
+
+
-
-
0/4 to 20 mA, max. 750 Ω
0/4 to 20 mA, max. 750 Ω
0/4 to 20 mA, max. 750 Ω
0/4 to 20 mA, max. 750 Ω
AO1-AO4 Analog Outputs:
0/4-20 mA (configurable, factory-set to 4-20 mA), common negative
pole, galvanically separated from ground, freely connectable to
ground, max. gain vs. local protective ground potential 50 V,
max. working resistance 750 Ω. Resolution 16 bit. The output signal
cannot be lower than 0 mA.
Design: 8-pin terminal strip for stranded or solid cable with a maximum section of
1 mm
2
(17 AWG). Observe the information on needed materials (see page 4-13).
“Standard Terminal Connections” section (see page 4-9) contains information on
standard
terminal assignment. Please observe also the specifications in the
analyzer data sheet.
