42/24-10 EN Rev. 9 Chapter 4: Electrical Connection 4-3

Modbus Module: Electrical Connections

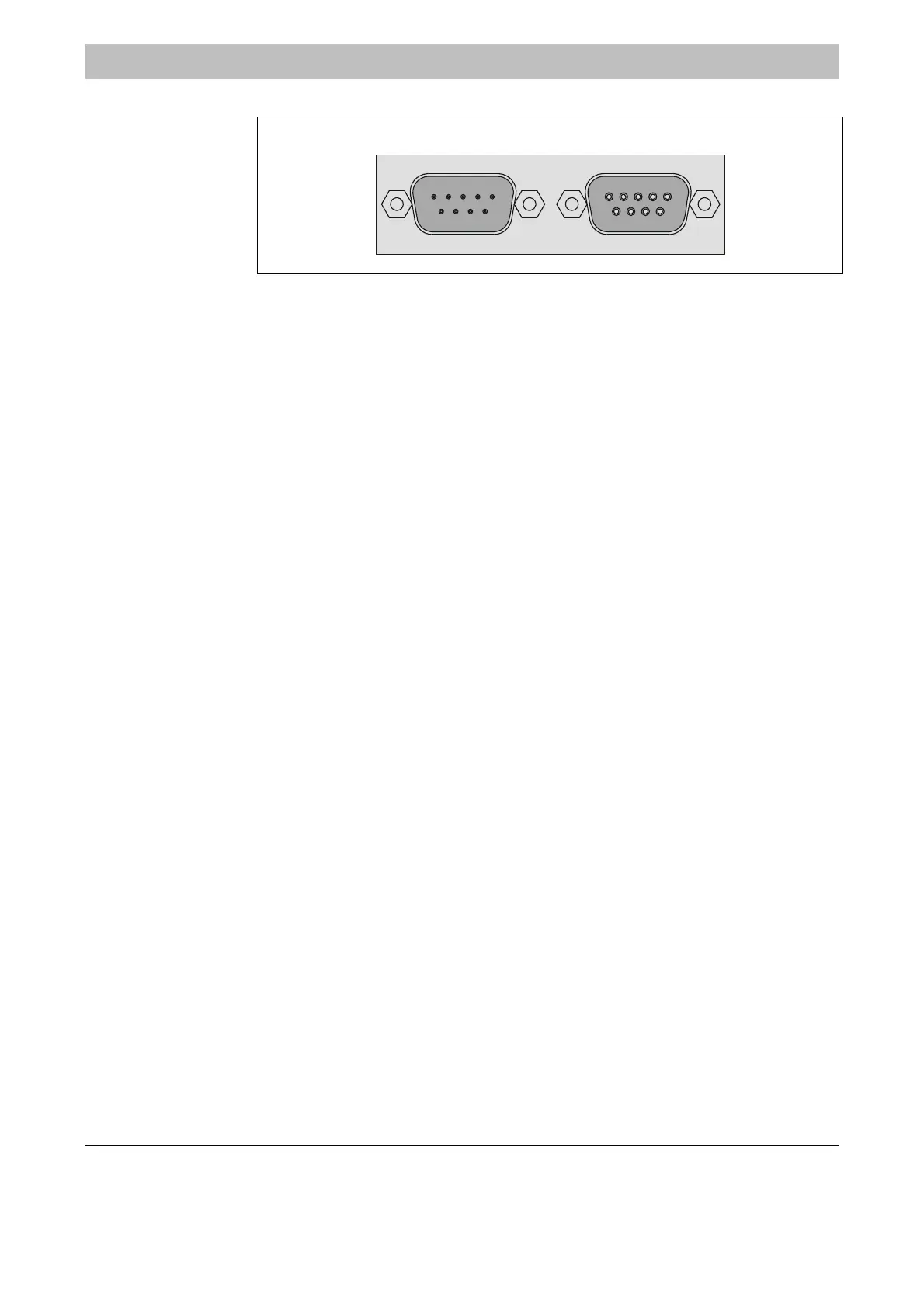

Figure 4-3

Modbus Module

Connection Diagram

232 R

485

RS232 Interface:

2 RxD

3 TxD

5 GND

Design: 9-pin Sub-D male connector

RS485 Interface:

2 RTxD–

3 RTxD+

5 GND

Design: 9-pin Sub-D female connector
