Configuration 365
Related safety functions
The SLS1…4 functions use SAR1 parameters to monitor and/or define the
deceleration ramp (SLS with ramp monitoring). See section Configuring SAR on
page 361.
The FSO module activates the STO function if the motor speed hits a ramp
monitoring limit during the deceleration ramp (SLS with ramp monitoring). See
section Configuring STO on page 331.
The FSO module activates the SSE function if the motor speed hits a trip limit. See
section Configuring SSE on page 351.
SLSx.24
= DI X113:2 &
X114:2
SLSx.24
= DO X114:7
SLSx.03 = Ramp
SLSx.02 = Automatic
Remember to configure SAR1!

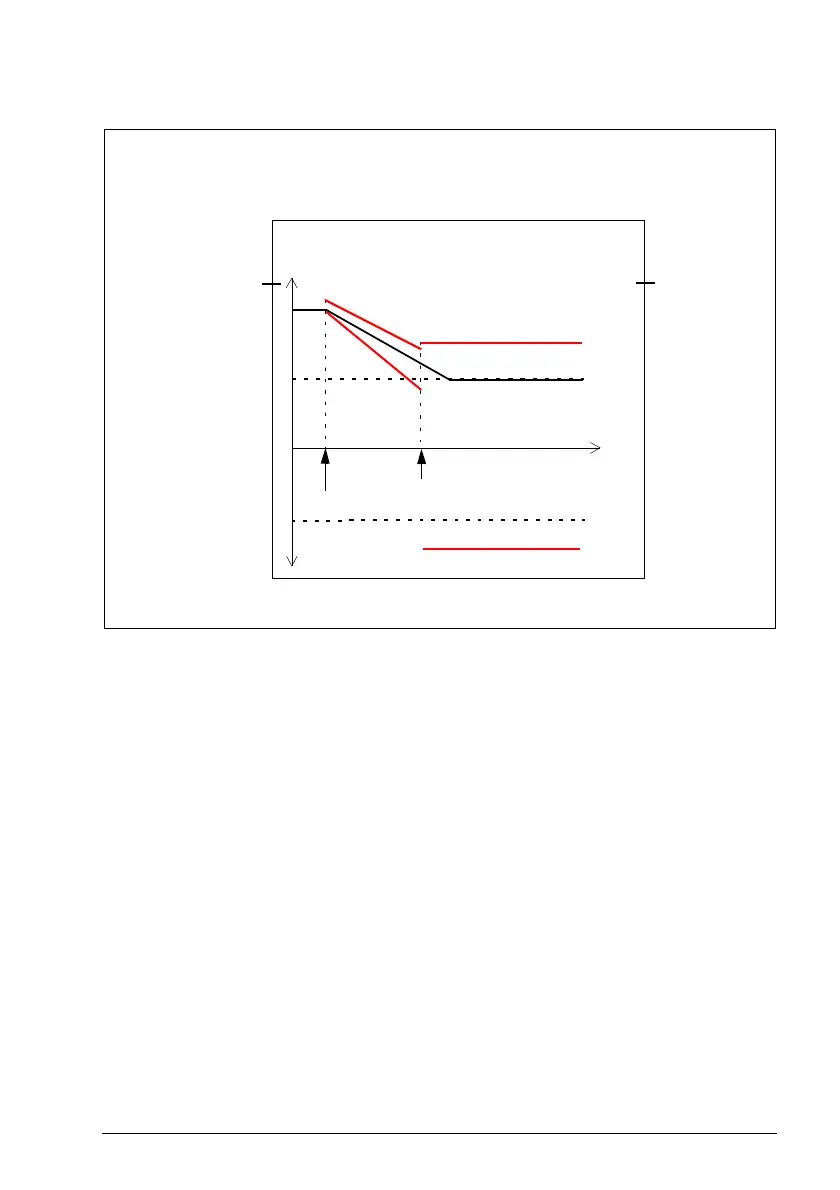

SLS2
Time
Speed
Input Output
SLS activated
SLS monitoring started
200.31 = Version 1
SLSx.22 = -1020 rpm
200.33 = 1200 rpm
SLSx.23 = 1320 rpm
200.32 = -900 rpm
