394 Configuration
following parameters: 1.1, 1.2, and 90.1. See drive firmware manual for more
information.
How to configure limit hit situations
Example 1: SMS trip limit hit
This example covers trip limit situations of SMS function with synchronous machines.
This example is valid when SMS-specific mute time is disabled (parameter
FSOGEN.39) or if encoder is used.
• parameter FSOGEN.39 Enable SMS mute time = Disabled
• parameter FSOGEN.31 Transient mute time = 100 ms.
Note: When a synchronous machine is started, there is a possibility of short (< 100
ms) error spikes in safe speed estimate which can cause an unnecessary trip if the
mute time is set too short. If the motor is rotated only in positive direction and

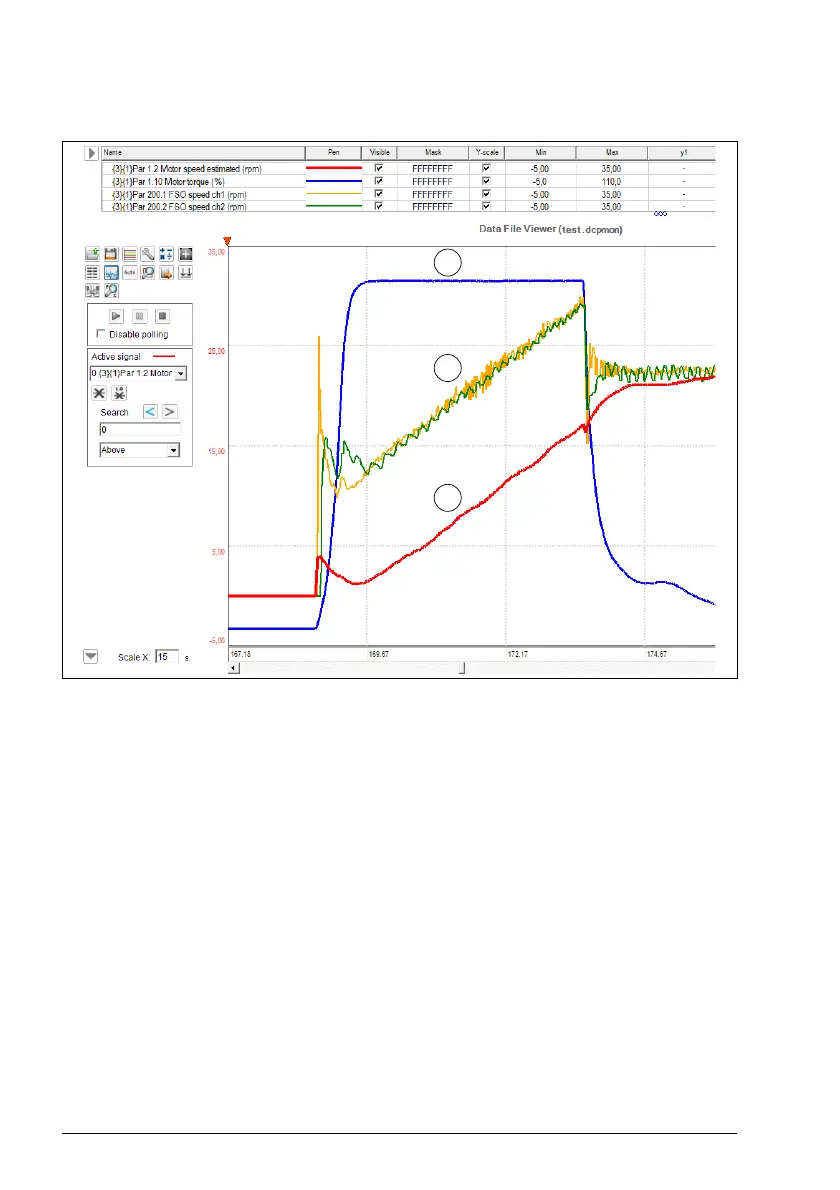

A Motor torque
B FSO speed signals
C Motor speed estimate of the drive
