Configuration 383
How to configure SLSn with ramp monitoring if drive modulation is
lost during SLS deceleration ramp

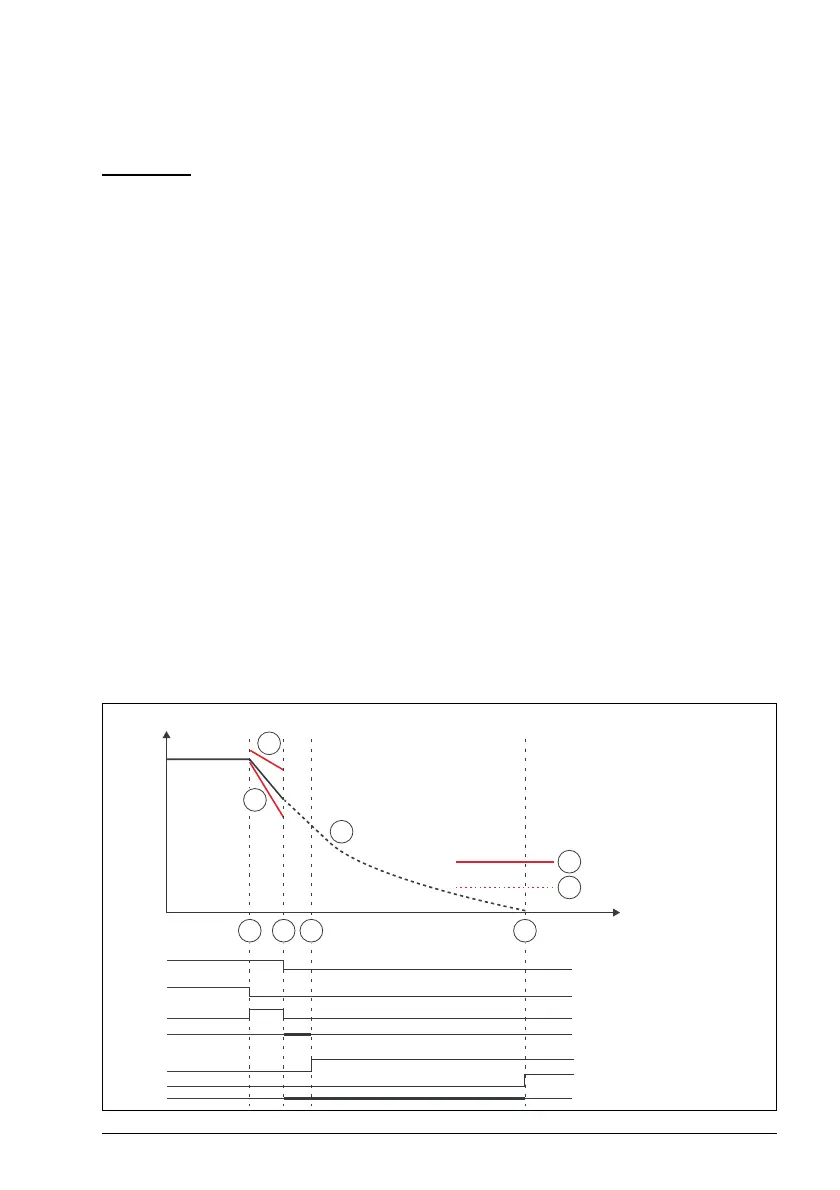

Example 1: The figure below shows an example of the modoff situation with SLS
function with ramp monitoring when "Modoff delay time" (parameter SLSx.05) is
selected:
Basic parametrization of the SLS function made according to chapter Configuring
SLS on page 362.
Modoff delay time monitoring is active when drive modulation is lost (SLSx.05
SLS ramp modoff reaction = Modoff delay time)
Modoff delay time (SLSx.06 SLS ramp modoff delay time = 200 ms)
Relevant parameters for this configuration:
Scaling speed: 1500 rpm (200.202 SAR speed scaling = 1500 rpm)
Deceleration time and ramp monitoring according to SAR1 parameters
ramp time from Scaling speed to zero: 1000 ms (200.112 SAR1 ramp time to
zero = 1000 ms)
initial range for monitoring: 100 ms (SARx.02 SAR initial allowed range = 100
ms)
minimum allowed ramp time: 500 ms (SARx.21 SAR1 min ramp time to zero =
500 ms)
maximum allowed ramp time: 1000 ms (SARx.22 SAR1 max ramp time to
zero = 1500 ms).
STO.14 Time to zero speed with STO and modoff: 2500 ms.
SLS indication
STO.14 delay
Motor speed
Time
1 3 42
C
A
A
D
B
Drive modulation
SLS request
SAR1 monitoring
SLSx.06 Modoff
delay time monitoring
STO active
SLSx.06
200.202
