6.2.2 Calibration movement directions for all axes
Overview
When calibrating, the axis must consistently be run towards the calibration position
in the same direction in order to avoid position errors caused by backlash in gears
and so on. Positive directions are shown in the graphic below.
Calibration service routines will handle the calibration movements automatically
and these might be different from the positive directions shown below.

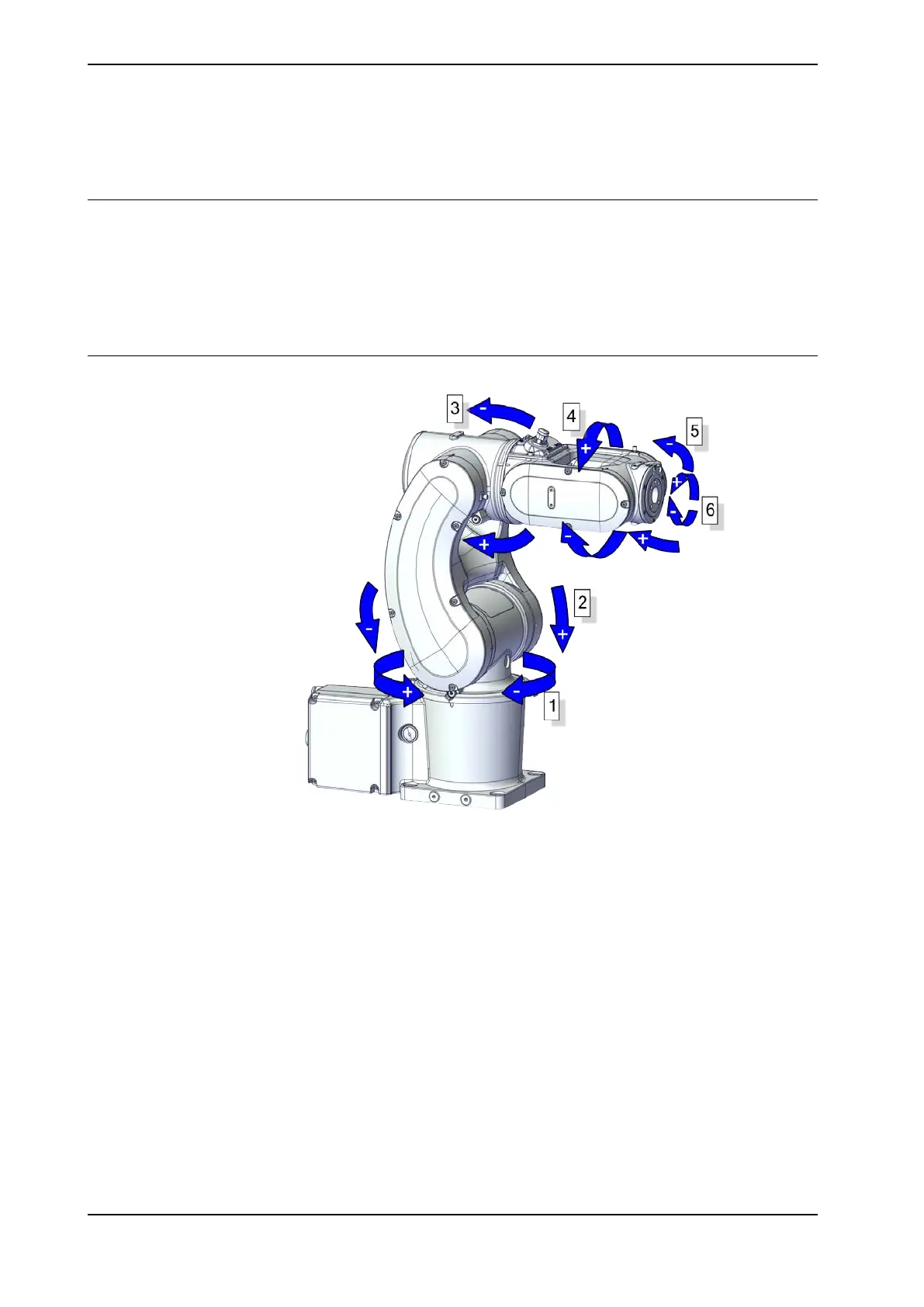

Manual movement directions
xx2200000178
284 Product manual - IRB 1010
3HAC081964-001 Revision: B
