3.4.2 Mechanically restricting the working range
Location of mechanical stops
Axis 1 and axis 3 have fixed stops that must be installed during operation of robot.
Axis 2, axis 4 and axis 5 have castings as mechanical stops to restrict working
range, which could not be replaced.

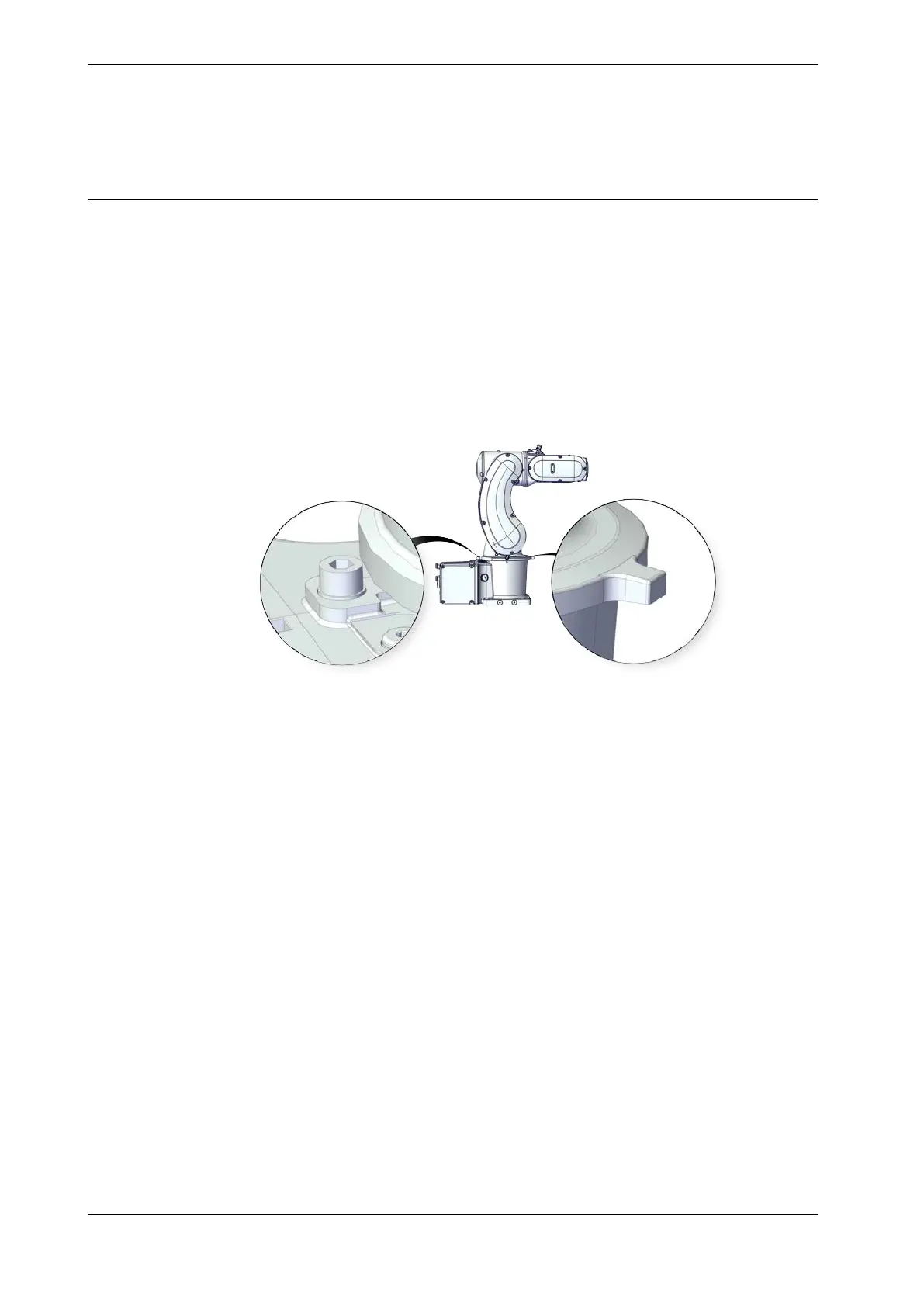

Axis 1
xx2200000198
Continues on next page
68 Product manual - IRB 1010
3HAC081964-001 Revision: B
© Copyright 2022 ABB. All rights reserved.
3 Installation and commissioning
3.4.2 Mechanically restricting the working range
