Install ControlLogix Analog I/O Modules Chapter 6
Cabinet Size Considerations with Extended-depth Housing

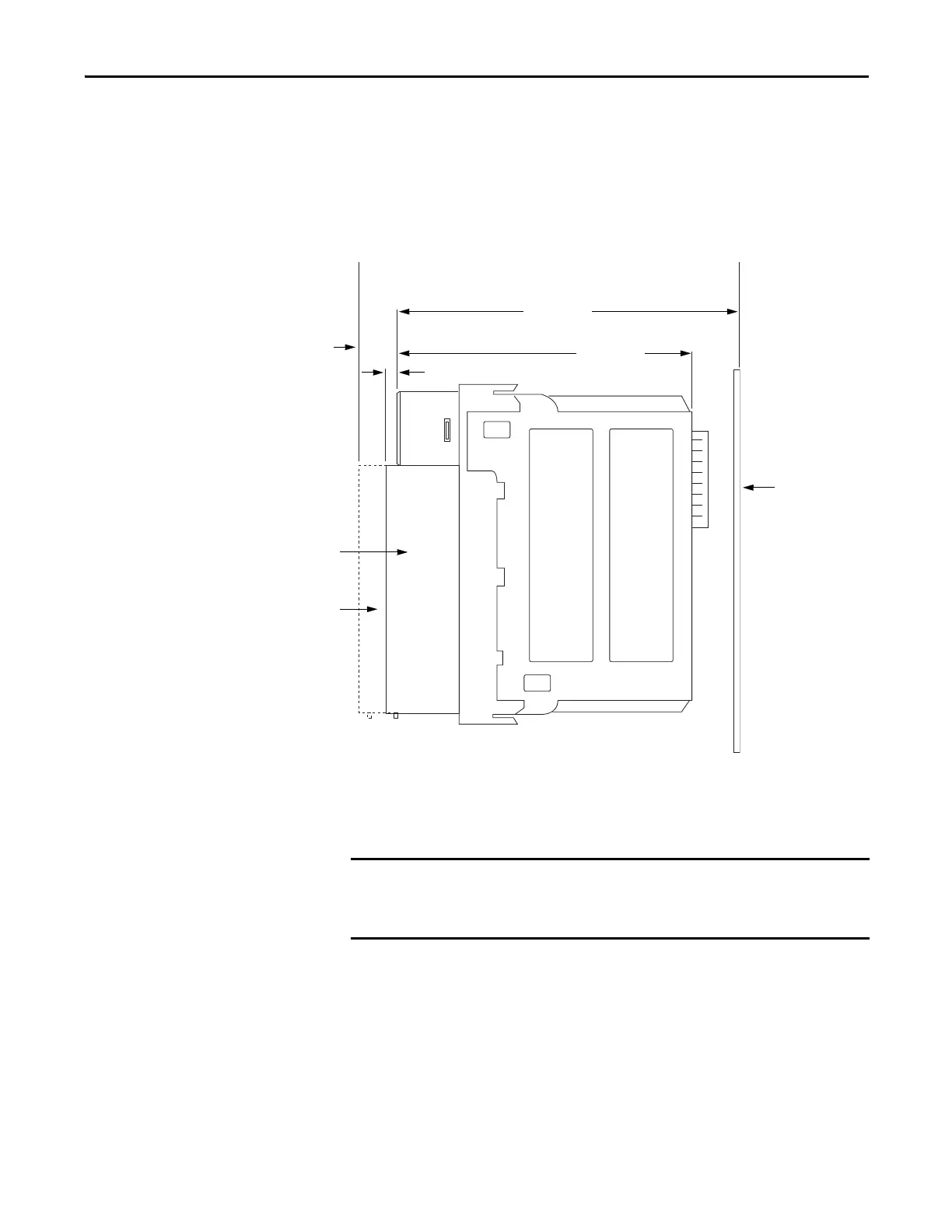

When you use extended-depth housing, catalog number 1756-TBE, the I/O
module depth is increased. The diagram shows the difference in depth between
an I/O module using standard-depth housing and one using extended-depth
housing.
Standard-depth Housing
Extended-depth Housing
144.73 (5.698)
Rear Surface of
ControlLogix Chassis
131.75 (5.187)
3.18 (0.125)
12.7 (0.5)
Dimensions are in mm (in.)
41682
The depth from the front of the module to the back of the chassis is as follows:
• Standard-depth housing = 147.91 mm (5.823 in.)
• Extended-depth housing = 157.43 mm (6.198 in.)
