Limit Configuration Tab

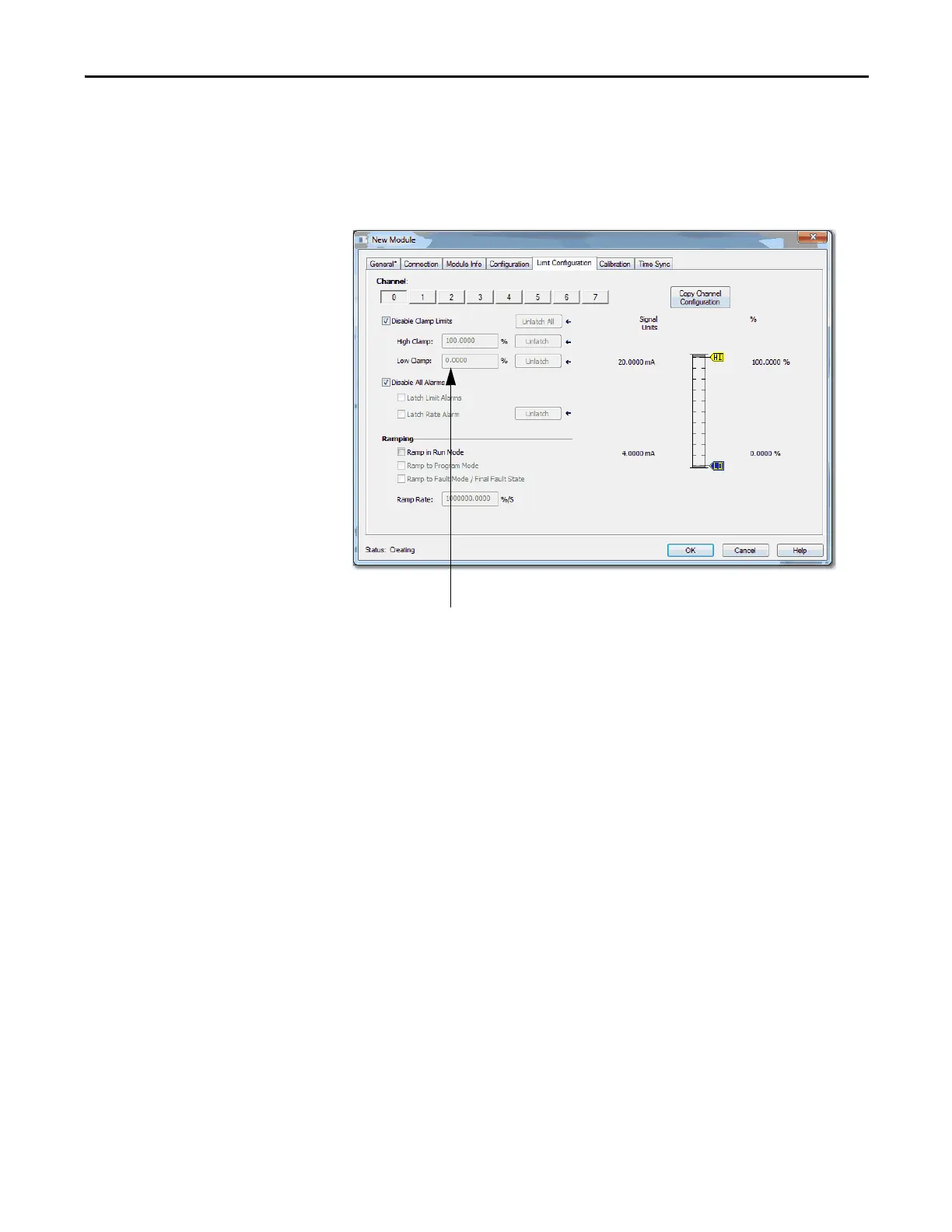

The Limit Configuration tab is available with only the 1756-OF8I module. You
use this tab to configure clamp limits and module ramping.
Copy Channel Configuration
The Copy Channel Configuration feature lets you quickly and easily use the same
configuration across multiple channels on a module. You can configure channel
parameters on Module Properties dialog box and copy them to other channels.
Copy Channel Configuration is available on the Module Properties dialog box
tabs as follows for the ControlLogix analog I/O modules:
• 1756-IF8I, 1756-IRT8I, 1756-IR12, 1756-IT16 modules:
– Configuration tab
– Alarm Configuration tab
• 1756-OF8I module:
– Configuration tab
– Limit Configuration tab
IMPORTANT: Changes to the High Engineering and Low Engineering values on
the Configuration tab do not change the Clamp values on this tab, when Clamp
Limits are enabled.
