Rockwell Automation Publication 1756-UM540E-EN-P - December 2017 137
Configure ControlLogix Analog I/O Modules Chapter 7
Alarm Configuration Tab
The 1756-IF8I and 1756-IRT8I modules support alarms. The fields on the
Alarm Configuration tab are specific to the module type. The following are
examples of tasks you complete via this tab:
• Disable alarms.
• Set alarm parameters.
• Set rate limits.
This tab is available only for input modules.

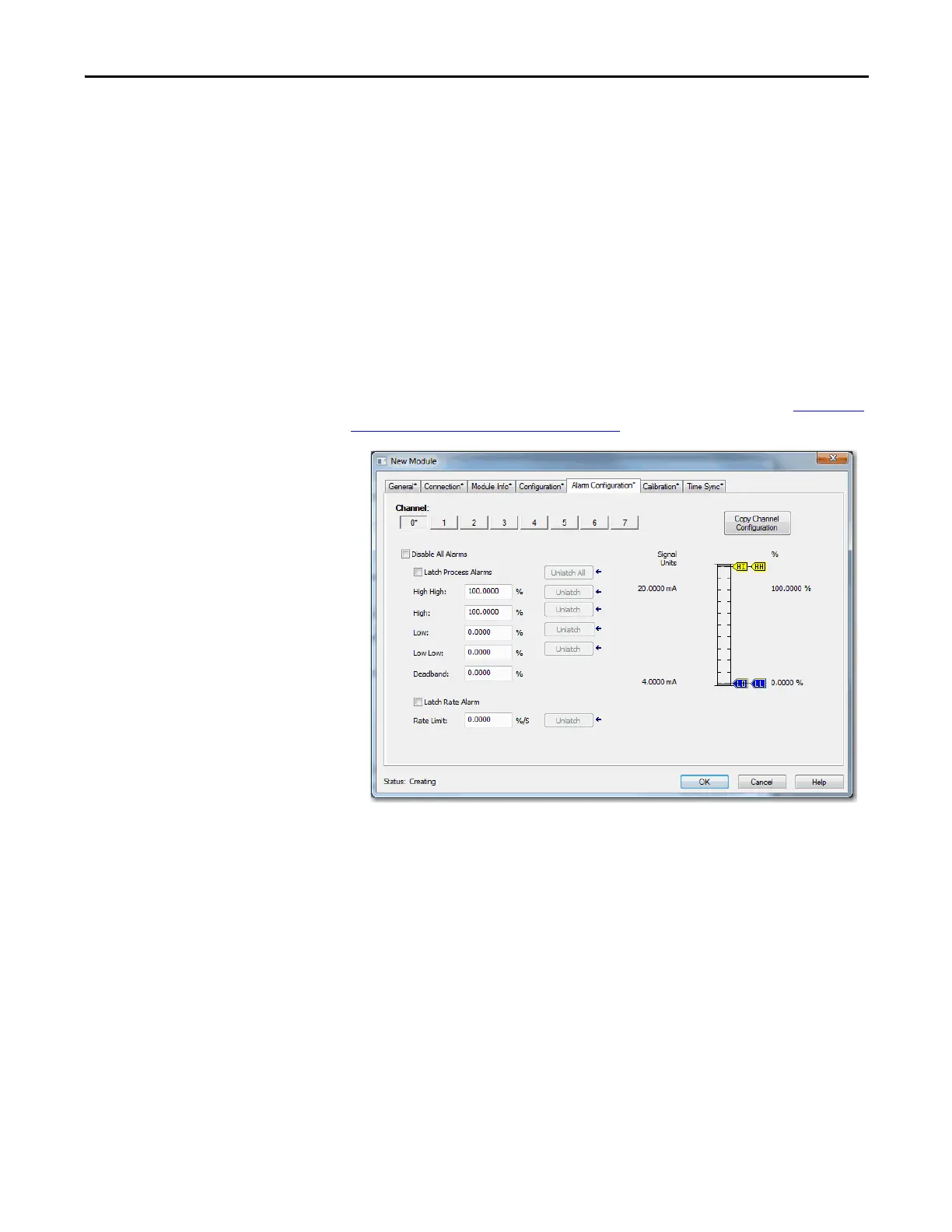

1756-IF8I Module
For information on this tab’s configurable parameters, see Chapter 3, 1756-IF8I
Isolated Analog Input Module on page 41.
