38 Rockwell Automation Publication 2711P-UM007D-EN-P - December 2015
Chapter 2 Install the PanelView Plus 7 Standard Terminal
Only PanelView Plus 7 standard terminals with two Ethernet ports, for
example, catalog number 2711P-T10C22D8S, operate on a DLR network.
DLR network topologies automatically convert to linear network topologies
when a fault is detected. The conversion to the new network topology
maintains communication of data on the network. The fault condition is
typically detected and corrected.
For more information on DLR network topology, refer to EtherNet/IP
Embedded Switch Technology Application Guide, publication ENET-AP005
.

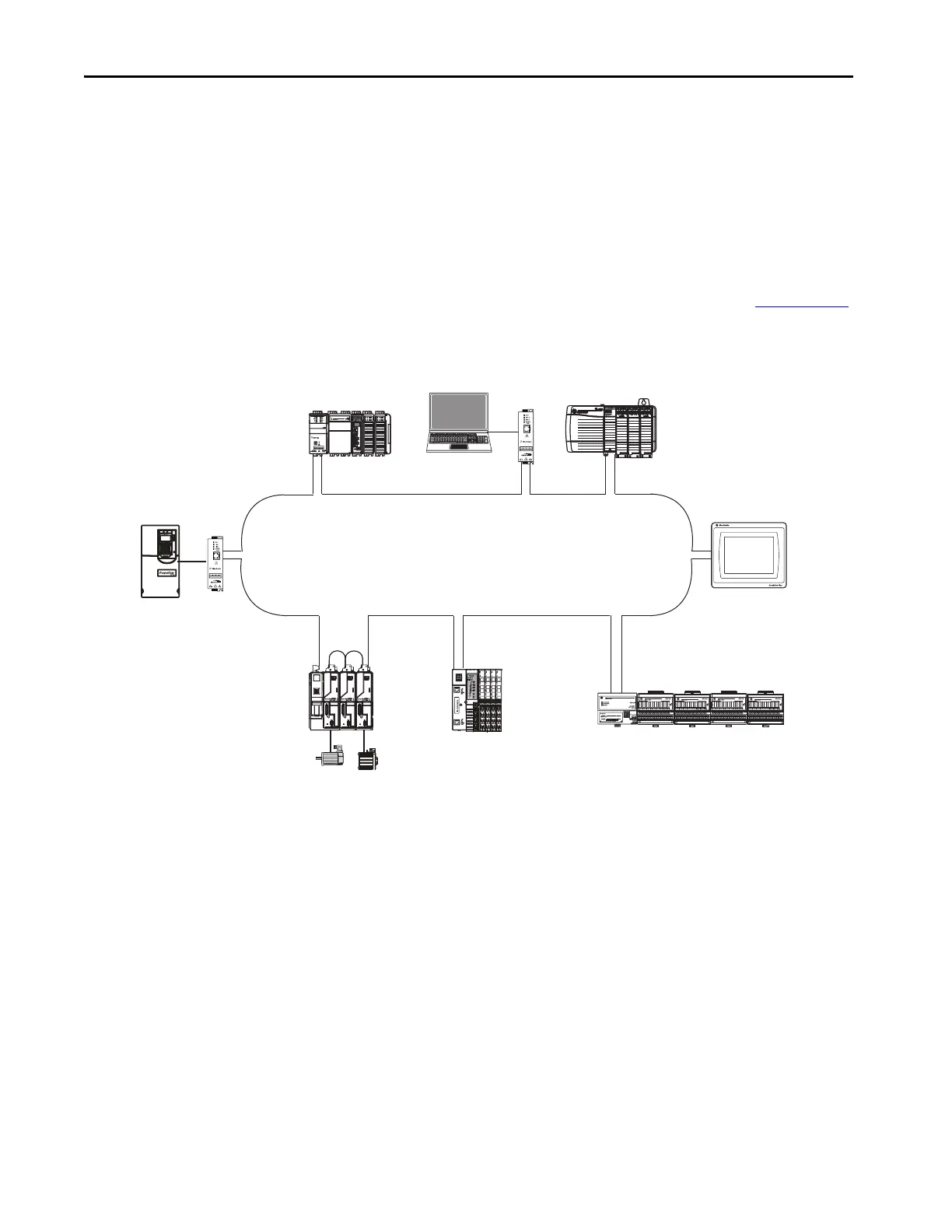

Figure 4 - PanelView Plus 7 Standard Terminal in a DLR Network
Linear Network Topology
A linear network topology is a collection of devices that are daisy-chained
together across an EtherNet/IP network. Devices that can connect to a linear
network topology use embedded switch technology to eliminate the need for a
separate switch, as required in Star network topologies.
1794-AENTR FLEX™ I/O Adapter
with FLEX I/O Modules
1734-AENTR POINT I/O™ Adapter
with POINT I/O Modules
Kinetix® 6500 Drives
with Motors
PowerFlex® 755 Drive Connected
Via a 1783-ETAP EtherNet/IP Tap
1769-L18ERM-BB1B Control System
Computer Connected Via a
1783-ETAP EtherNet/IP Tap
1756-ControlLogix Controller
PanelView Plus 7 Standard
Terminal Connected Via Two
Ethernet Ports
TIP The PanelView Plus 7 Standard terminal with one Ethernet port can be
attached only at the ends of the linear network.
