AMC KX Series User Manual

24
www.amcelettronica.com
KX series v.1.70

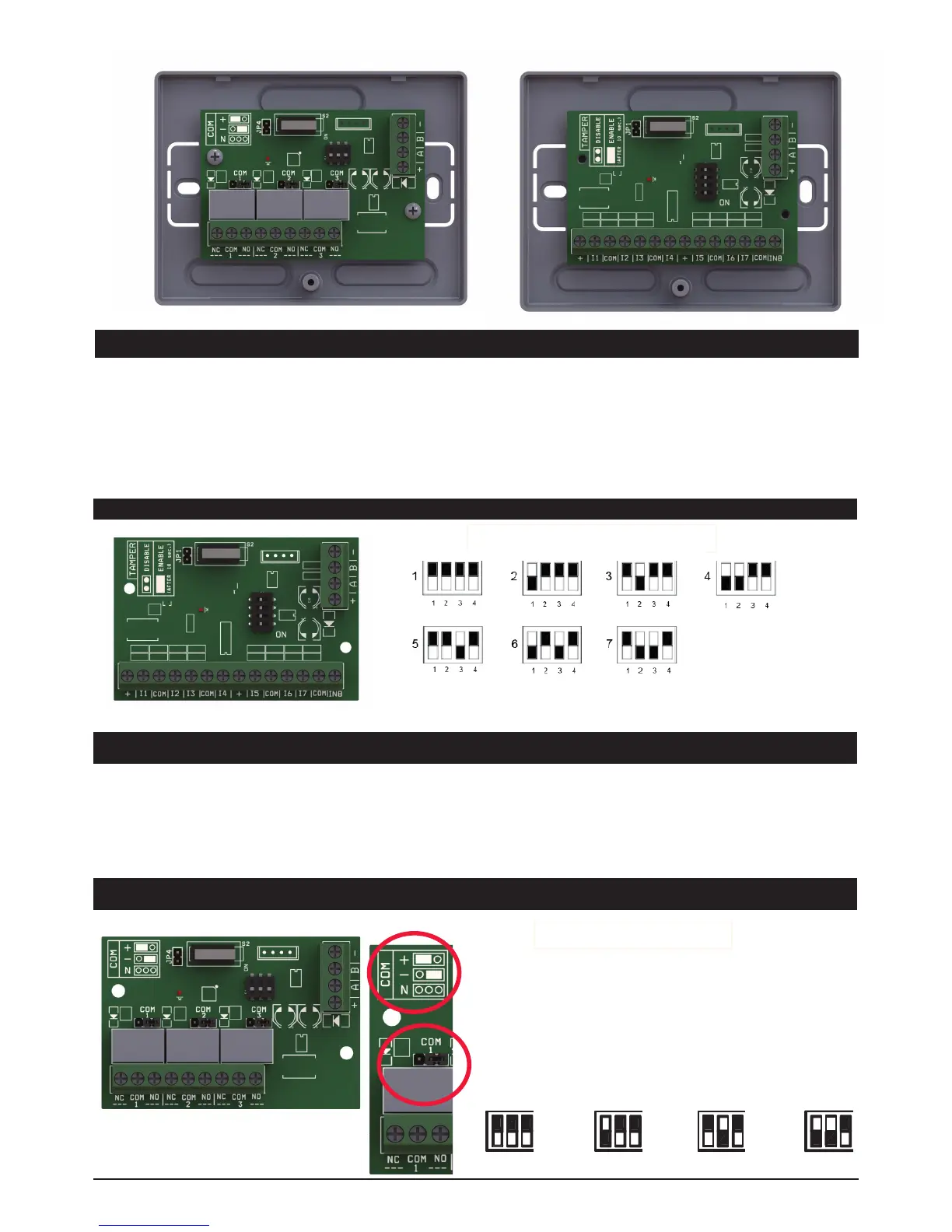

KXin BOARD DESCRIPTION
(+ -) = power supply nominal13.8 Vcc
+ A B - (RS 485) = bus terminals
+ = out terminal 13.8Vcc
I1-I2-I3-I4-I5-I6-I7-I8 = input terminals
COM = negative reference for inputs
JP1 = jumper for enable or disable opening and back tamper
KXin TERMINALS
Note: in CONFIGURATION 1 ALL DIPSWITCHES ARE OFF
DIP-Switch Configuration
Note: in CONFIGURATION 1 ALL DIPSWITCHES ARE OFF
KXout BOARD DESCRIPTION
(+ -) = power supply nominal13.8 Vcc
+ A B - (RS 485) = bus terminals
1 - 2 - 3 ( NC COM NO) = free realay contact
JP4 = jumper for enable or disable opening and back tamper
jumpers COM 1-2-3 =COM terminal reference
KXout TERMINALS
Jumper COM: right part: positive reference
Jumper COM: left part: negative reference
DIP-Switch Configuration
1
4
7
*
2
5
8
0
3
6
9
#
CANC
IMPIANTO
MEMORIA
CONTROLLO
+1 2V
Vdc
1
-
2
A
3
B
4
D E F
6 7
0 A
2 3
8
B
4
Configurazione DIP-SWITCH
DIP-SWITCH
C
5
9
1
