81
www
.amcelettronica.com
KX series v
.1.70
troubles
and st
a
tus info

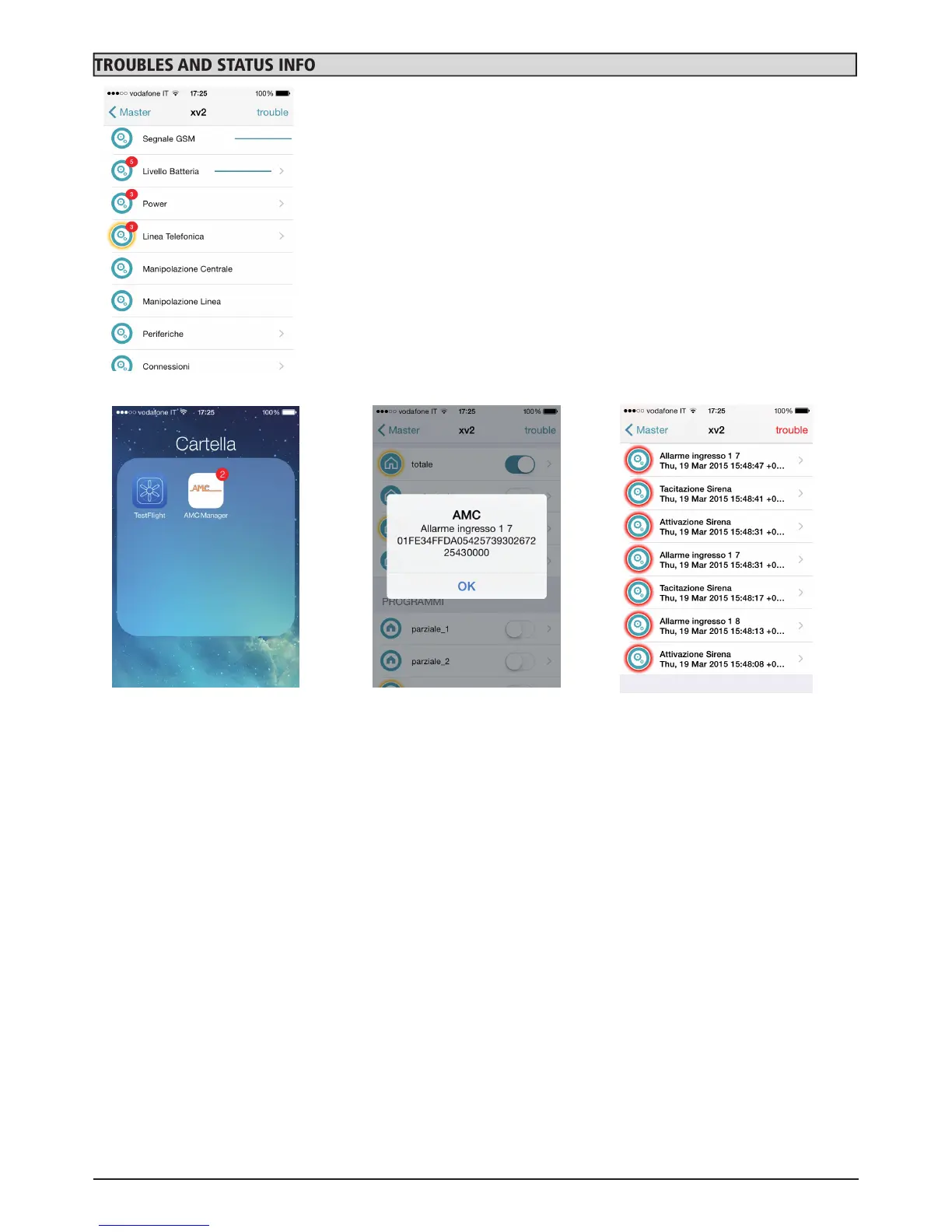

In figure it is possible to see the status of panel:
- back up battery
- main power
- all type of
T
amper
- gsm signal
- PSTN line status
- peripheral status
- connection cables
- wireless trouble
In case of
alarm it is
possible receive notification
with push technology
(save battery life)
In figure it
is possible to see
events and
notification.
80
82
