Wireless MeNU: eXpr reset
Each receiver module has the possibility of being reset through its own menu. When the reset is activated all memorised devices
and all associations linked to it are deleted.
It is possible check in the real time the radio disturbance percentage near the receivers. In the figure below you can see 2 different
disturbance thresholds in 2 receivers.
note: the radio disturbance notification is done by the control unit when the threshold exceeds 50% for more than 5 seconds.
- Link button of keyfob to the Outs
it is possible link one or more buttons of keyfob to the 1 out
(function shortcut) and it is possible change the function of but-
ton: DISABLED, ON, OFF, and ON/OFF (ON/OFF = 1 pression

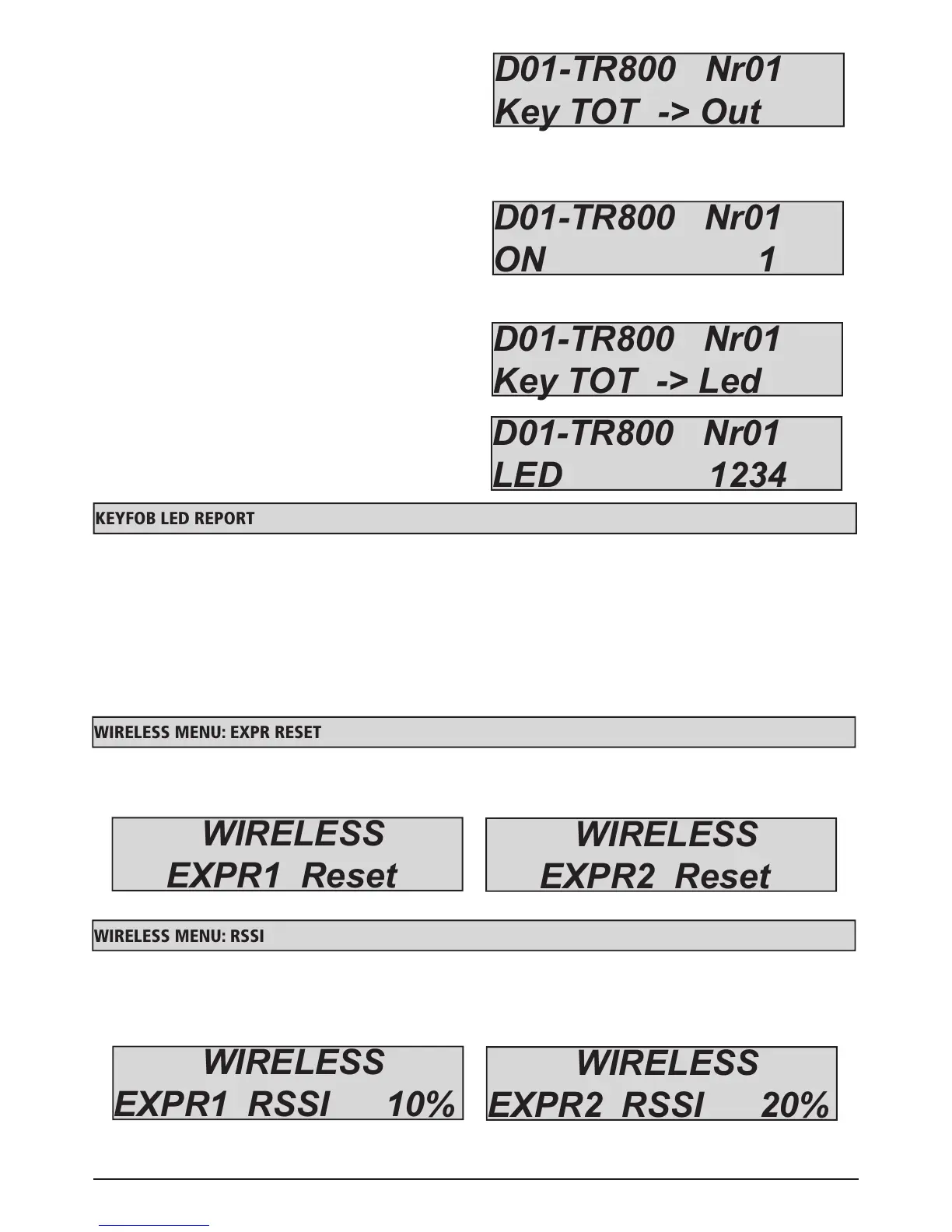

ON -> another pression OFF) In this LCD mask PRESS ENTER TO
MODIFY. It is possible modify these parameters for all buttons.
In figure is shown that the Key TOT button is programmed like
only ON and are linked the output 1.
IMPORTANT: the oput must be programmed like shortcut func.
- SETTING OF LED KEYFOB
it is possible program the led combination of keyfob in function
of the type of button pressed. For eg. if you want that all 4 led
flash when is pressed TOT button, link all 4 led to the TOT button.
In figure is shown the TOT button of keyfob with linked 4 led.
D01-TR800 Nr01
Key TOT -> Out
D01-TR800 Nr01
Key TOT -> Led
After programming, when some button is pressed the keyfob report the status of command:
- 3 flash of programmed led means that the operation is a ON of the programmed thing (ARM, or output ON)
- 1 long flash of prgrammed led, means that the opartion is a OFFof the èrogrammed thing (disarm or output OFF)
- the sequence of led from right to left is the answer from panel
In case of sequence, but nothing action (only 1 little falsh by 1 led) means that the operation can not excute (eg. zones not ready)
The info button (in the middle) normally is used for have info about the status of panel (armed/disarmed) if is in the range of wire-
less, the keyfob ask to the panel and show the staus, by using the led report. In case the keyfob is out range, report the status that
was meorized during the last operation.
