30
www.amcelettronica.com
KX series v.1.70
CONNECTIONS - ZONE TERMINALS
The control unit has 4/8 zones (from Z1 to Z8) that can be connected using various methods, NC - NA - single BALANCING - double
BALANCING and TRIPLE BALANCED, or with split zone (only K series).
With split zone (only for K series) it is possible to have different zone, 2 or 3 separate zone directely on 1 terminal. For EOL resistor
it is possible to select different value, with different combination.

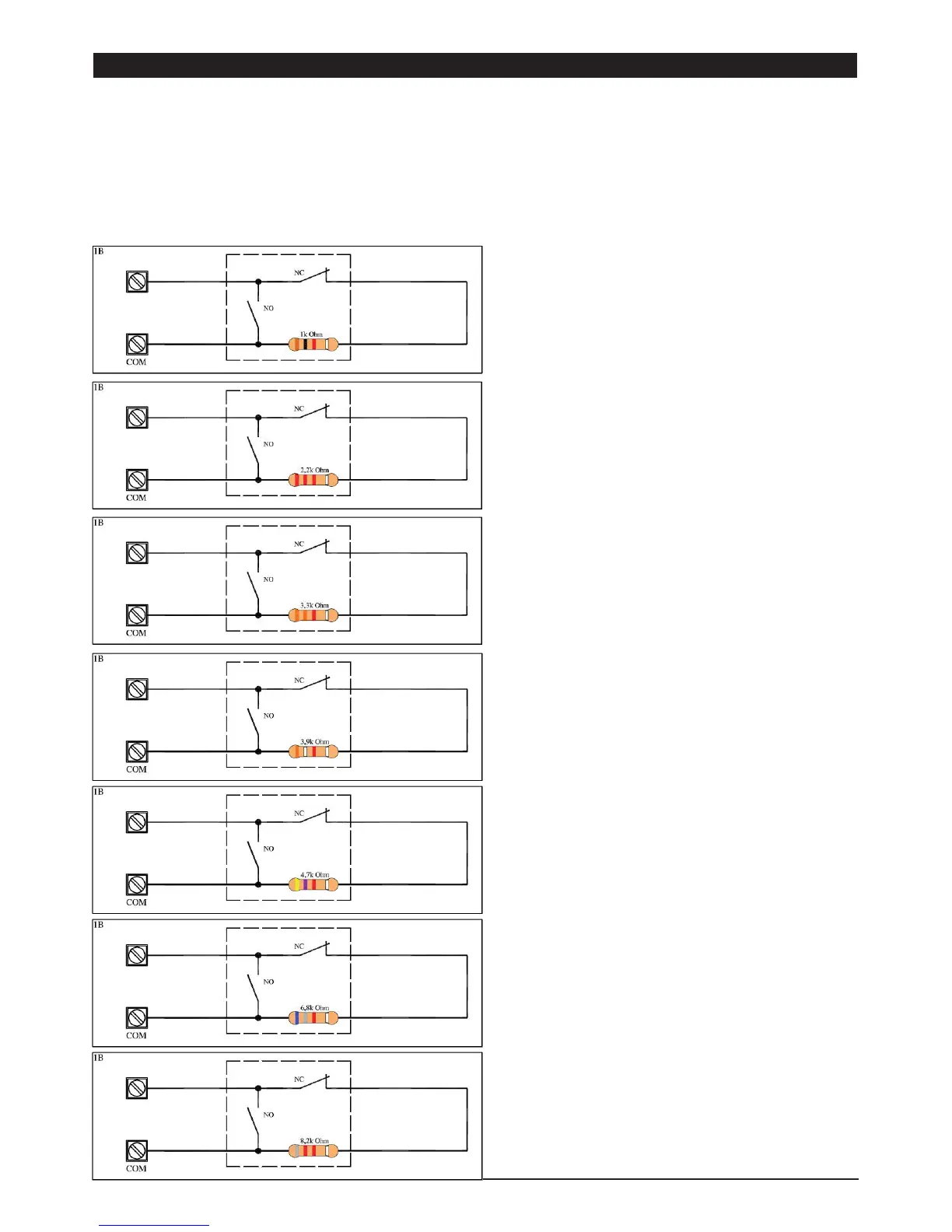

The following is the diagram for connecting the zone inputs:
1 EOL resistor, with selectable resistor values: not certified EN 50131
