KX series v.1.70

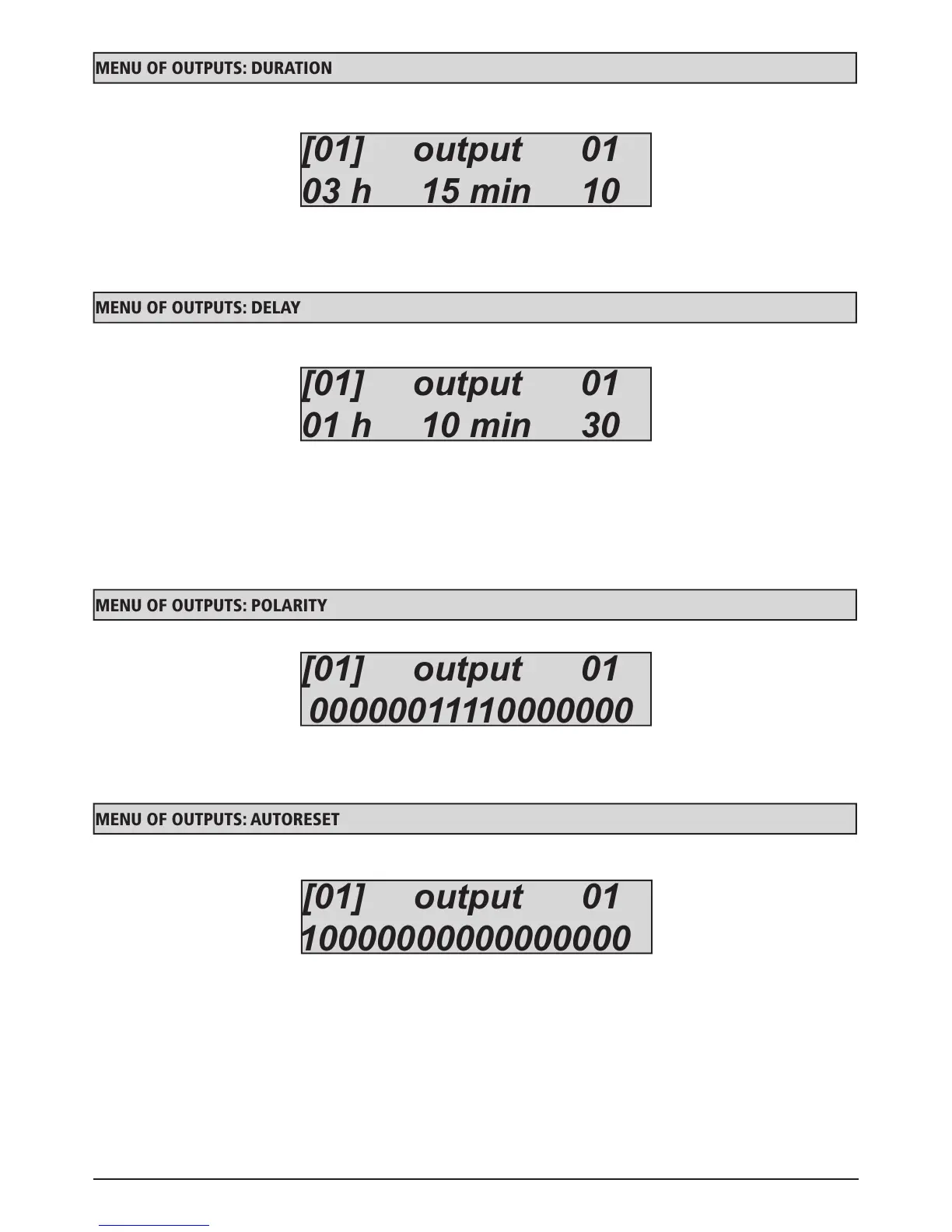

MENU of oUtpUts: dUratioN

A duration can be set for each output. The output with a duration of 0 is the stable type and therefore only activates with a pro-

grammed event or deactivates when it re-enters. If a duration time is set, the output will become by pulse. The pulse duration is set

by this parameter.

In the figure, output 01 has a duration of 3 hours and 15 minutes and 10 seconds. The maximum time that can be set is 17 hours,

59 minutes and 59 seconds. To set it from the keypad, go to the duration menu. When the cursors for the hour, or rather the minutes

or seconds flash, after pressing ENTER, use the keypad to set the times and confirm.

MENU of oUtpUts: dElay

Each output associated to a given event is activated as soon as the event itself occurs. Activation can be delayed by a time you can

set. When the delay time is 0, activation is instantaneous.

In the figure, output 01 has a delay of 1 hour, 10 minutes and 30 seconds, therefore, when an event occurs, the output will activate

after that amount of time. The maximum time that can be set is 17 hours, 59 minutes and 59 seconds.

To set it from the keypad, go to the duration menu. When the cursors for the hour, or rather the minutes or seconds flash, after

pressing ENTER, use the keypad to set the times and confirm.

Note: A delayed activation may be reset or not based on the reset of the event that occurred. If we set a delayed output at 1 hour

for no power and it comes back on before the hour is up, we can choose what to do, either not activate it or activated it after the

set time (see autoreset parameter).

MENU of oUtpUts: polarity

The polarity can be set for each output. Being Open Collector type outputs, when they are deactivated that means they are not

closed negative.

The figure shows that some outputs are N.A. (symbol 0) and some are N.C. (symbol 1).

Note: Output 2 is the only one with a free exchange relay.

MENU of oUtpUts: aUtorEsEt

This parameter must only be used for delayed outputs. The autoreset function resets the activation of a delayed output if before the

activated, the triggering event is reset (also see delayed outputs)

[01] output 01

03 h 15 min 10

[01] output 01

01 h 10 min 30

[01] output 01

00000011110000000

The figure shows how output 1 is configured as auto reset.

Ex. 1 O1 with NO 220ac function with a 1 hour delay - the 220Vac power returns within a half hour and the output interrupts the

delay and stops the activation process.

Ex. 2 O2 with NO 220ac function with a 1 hour delay - the 220Vac power returns within a half hour and the output does NOT

interrupt the delay BUT CONTINUES the activation process. AFTER AN HOUR IT IS ACTIVATED.

[01] output 01

10000000000000000
