27
www
.amcelettronica.com
KX series v
.1.70
XGPRS MODULE
XGPRS is
the module for
connect the panel
in to the
web for
AMC Cloud (smartphone
app managing),
and
for sending monitoring
station data with a GSM data SIM.
Is plugged directely on the main board of panel in SOCKET EXP
,
or on the IP1 sock
et lik
e a backup for IP1 board.
When the XGPRS is plugged it is possoble choose the priority of message sending (see manual below)
INST
ALLA
TION ON P
ANEL

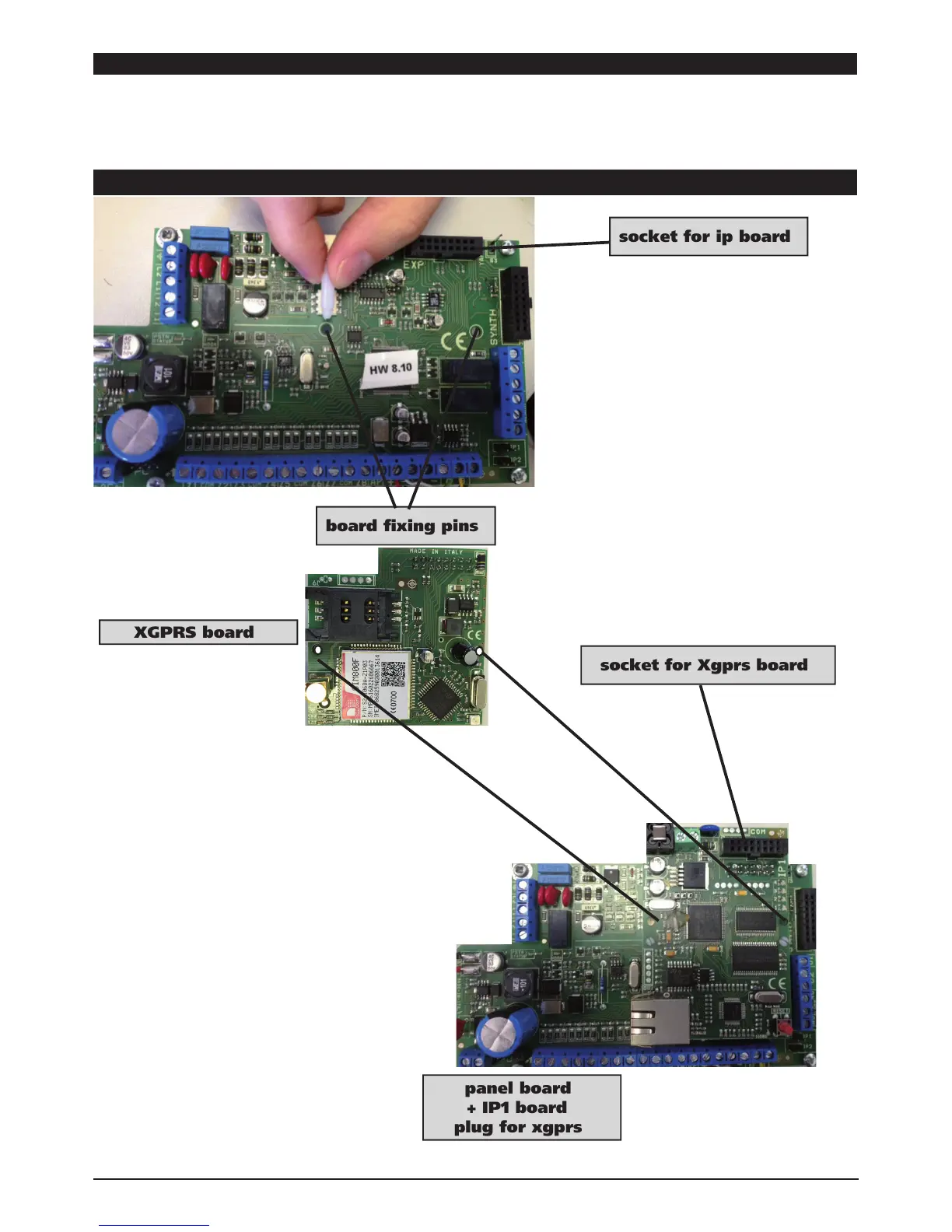

socket for ip boar
d
boar
d fixing pins
XGPRS boar
d
panel boar
d
+ IP1 boar
d
plug for xgprs
socket for Xgprs boar
d
26
28
