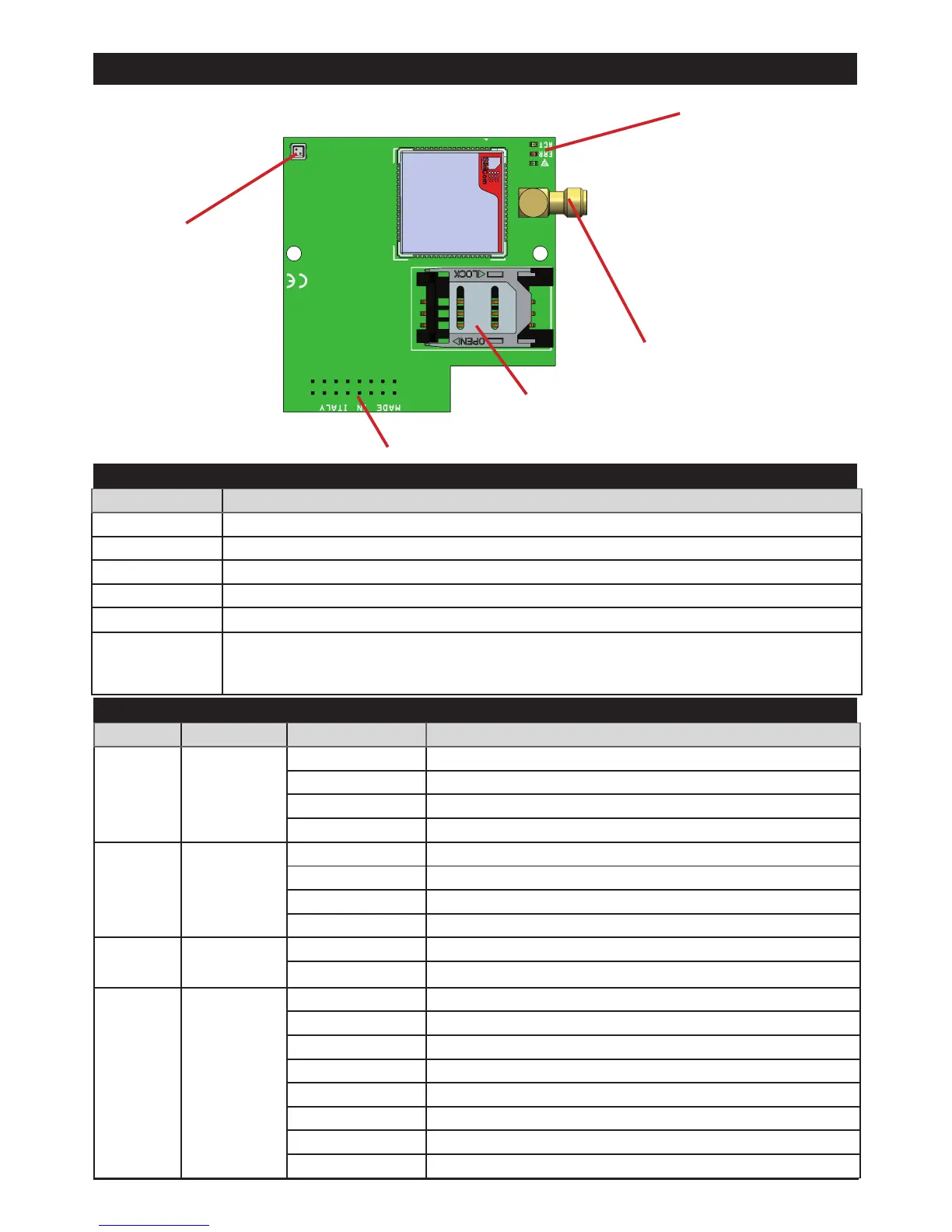

IP1 BOARD DESCRIPTION
connection socket
SIM housing
Antenna connector
GSM status led
GPRS status
multicolor led
SPECIFICATIONS XGPRS BOARD
SPECIFICATIONS
XGPRS board
Power supply: Vnom. :13,8Vcc
StandbyCurrent: 50mA @ Vnom.
Max Current Imax: 380mA
Mobile engine: SIM800F Quad-Band 850/900/1800/1900MHz, GPRS multi-slot class 12/10,GPRS mobile station class B
GSM Compliant to GSM phase 2/2+
Classification ATS3/SP3 refered to EN 50136-2:2013 (
to ensure the classification SP3 the periodic test call must be pro-
grammed for work every 30’ minutes, or for have classification SP2, the periodic test call can be program-
med for work every 25h)
LED
function action description
green signal
1 blink Low
2 blink sufficient
3 blink good
4 blink excellent
yellow
module
activity
OFF Not Ready
ON Ready
slow blink 1sec. outgoing call or SMS
fast Blink 100ms Ingoing Call
red inizializazion
OFF operating coorect
ON inizialization error
multicolor
GPRS
Status
OFF not used
Steady green ready
green flash (4’’) in use on Cloud
blink green 100ms data sending
1sec. green blink data receiving
blink orange 100ms in connection
blink orange 1sec. Cloud comunication for connect
red steady on Error initializzation
