63
www.amcelettronica.com
KX series v.1.70
ARMING LOCK MENU
System activation is blocked by several situations that can compromise security. These situations are, in particular:
- no main power (no 230Vac)
- Low batteries in the control unit
- Anti-opening protection activated (tamper)
- manipulation protection activated (Tamper line)
-Tamper peripheral protection (radio, wired, ext.)
- Comunication failed with one or more peripherals connected to the bus
- No GSM network
- interconnection fail (peripheral problems on th bus)
- wireless lost life test
- Fail of PSTN telephone line
These blocks can be momentarily disabled to perform tests or other operations.
Note: Installations without these blocks are to be considered not in compliance with E 50131-1 and EN 50131-3 certifications.

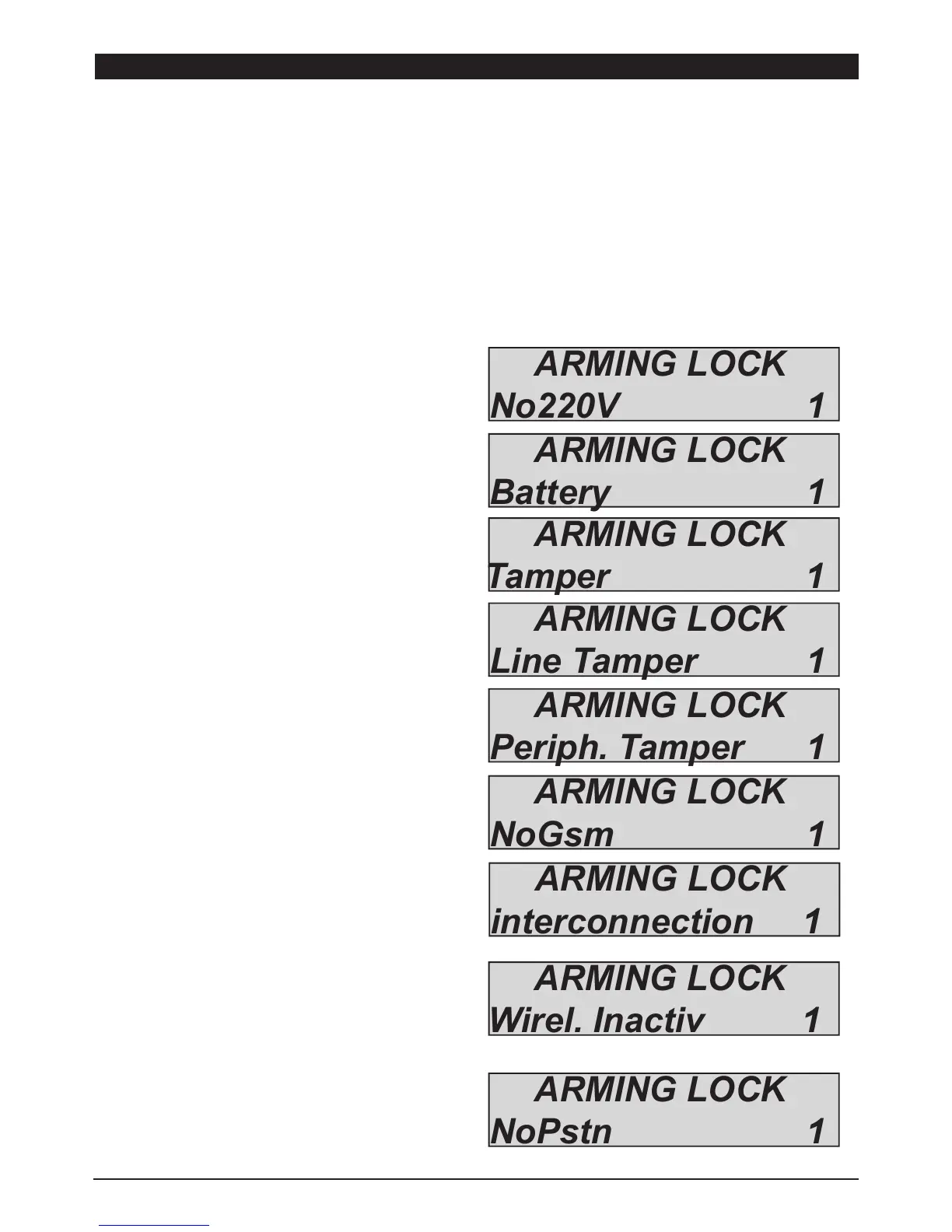

In the figures the parameters can be changed to stop the system
arming block.
0 = unlocked
1 = locked
