CHAPTER 4: CONFIGURATION
4.9 CONFIGURATION OF SDI
This section will help you to configure the matrix for the use of SDI. Using SDI requires at least one I/O board and appropriate SFP
modules according to the SDI video signal to be used.
OSD
OSD
 Select Configuration > EXT Units in the main menu.

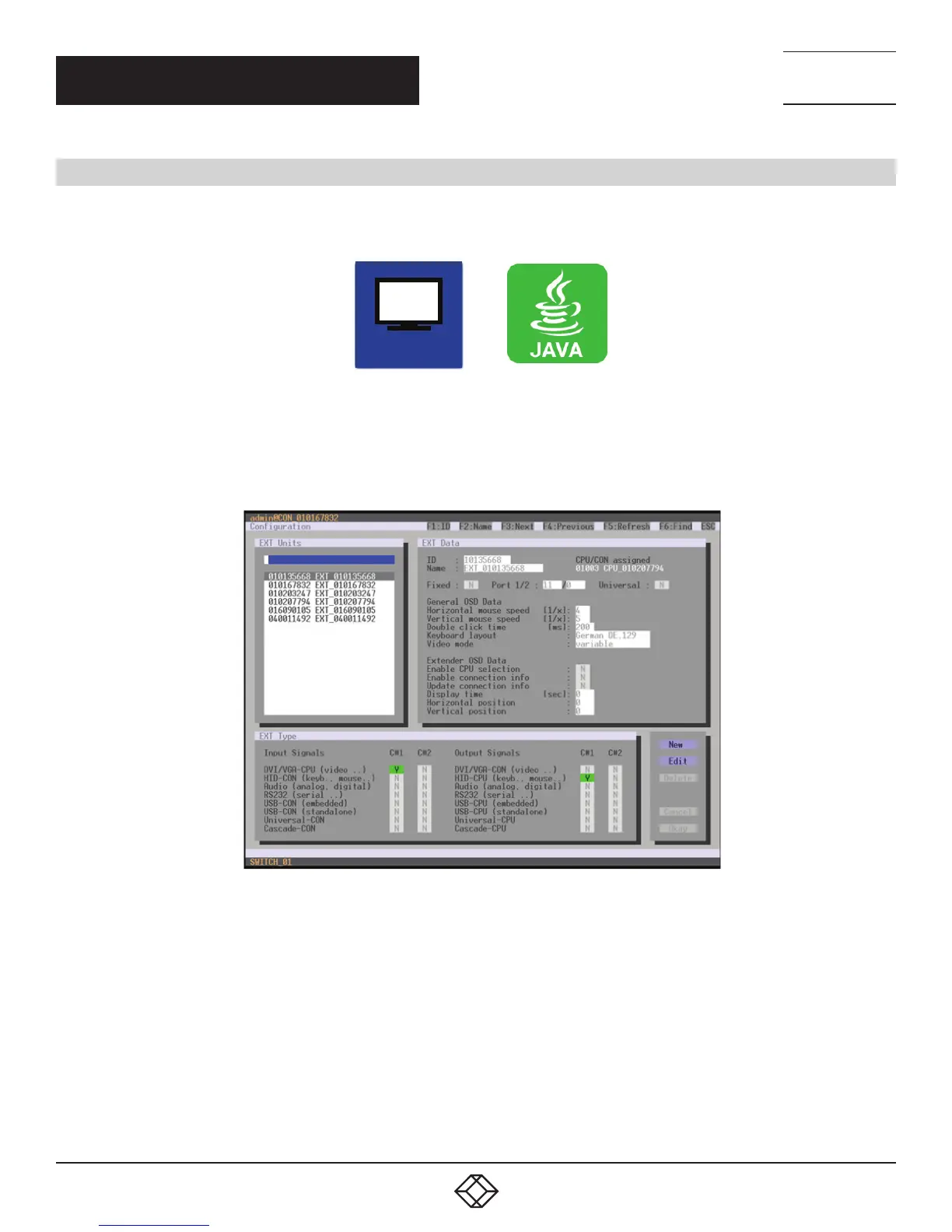

FIGURE 4-35. CONFIGURATION—EXT UNITS
1. Insert the SFP modules into the matrix. One extender will be created for each SFP module in the EXT Units list. The appropriate
names always start with “UNI.”
2. To configure an SDI input, select one of the extenders in the EXT Units list that corresponds to the respective SFP and is
intended to be used as input.
3. Edit the extender by setting the Universal-CPU option in the Output Signals field to Y for C#1. Set also the Universal-CON option
in the Input Signals field to N for C#1.
4. To configure an SDI output, select one of the extenders in the EXT Units list that corresponds to the respective SFP
and is intended to be used as output.
5. Edit the extender by setting the Universal-CON option in the Input Signals field to Y for C#1. Set also the Universal-CPU option
in the Output Signals field to N for C#1.
