CHAPTER 4: CONFIGURATION
4.12.3 LOADING CONFIGURATION (INTERNAL)
Previously saved configurations are loaded in this menu.
You have the following options to load configurations from files.
OSD
In Active, the currently loaded configuration is displayed.
In addition to the default configuration, up to eight further configurations can be loaded.
The selection of the configuration to be loaded can be made between eight personalizable configurations and the default settings.
The selected configuration is immediately loaded and displayed in the menu as Active. The previously active configuration is
deleted.
OSD
1. Select Configuration > Open in the main menu.
2. Select the desired configuration.
3. Load the configuration by pressing <Enter>.

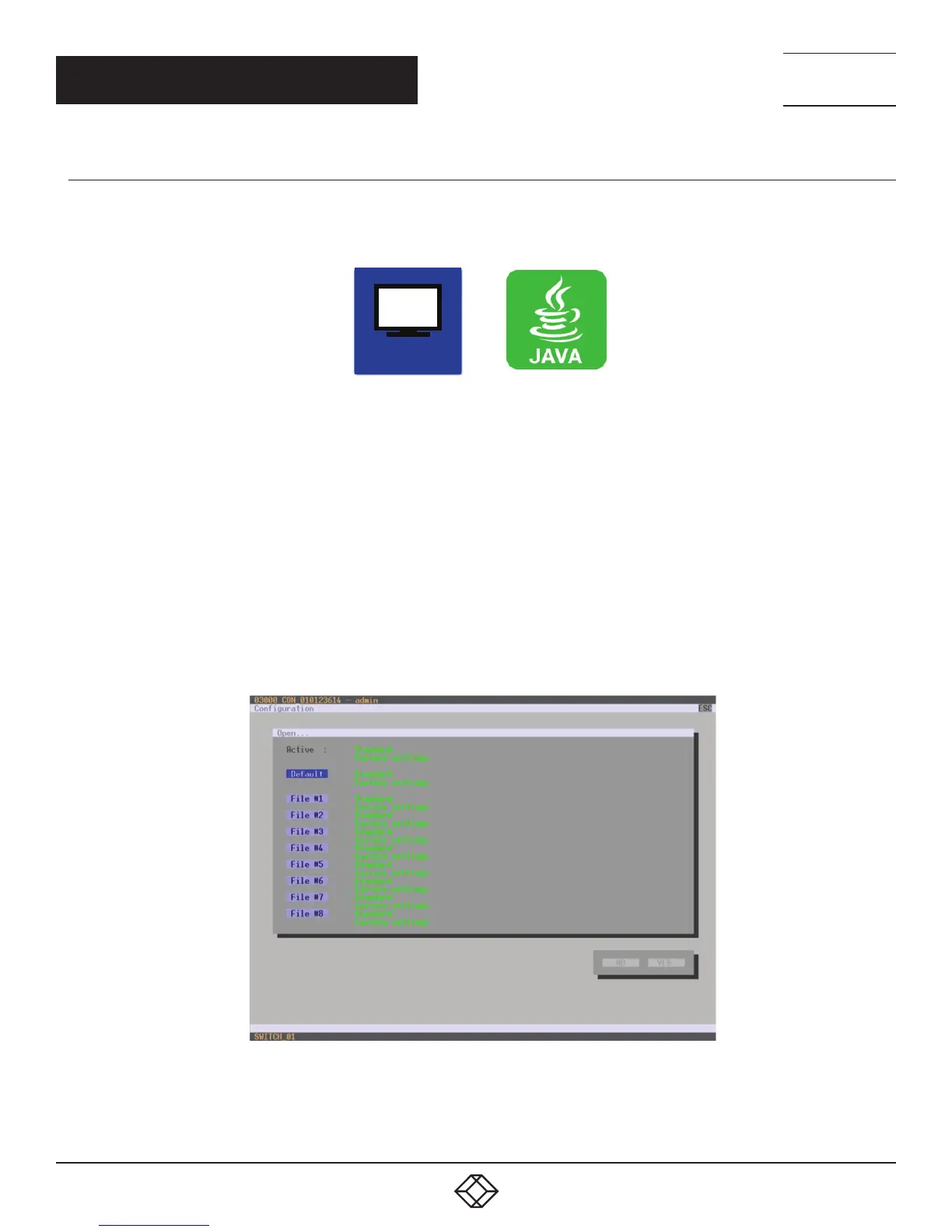

FIGURE 4-55. CONFIGURATION—OPEN
