Black Box ServSwitch DKM FX User Manual

12
1.8 7 7. 8 7 7. 2 2 69 BLACKBOX.COM
NEED HELP?
LE AVE THE TECH TO US
LIVE 24/7
TECHNICAL
SUPPORT
1.8 7 7.8 7 7.2269

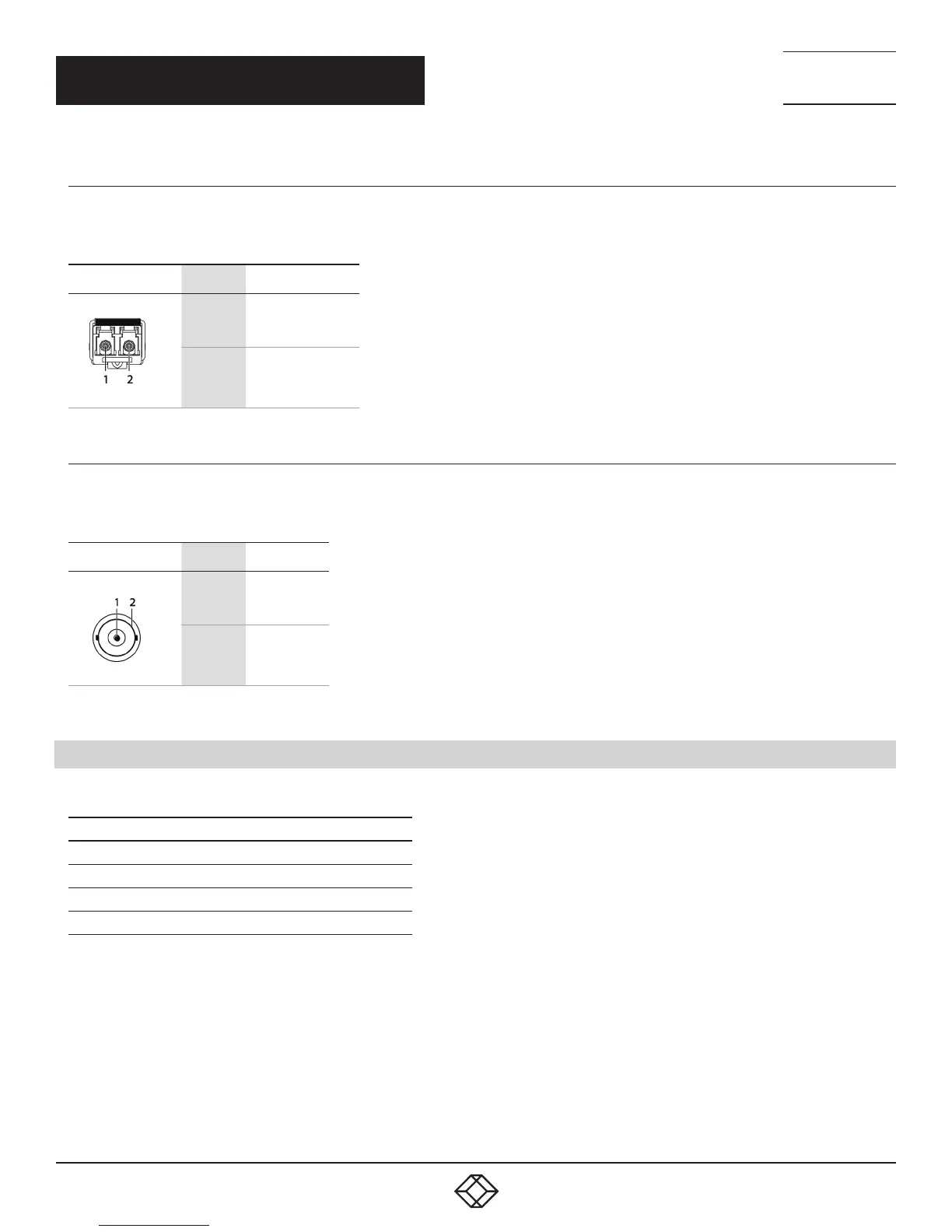

CHAPTER 1: SPECIFICATIONS
1.3.3 I/O PORT SFP
TABLE 1-14. FIBER SFP TYPE LC
PICTURE DIODE SIGNAL
1 Data OUT
2
Data IN-
1.3.4 I/O PORT SDI
TABLE 1-15. MINI BNC (SDI)
PICTURE PIN SIGNAL
1 Data IN
2
GND
1.4 POWER SUPPLY
TABLE 1-16. MAXIMUM CURRENT/VOLTAGE
PRODUCT CODE MAX. CURRENT/VOLTAGE
ACX576, ACX576S 20 A, 100-240 VAC, 50/60 Hz
ACX288 12 A, 100-240 VAC, 50/60 Hz
ACX160 9 A, 100-240 VAC, 50/60 Hz
ACX080, ACX048 5 A, 100-240 Vac, 50/60 Hz
