CHAPTER 4: CONFIGURATION

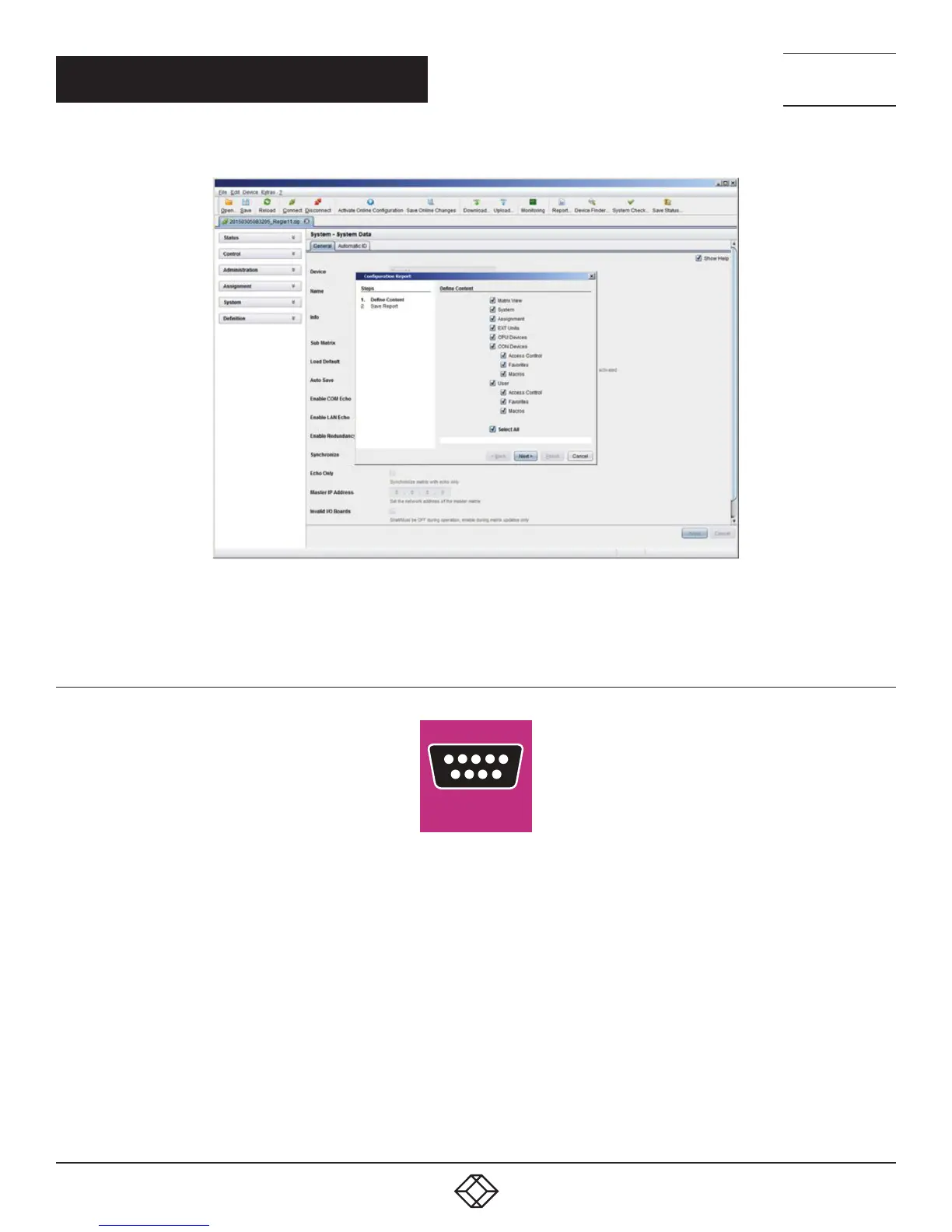

FIGURE 4-6. REPORT
NOTE: The report function can be used in both online or offline mode of the Java Tool.
4.2.3 CONTROL VIA SERIAL INTERFACE
RS232
The Modular KVM Matrix Switch operating system offers various functions for operation via a serial interface. There are telegrams
for switching single or all connections available, both unidirectional and bidirectional. In addition, there are telegrams for an overall
definition of the total switching status and for saving and loading such switching states.
The Modular KVM Matrix Switch optionally provides an echo of all affected switching operations via a serial interface or a network
interface. This aids continuous tracking of a matrix configuration and enables your own applications to be updated.
As an additional application, you can switch matrix clones in parallel as synchronized matrices (Stacking) via a serial network
interface.

Black Box ServSwitch DKM FX Specifications
