CHAPTER 2: OVERVIEW
2.7 DIAGNOSTICS AND STATUS
2.7.1 STATUS LEDS
Modular KVM Matrix Switch components are fitted with the following LEDs for overall status indication.
CPU BOARD

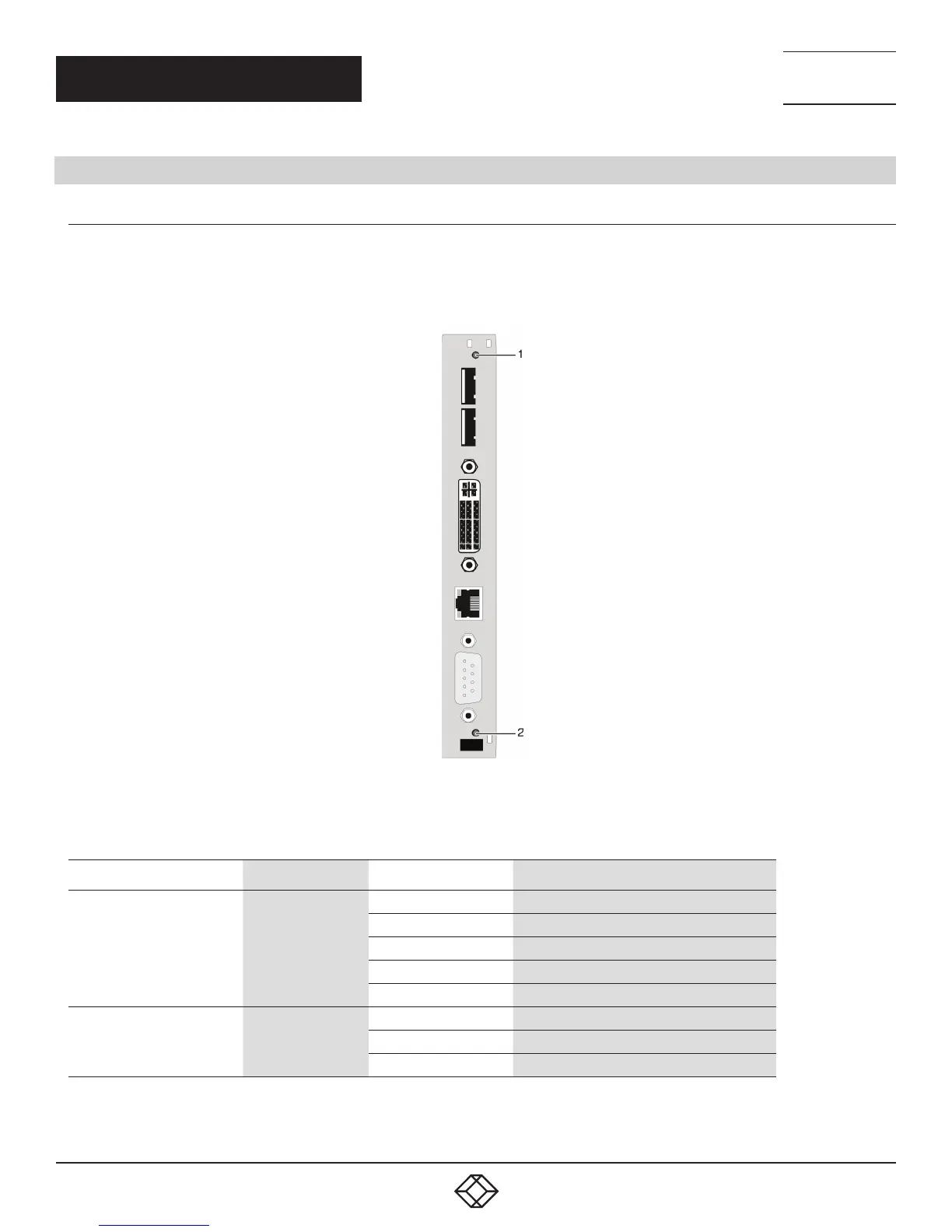

FIGURE 2-7. STATUS LEDS ON CPU BOARD
TABLE 2-10. CPU STATUS LEDS FUNCTIONS
NUMBER IN FIGURE 2-7 LED STATUS DESCRIPTION
1 Status LED 1
White CPU board is in registration process
Blue flashing Registration of the matrix has started
Red flashing Registration in progress
Green flashing Operating condition
Green CPU board de-registered
2 Status LED 2
White CPU board is in registration process
Red flashing Registration of the matrix has started
OFF Operating condition
NOTE: Due to variations in type, “white” might also appear as light purple or light blue.
