CHAPTER 4: CONFIGURATION
NOTE: When the Auto Send function in the left lower corner of the work area is ticked, switching operations will be completed
immediately without user confirmation via the Send button.
The selection boxes in the Real CPU column contain a filter function for easy selection of a single CPU from a larger pool of CPUs
(see Section 4.2.2).
The Java tool offers the option to switch directly from the Assignment menu to the Definition menu to check specific settings
for the respective console or CPU.
 Use the right mouse button to select the respective console or CPU and select Open CON Device or Open CPU Device.
4.3.2 VIRTUAL CONSOLE
You can assign real consoles to virtual consoles in this menu.
This function reflects changes in permission made to virtual consoles onto real consoles.
Virtual consoles can be switched in the same way as real consoles. Real consoles that are assigned to a virtual console
that is connected to a CPU will receive the video signal. The last-assigned console will also have control of the keyboard and mouse.
You have the following options to access the menu:
OSD
OSD
 Select Assignments > Virtual CON Devices in the main menu.

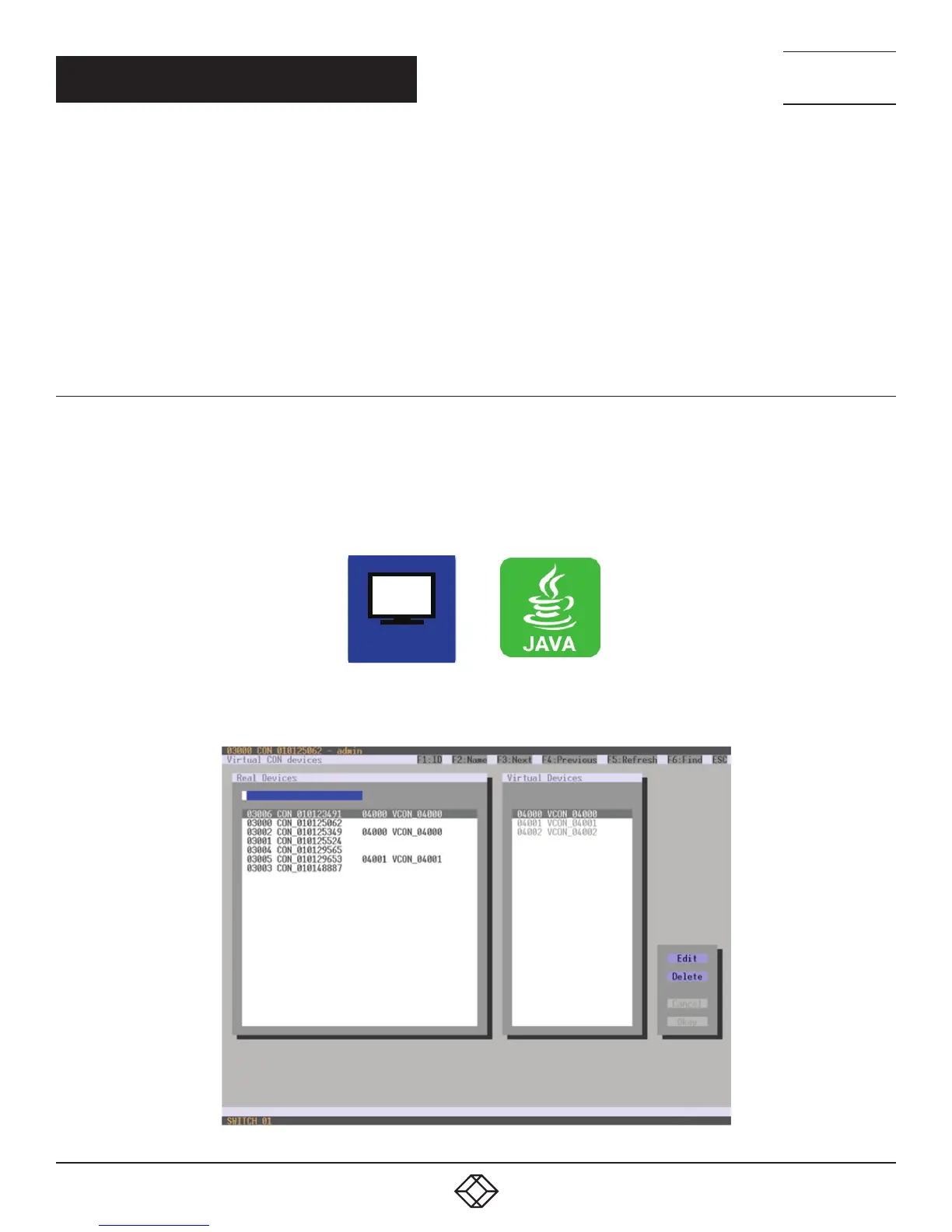

FIGURE 4-9. VIRTUAL CON DEVICES
