CHAPTER 2: OVERVIEW
2.6.3 160-PORT CHASSIS (ACX160)

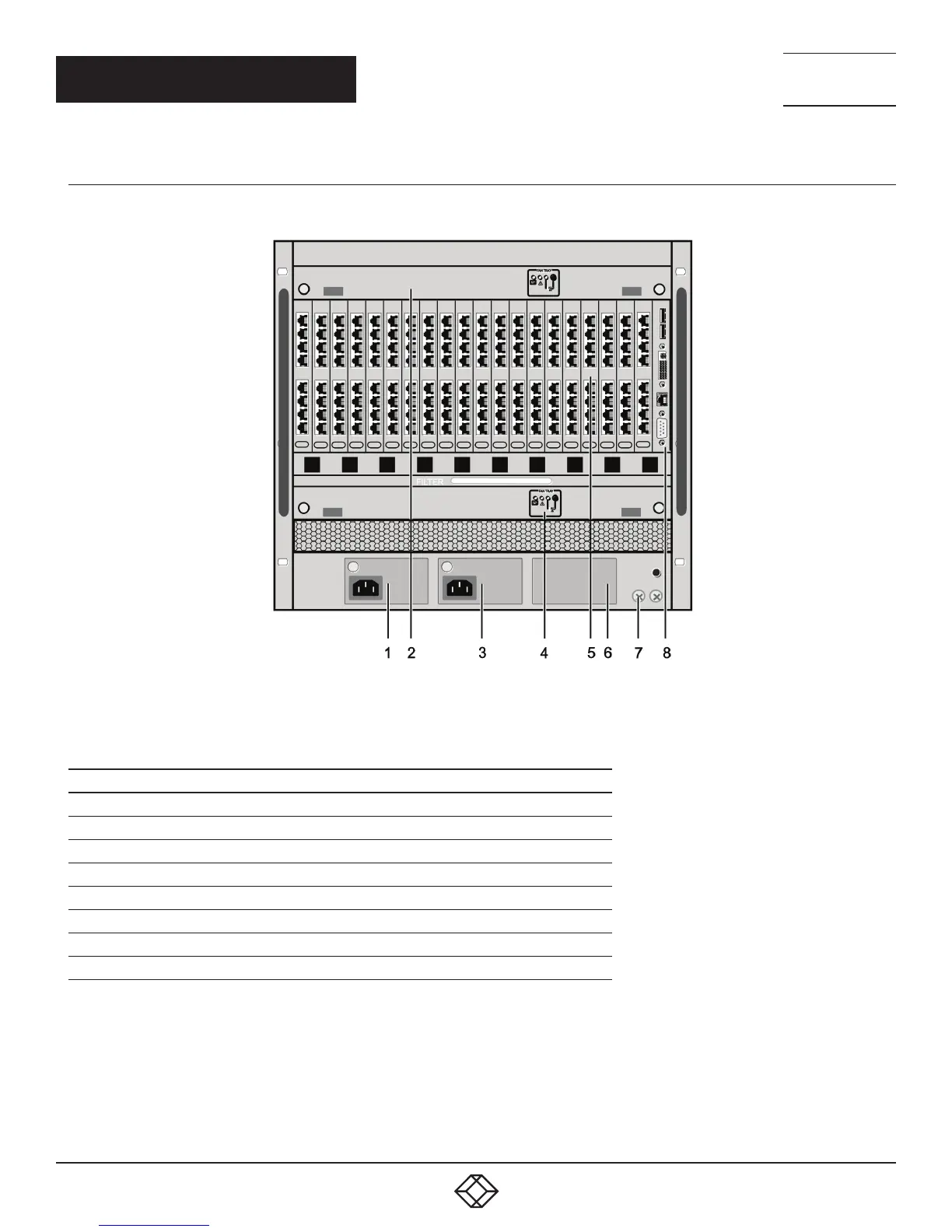

FIGURE 2-4. 160-PORT CHASSIS, FRONT VIEW
TABLE 2-7. 160-PORT CHASSIS FRONT VIEW COMPONENTS
NUMBER IN FIGURE 2-4 COMPONENT
1 Slot for power supply unit 1
2 Slot for fan tray 1
3 Slot for power supply unit 2
4 Slot for fan tray 2
5 Slot for I/O boards #1–20
6 Slot for power supply unit 3
7 Grounding
8 Slot for CPU board
