Before You Start
1
Parts and Their Functions
Parts and Their Functions
This printer consists of components that perform various functions. This section
describes the name and function of each part in order for you to use this printer
properly to make full use of its functions.
Printer Unit
The following are the parts and functions of the printer unit.
CAUTION
Never block the ventilation slots on the printer. The ventilation slots are
provided for proper ventilation of working parts inside the printer. Blocking the
ventilation slots can cause the printer to overheat, resulting in a fire.

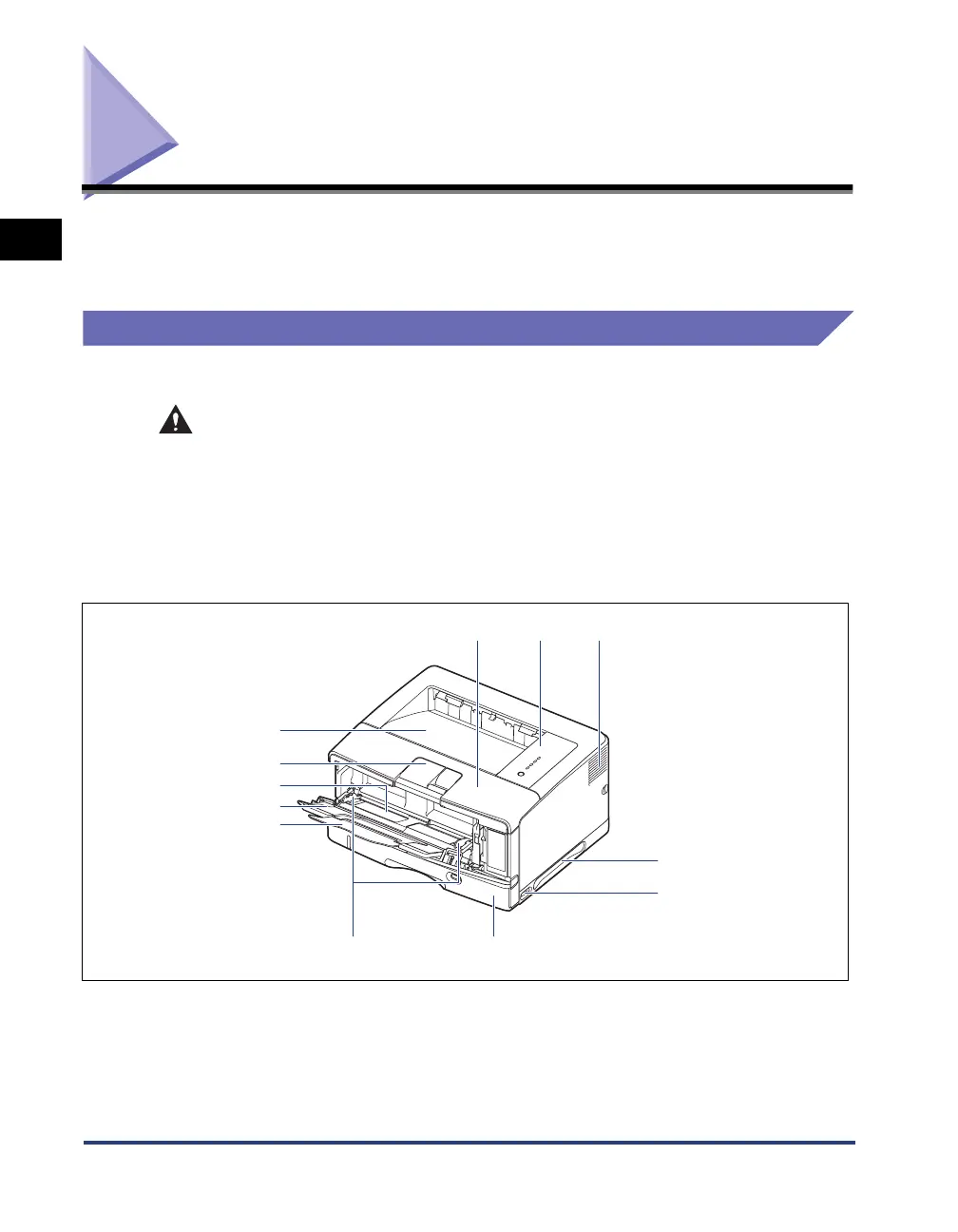

Front View
The following are the parts on the front side of the printer and their functions.
aa
aa
Output Tray
Outputs paper with the printed side facing down.
(See p. 2-17)
bb
bb
Front Cover
Opened when replacing the toner cartridge or
removing jammed paper. (See p. 5-4)
a
l
k
j
i
bcd
e
f
gh

Canon LASER SHOT LBP3500 Specifications

General

Print Technology	Laser
Print Speed	25 ppm (A4)
Connectivity	USB 2.0
Memory	8 MB
Duplex Printing	Manual
Weight	11.2 kg
Paper Capacity	250 sheets
Media Size	A4, Letter, Legal, Executive
Print Resolution	600 x 600 dpi
