Cabling

The figure and table below indicate how the MIO/UMIO Console port connects to an interface module via

the asynchronous RJ45 adapter cable and a Cisco rollover cable or coupler.

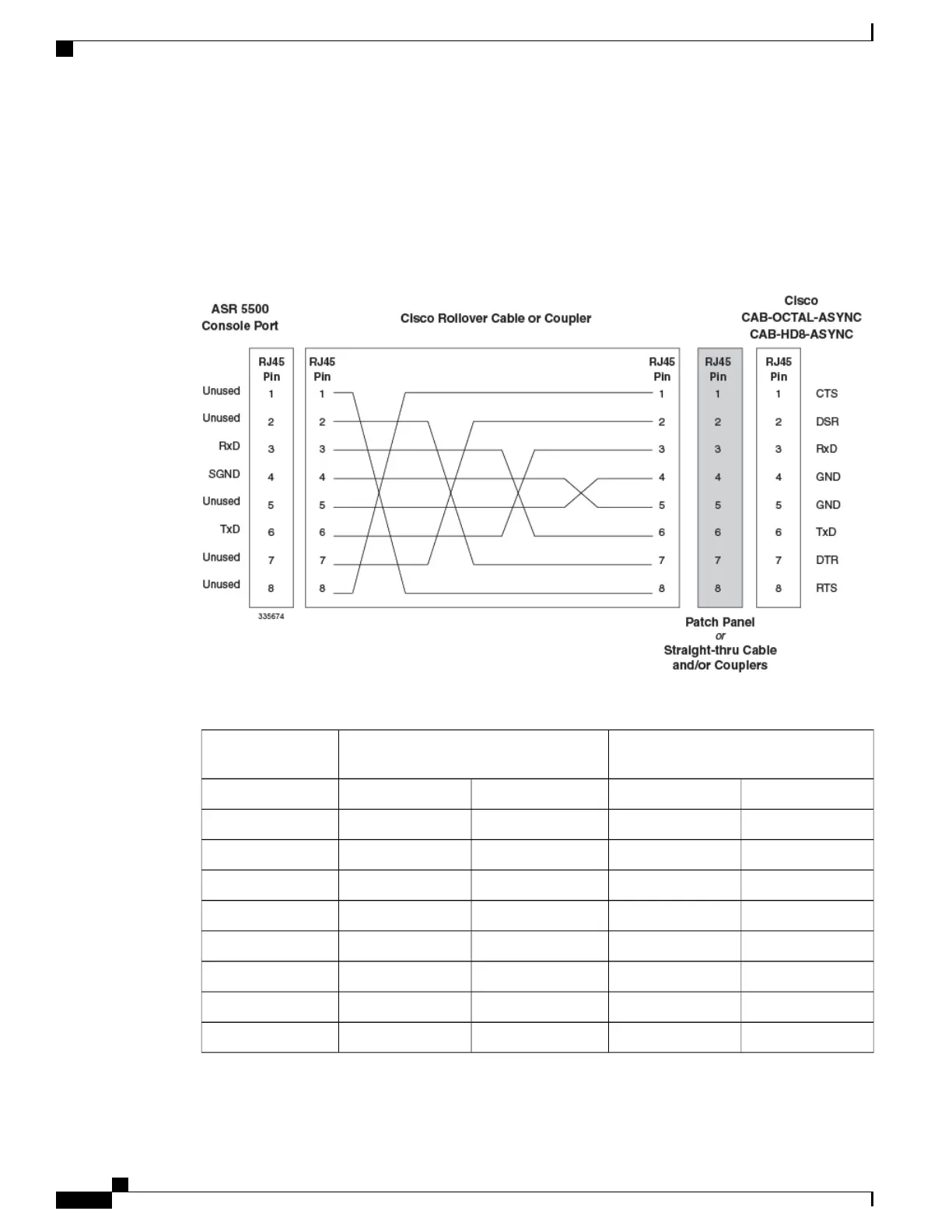

Figure 37: SR 5500 Console to Cisco CAB Assembly Cabling

Table 29: ASR 5500 Console Port to Cisco Terminal Server Pinouts

CAB-OCTAL-ASYNC

CAB-HD8-ASYNC

RJ45-to-RJ45

Rollover Cable/Coupler

Console Port

SignalRJ45 PinRJ45 PinRJ45 PinSignal

RTC881Unused

DTR772Unused

TxD663RxD

GND554SGND

GND445Unused

RxD336TxD

DSR227Unused

CTS118Unused

ASR 5500 Installation Guide

168

Console Port to Cisco Server Cabling

Cabling
