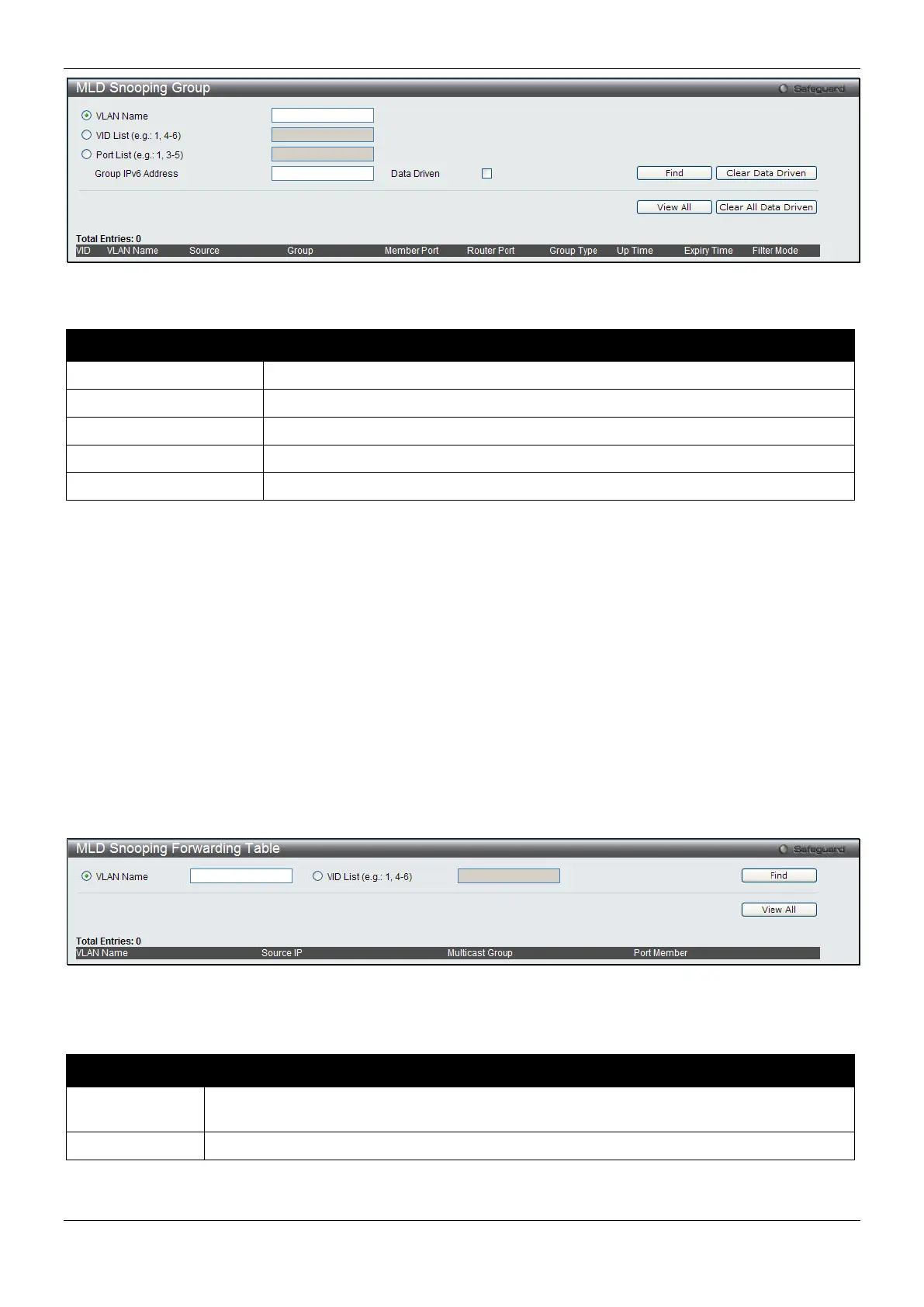

Figure 4-55 MLD Snooping Group window
The fields that can be configured are described below:
Parameter Description
Click the radio button and enter the VLAN name of the multicast group.
Click the radio button and enter a VLAN list of the multicast group.
Specify the port number(s) used to find a multicast group.
Enter the group IPv6 address used here.
If Data Drive is selected, only data driven groups will be displayed.
Click the Find button to locate a specific entry based on the information entered.
Click the Clear Data Driven button to delete the specific MLD snooping group which is learned by the Data Driven
feature of the specified VLAN.
Click the View All button to display all the existing entries.
Click the Clear All Data Driven button to delete all MLD snooping groups which is learned by the Data Driven
feature of specified VLANs.
MLD Snooping Forwarding Table
This page displays the switch’s current MLD snooping forwarding table. It provides an easy way for user to check
the list of ports that the multicast group comes from and specific sources that it will be forwarded to. The packet
comes from the source VLAN. They will be forwarded to the forwarding VLAN.
To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping
Forwarding Table, as show below:
Figure 4-56 MLD Snooping Forwarding Table window
The fields that can be configured are described below:
Parameter Description
VLAN Name
The name of the VLAN for which you want to view MLD snooping forwarding table
The ID of the VLAN for which you want to view MLD snooping forwarding table information.
Click the Find button to locate a specific entry based on the information entered.
Click the View All button to display all the existing entries.
