xStack® DES-3200 Series Layer 2 Managed Fast Ethernet Switch
73
The fields that can be configured are described below:
Parameter Description
Configuration Name
This name uniquely identifies the MSTI (Multiple Spanning Tree Instance). If a
Configuration Name is not set, this field will show the MAC address to the device
Revision Level (0-
This value, along with the Configuration Name, identifies the MSTP region
configured on the Switch.
Enter a number between 1 and 7 to set a new MSTI on the Switch.
Type
This field allows the user to choose a desired method for altering the MSTI settings.
The user has two choices:
Add VID - Select this parameter to add VIDs to the MSTI ID, in conjunction with the
VID List parameter.
Remove VID - Select this parameter to remove VIDs from the MSTI ID, in con-
junction with the VID List parameter.
VID List
This field is used to specify the VID range from configured VLANs set on the
Switch. Supported VIDs on the Switch range from ID number 1 to 4094.
Click the Apply button to accept the changes made for each individual section.
Click the Edit button to re-configure the specific entry.
Click the Delete button to remove the specific entry.
STP Instance Settings
This window displays MSTIs currently set on the Switch and allows users to change the Priority of the MSTIs.
To view the following window, click L2 Features > Spanning Tree > STP Instance Settings, as show below:

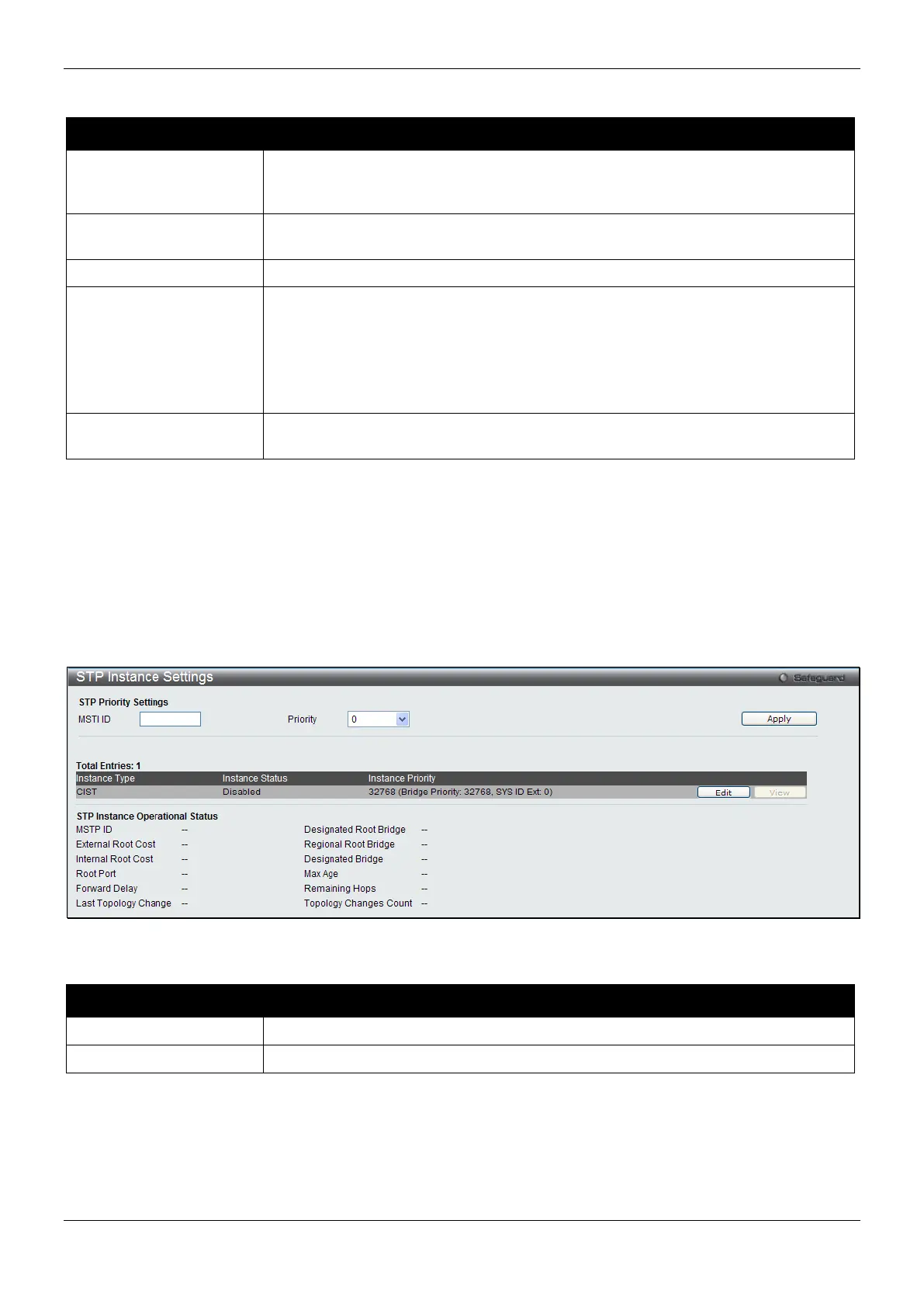

Figure 4-25STP Instance Settings window
The fields that can be configured are described below:
Parameter Description
Enter the MSTI ID in this field. An entry of 0 denotes the CIST (default MSTI).
Enter the priority in this field. The available range of values is from 0 to 61440.
Click the Apply button to accept the changes made.
Click the Edit button to re-configure the specific entry.
Click the View button to display the information of the specific entry.
