FDB
Static FDB Settings
Unicast Static FDB Settings
Users can set up static unicast forwarding on the Switch.
To view the following window, click L2 Features > FDB > Static FDB Settings > Unicast Static FDB Settings, as
show below:

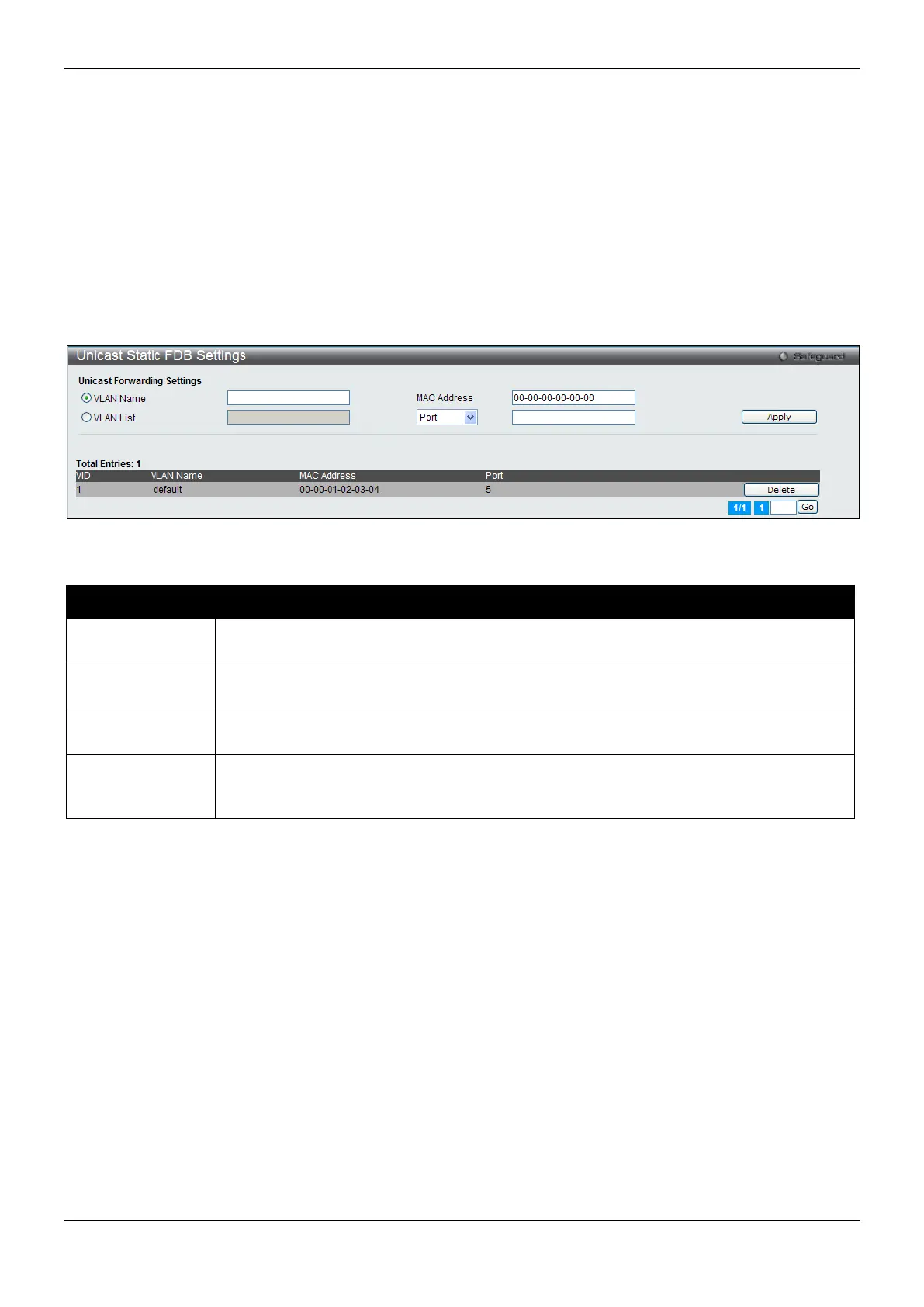

Figure 4-30 Unicast Static FDB Settings window
The fields that can be configured are described below:
Parameter Description
VLAN Name
Click the radio button and enter the VLAN name of the VLAN on which the associated
unicast MAC address resides.
VLAN List
Click the radio button and enter a list of VLAN on which the associated unicast MAC
address resides.
MAC Address
The MAC address to which packets will be statically forwarded. This must be a unicast
MAC address.
Port / Drop
Allows the selection of the port number on which the MAC address entered above resides
This option could also drop the MAC address from the unicast static FDB. When selecting
Port, enter the port number in the field.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Multicast Static FDB Settings
Users can set up static multicast forwarding on the Switch.
To view the following window, click L2 Features > FDB > Static FDB Settings > Multicast Static FDB Settings,
as show below:
